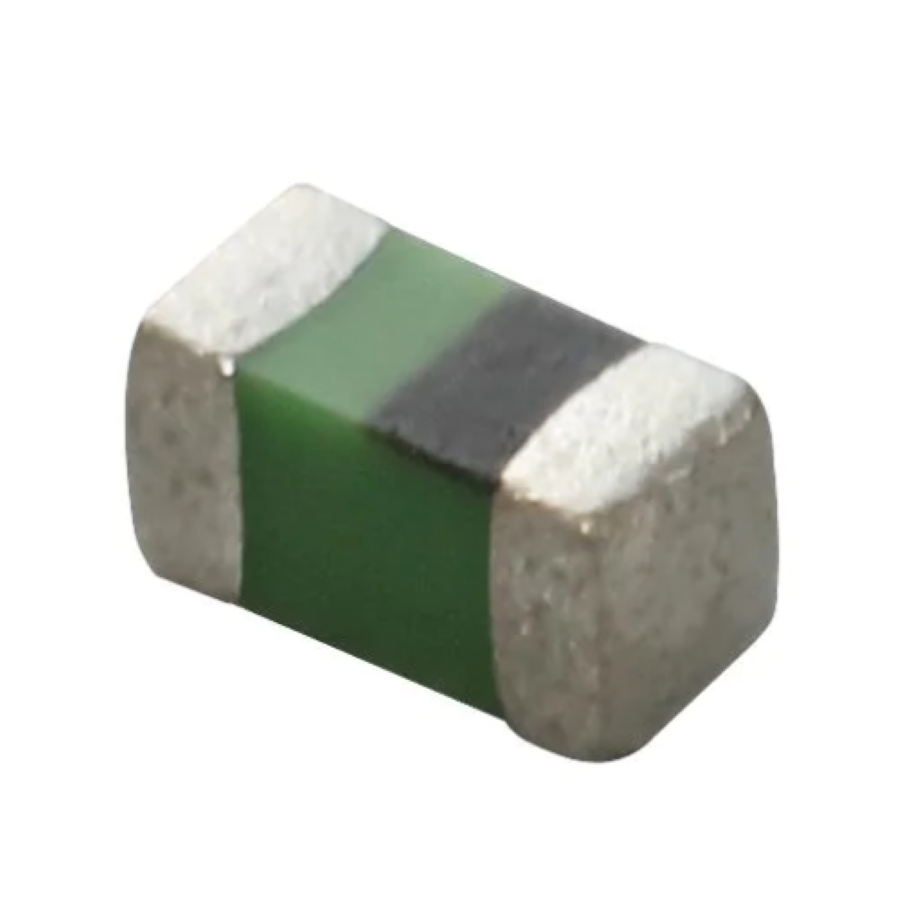

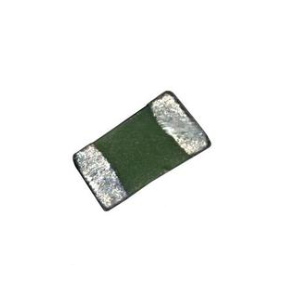

LQG15HS2N2S02D
Manufacturer:
Murata
Mfr.Part #:
LQG15HS2N2S02D
Datasheet:
Description:
Fixed Inductors 0402(1005 Metric) SMD/SMT 2.2 nH 0.3 nH 900 mA 120 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 0.3 nH |
| Height - Seated (Max) | 0.55 mm |
| Length | 1 mm |
| Width | 508 µm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| Height | 500 µm |
| Packaging | Reel |
| Depth | 550 µm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Self Resonant Frequency | 6 GHz |
| Type | Multilayer |
| Q Factor | 8 |
| Current Rating | 900 mA |
| DC Resistance (DCR) | 120 mΩ |
| Test Frequency | 100 MHz |
| Military Standard | Not |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Shielding | Unshielded |
| Inductance | 2.2 nH |
| Core Material | Air |
| RMS Current (Irms) | 900 mA |
| Max DC Current | 300 mA |
| Series Resistance | 90 mΩ |
| DC Current | 300 mA |
| Schedule B | 8504500000 |
| Manufacturer Lifecycle Status | IN PRODUCTION (Last Updated: 1 week ago) |
Stock: 309
Distributors
pcbx
pcbxUnit Price$0.02818
Ext.Price$0.02818
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.02818 | $0.02818 |
| 10 | $0.01409 | $0.14090 |
| 50 | $0.01084 | $0.54200 |
| 100 | $0.00834 | $0.83400 |
| 500 | $0.00753 | $3.76500 |
| 1000 | $0.00679 | $6.79000 |
| 3000 | $0.00598 | $17.94000 |
| 5000 | $0.00541 | $27.05000 |
| 10000 | $0.00490 | $49.00000 |
| 30000 | $0.00467 | $140.10000 |
| 50000 | $0.00446 | $223.00000 |
| 100000 | $0.00416 | $416.00000 |
