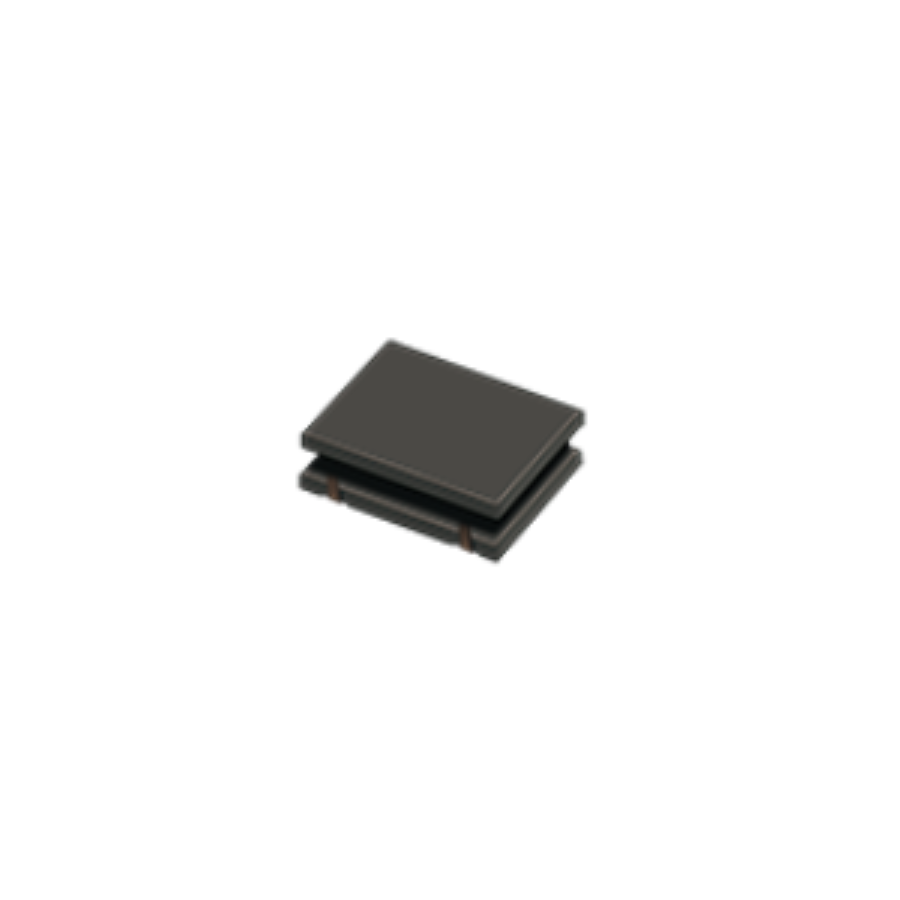

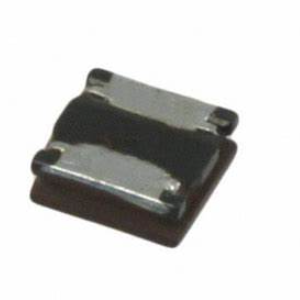

LQH2HPN2R2MJRL
Manufacturer:
Murata
Mfr.Part #:
LQH2HPN2R2MJRL
Datasheet:
Description:
Fixed Inductors 1008(2520 Metric) SMD/SMT 2.2 µH 20 % 1.7 A 110.4 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 1 mm |
| Length | 2.5 mm |
| Width | 2 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Case Code (Imperial) | 1008 |
| Case Code (Metric) | 2520 |
| Composition(Kit Type) | Wirewound |
| Height | 1.1 mm |
| Packaging | Reel |
| RoHS | Compliant |
| Self Resonant Frequency | 50 MHz |
| Type | Wirewound |
| Current Rating | 1.7 A |
| DC Resistance (DCR) | 110.4 mΩ |
| Test Frequency | 1 MHz |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Shielding | Shielded |
| Ambient Temperature Range High | 105 °C |
| Inductance | 2.2 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 1.65 A |
| Max DC Current | 1.7 A |
| Series Resistance | 110.4 mΩ |
| Saturation Current | 1.7 A |
| Schedule B | 8504500000 |
| Manufacturer Lifecycle Status | IN PRODUCTION (Last Updated: 1 week ago) |
