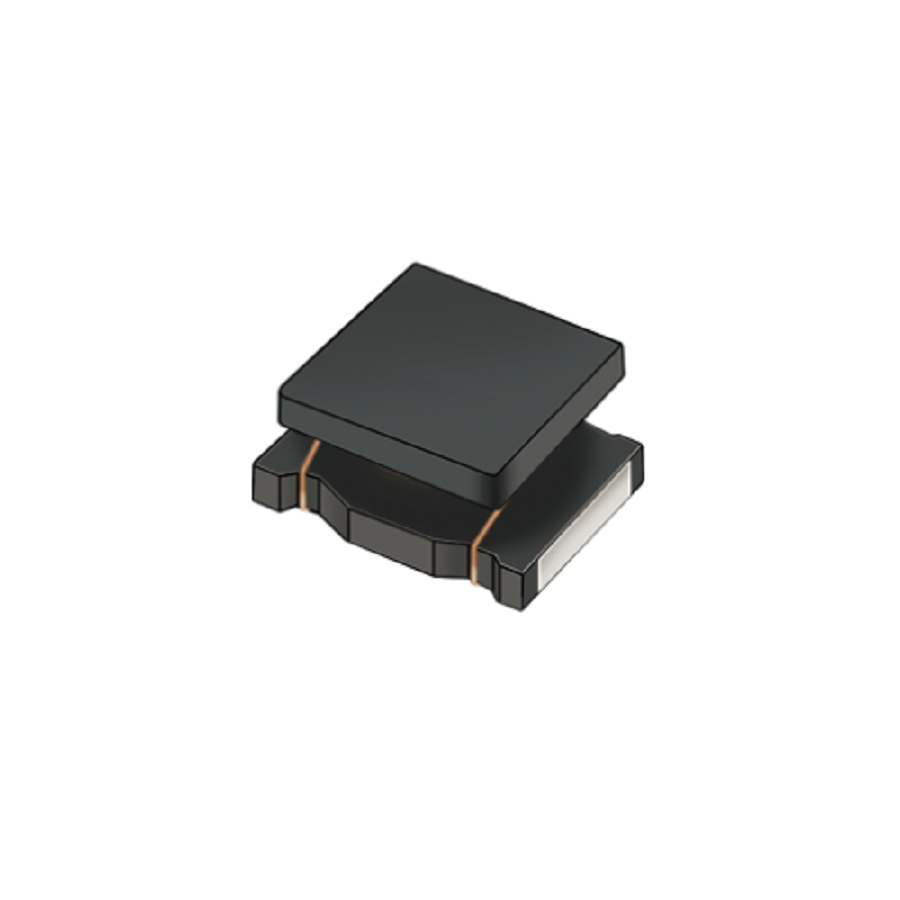

LQH31MN2R2J03L
Manufacturer:
Murata
Mfr.Part #:
LQH31MN2R2J03L
Datasheet:
Description:
Fixed Inductors 1206(3216 Metric) SMD/SMT 2.2 µH 5 % 140 mA 700 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 5 % |
| Height - Seated (Max) | 2 mm |
| Length | 3.2 mm |
| Width | 1.6 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Composition(Kit Type) | Wirewound |
| Height | 1.8 mm |
| Packaging | Reel |
| Depth | 1.8 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Weight | 29.001562 mg |
| Self Resonant Frequency | 50 MHz |
| Type | Wirewound |
| Q Factor | 35 |
| Current Rating | 140 mA |
| DC Resistance (DCR) | 700 mΩ |
| Test Frequency | 1 MHz |
| Military Standard | Not |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Shielding | Unshielded |
| Inductance | 2.2 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 140 mA |
| Max DC Current | 140 mA |
| Series Resistance | 910 mΩ |
| DC Current | 140 mA |
| Schedule B | 8504500000 |
| Manufacturer Lifecycle Status | IN PRODUCTION (Last Updated: 1 week ago) |
