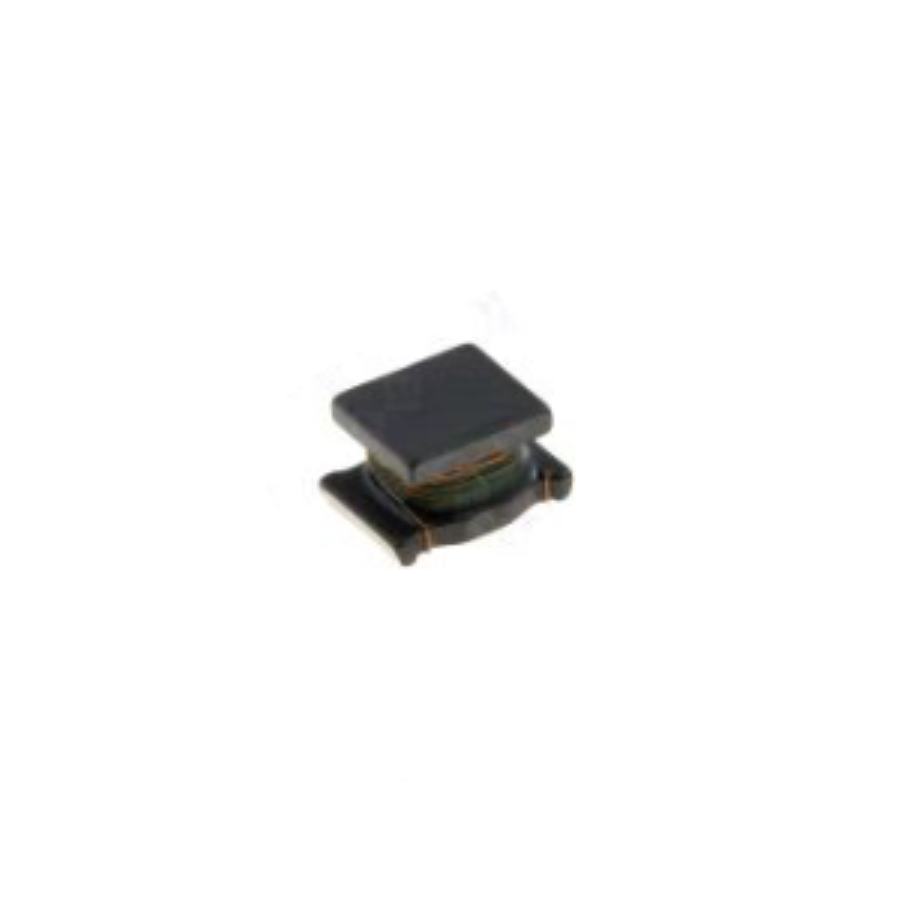

LQH32PH150MNCL
Manufacturer:
Murata
Mfr.Part #:
LQH32PH150MNCL
Datasheet:
Description:
Fixed Inductors 1210(3225 Metric) SMD/SMT 15 µH 20 % 800 mA 570 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 1.7 mm |
| Length | 3.2 mm |
| Width | 2.5 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Composition(Kit Type) | Wirewound |
| Height | 1.7 mm |
| Packaging | Reel |
| RoHS | Compliant |
| Ratings | AEC-Q200 |
| Self Resonant Frequency | 20 MHz |
| Type | Wirewound |
| Current Rating | 800 mA |
| DC Resistance (DCR) | 570 mΩ |
| Test Frequency | 1 MHz |
| Lifecycle Status | Production (Last Updated: 1 month ago) |
| Shielding | Shielded |
| Ambient Temperature Range High | 105 °C |
| Inductance | 15 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 700 mA |
| Series Resistance | 570 mΩ |
| Saturation Current | 800 mA |
| Manufacturer Lifecycle Status | IN PRODUCTION (Last Updated: 1 month ago) |
Stock: 3
Distributors
pcbx
pcbxUnit Price$0.22282
Ext.Price$0.22282
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.22282 | $0.22282 |
| 10 | $0.19877 | $1.98770 |
| 50 | $0.17731 | $8.86550 |
| 100 | $0.15467 | $15.46700 |
| 500 | $0.13493 | $67.46500 |
| 1000 | $0.12649 | $126.49000 |
| 3000 | $0.11858 | $355.74000 |
