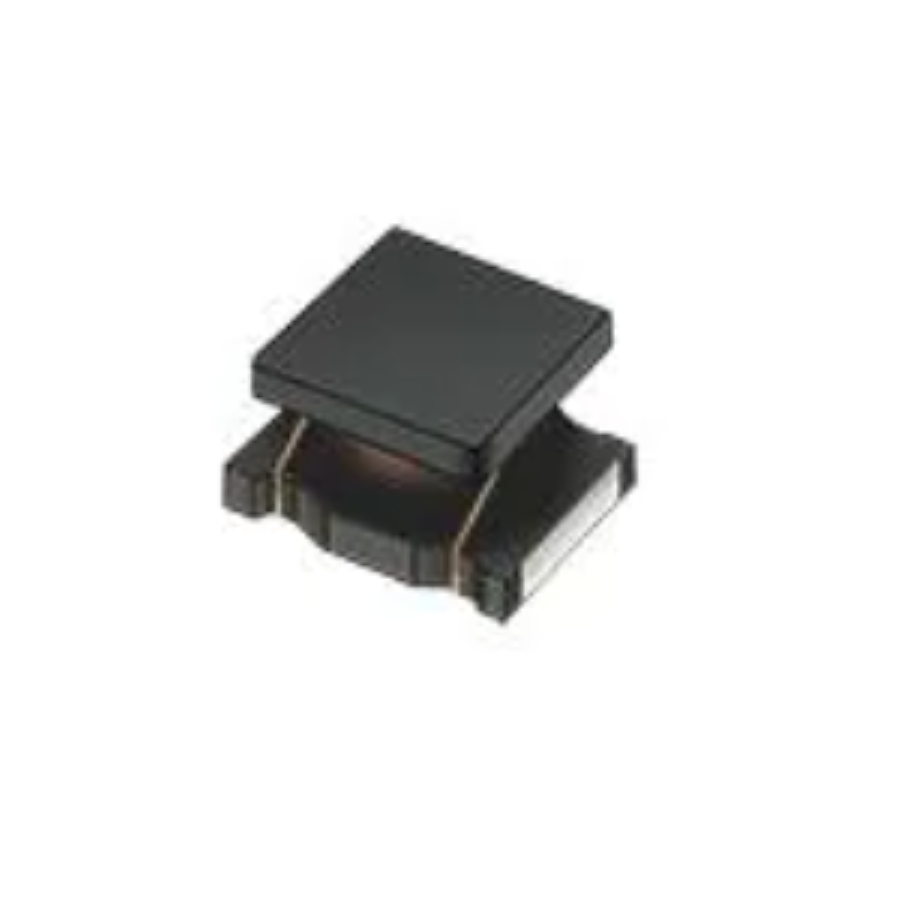

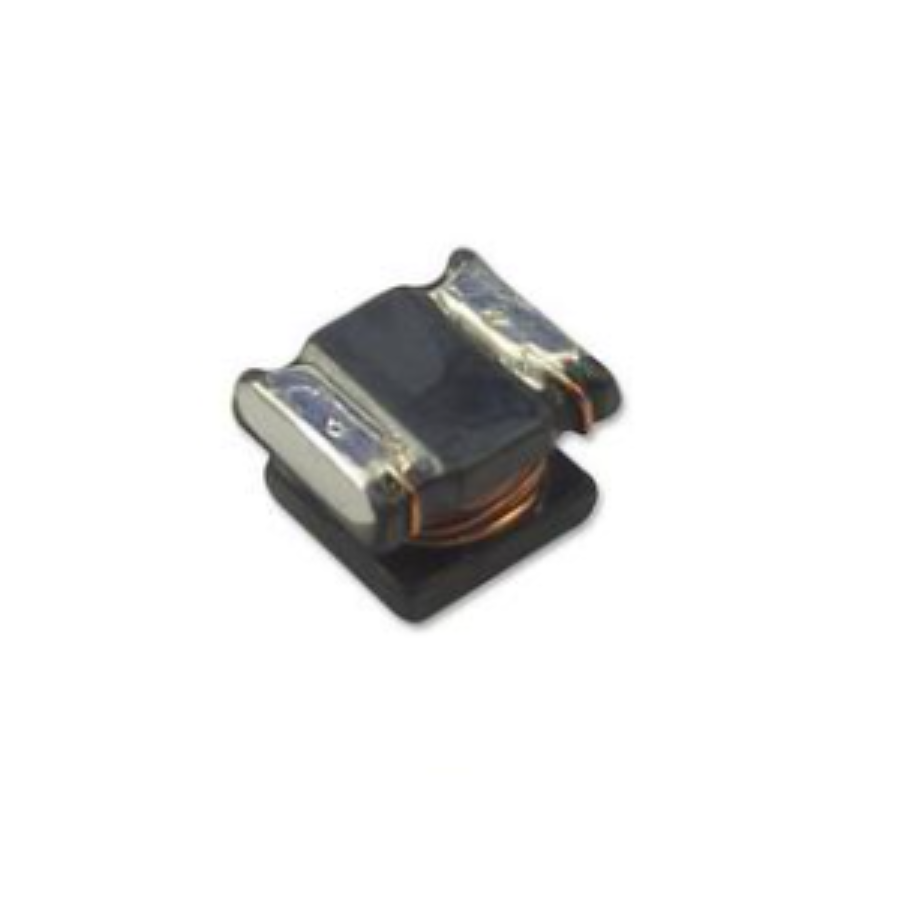

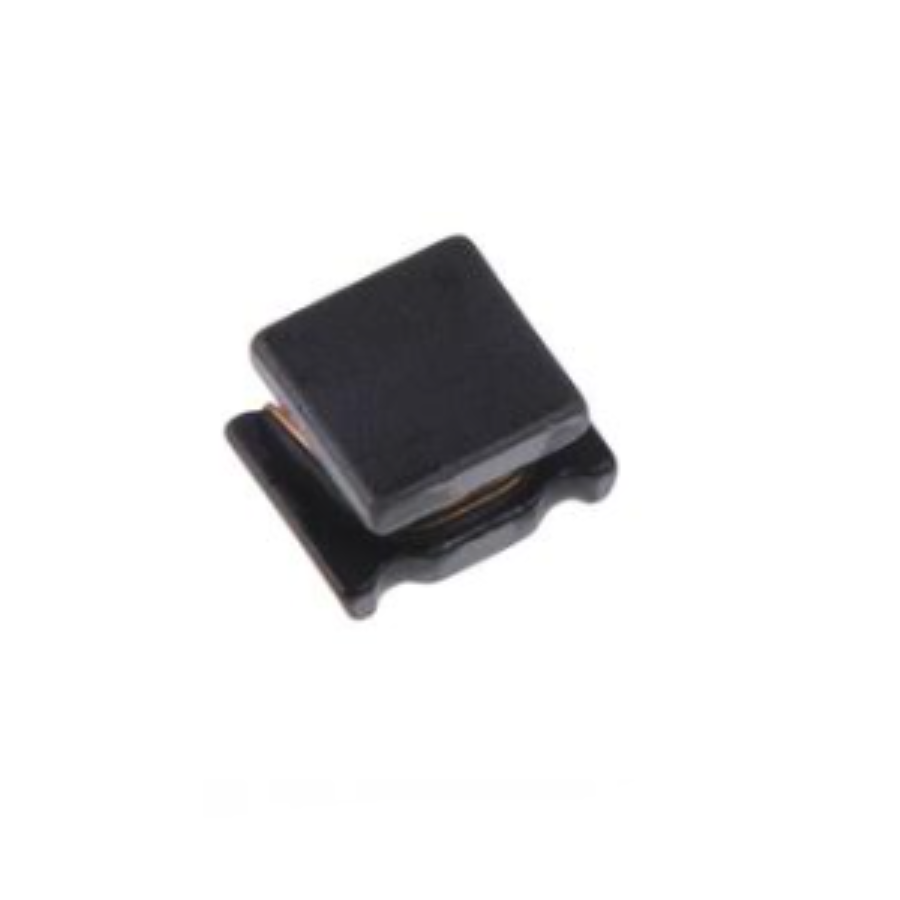

LQH32PN100MN0L
Manufacturer:
Murata
Mfr.Part #:
LQH32PN100MN0L
Datasheet:
Description:
Fixed Inductors 1210(3225 Metric) SMD/SMT 10 µH 20 % 700 mA 380 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 1.7 mm |
| Length | 3.2 mm |
| Width | 2.5 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Case Code (Imperial) | 1210 |
| Case Code (Metric) | 3225 |
| Resistance | 456 mΩ |
| Composition(Kit Type) | Wirewound |
| Height | 1.7 mm |
| Packaging | Reel |
| Depth | 2.8 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Weight | 43.99846 mg |
| Self Resonant Frequency | 30 MHz |
| Current Rating | 700 mA |
| DC Resistance (DCR) | 380 mΩ |
| Test Frequency | 1 MHz |
| Military Standard | Not |
| Lifecycle Status | Production (Last Updated: 6 days ago) |
| Shielding | Shielded |
| Ambient Temperature Range High | 85 °C |
| Inductance | 10 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 700 mA |
| inductance tolerance | 20 % |
| Max DC Current | 750 mA |
| Series Resistance | 456 mΩ |
| DC Current | 700 mA |
| Saturation Current | 750 mA |
| Schedule B | 8504500000 |
| Manufacturer Lifecycle Status | IN PRODUCTION (Last Updated: 6 days ago) |
| Type | Wirewound |
Stock: 17507
Distributors
pcbx
pcbxUnit Price$0.15047
Ext.Price$0.15047
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.15047 | $0.15047 |
| 10 | $0.12567 | $1.25670 |
| 50 | $0.11449 | $5.72450 |
| 100 | $0.10430 | $10.43000 |
| 500 | $0.09214 | $46.07000 |
| 1000 | $0.08139 | $81.39000 |
| 3000 | $0.07130 | $213.90000 |
