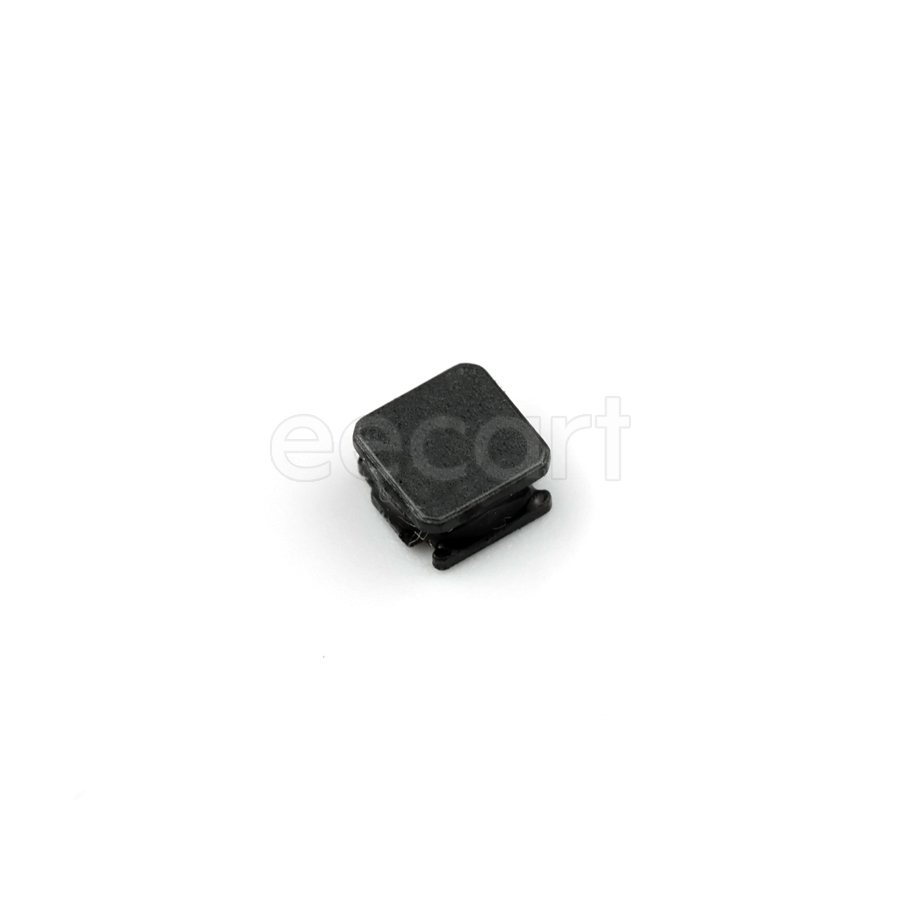

LQH3NPN4R7MJRL
Manufacturer:
Murata
Mfr.Part #:
LQH3NPN4R7MJRL
Datasheet:
Description:
Fixed Inductors 3.00mmL×3.00mmW×1.10mmH SMD/SMT 4.7 µH 20 % 1.18 A 144 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 1.2 mm |
| Length | 2.9972 mm |
| Width | 2.9972 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Case Code (Imperial) | 1212 |
| Case Code (Metric) | 3030 |
| Composition(Kit Type) | Wirewound |
| Height | 900 µm |
| Packaging | Reel |
| RoHS | Compliant |
| Weight | 51.000792 mg |
| Self Resonant Frequency | 40 MHz |
| Current Rating | 1.18 A |
| DC Resistance (DCR) | 144 mΩ |
| Test Frequency | 1 MHz |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Shielding | Shielded |
| Ambient Temperature Range High | 105 °C |
| Inductance | 4.7 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 1.58 A |
| Max DC Current | 1.18 A |
| Series Resistance | 144 mΩ |
| Saturation Current | 1.18 A |
| Manufacturer Lifecycle Status | IN PRODUCTION (Last Updated: 1 week ago) |
| Type | Wirewound |
Stock: 850
Distributors
pcbx
pcbxUnit Price$0.12144
Ext.Price$0.12144
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.12144 | $0.12144 |
| 10 | $0.10722 | $1.07220 |
| 50 | $0.09466 | $4.73300 |
| 100 | $0.08254 | $8.25400 |
| 500 | $0.07197 | $35.98500 |
| 1000 | $0.06592 | $65.92000 |
| 3000 | $0.06037 | $181.11000 |
