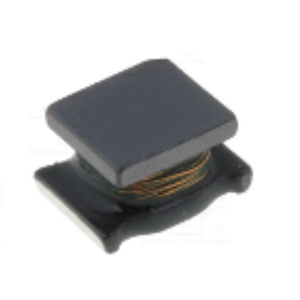

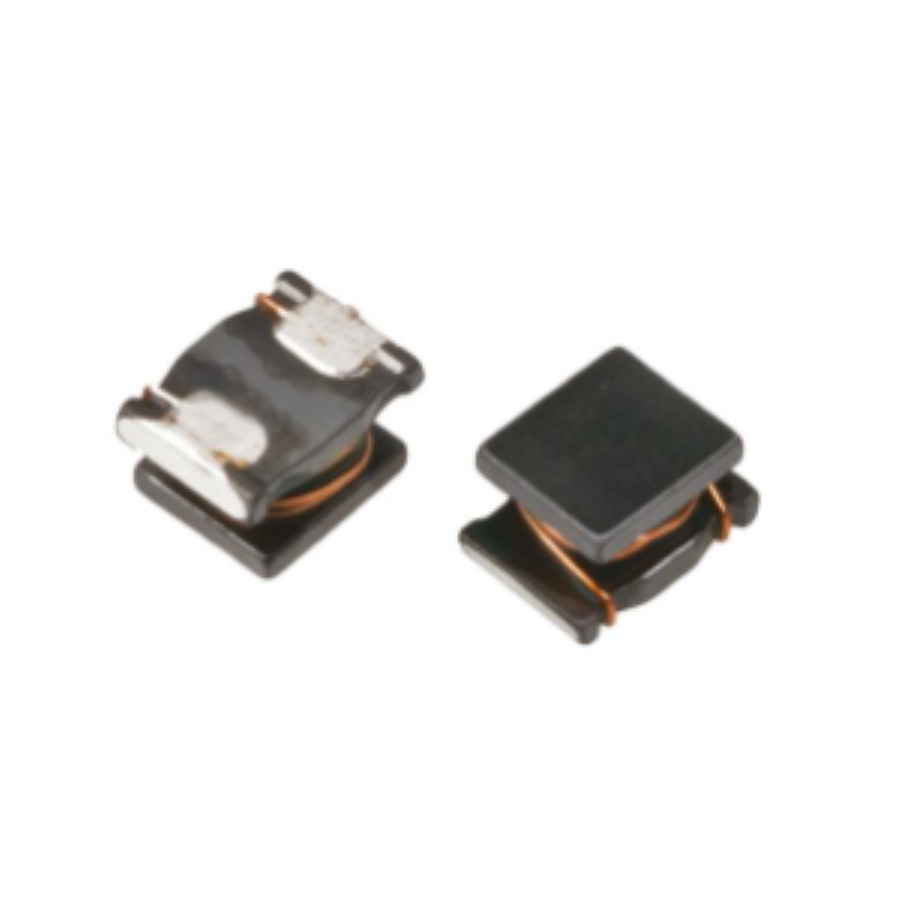

LQH43MN331K03L
Manufacturer:
Murata
Mfr.Part #:
LQH43MN331K03L
Datasheet:
Description:
Fixed Inductors 1812(4532 Metric) SMD/SMT 330 µH 10 % 95 mA 8.2 Ω
| Parameter | Value |
|---|---|
| Tolerance | 10 % |
| Height - Seated (Max) | 2.8 mm |
| Length | 4.5 mm |
| Width | 3.2 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Case Code (Imperial) | 1812 |
| Case Code (Metric) | 4532 |
| Resistance | 8.2 Ω |
| Composition(Kit Type) | Wirewound |
| Height | 2.6 mm |
| Packaging | Reel |
| Depth | 3.4 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Weight | 130.010913 mg |
| Frequency | 3.6 MHz |
| Self Resonant Frequency | 3.6 MHz |
| Type | Wirewound |
| Q Factor | 40 |
| Current Rating | 95 mA |
| DC Resistance (DCR) | 8.2 Ω |
| Test Frequency | 1 MHz |
| Military Standard | Not |
| Lifecycle Status | Production (Last Updated: 6 days ago) |
| Shielding | Unshielded |
| Inductance | 330 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 95 mA |
| Max DC Current | 95 mA |
| Series Resistance | 8.2 Ω |
| DC Current | 95 mA |
| Schedule B | 8504500000 |
| Manufacturer Lifecycle Status | IN PRODUCTION (Last Updated: 6 days ago) |
Stock: 198
Distributors
pcbx
pcbxUnit Price$0.22512
Ext.Price$0.22512
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.22512 | $0.22512 |
| 10 | $0.20060 | $2.00600 |
| 50 | $0.17875 | $8.93750 |
| 100 | $0.15558 | $15.55800 |
| 500 | $0.13541 | $67.70500 |
| 1000 | $0.12962 | $129.62000 |
| 3000 | $0.12408 | $372.24000 |
| 5000 | $0.11878 | $593.90000 |
