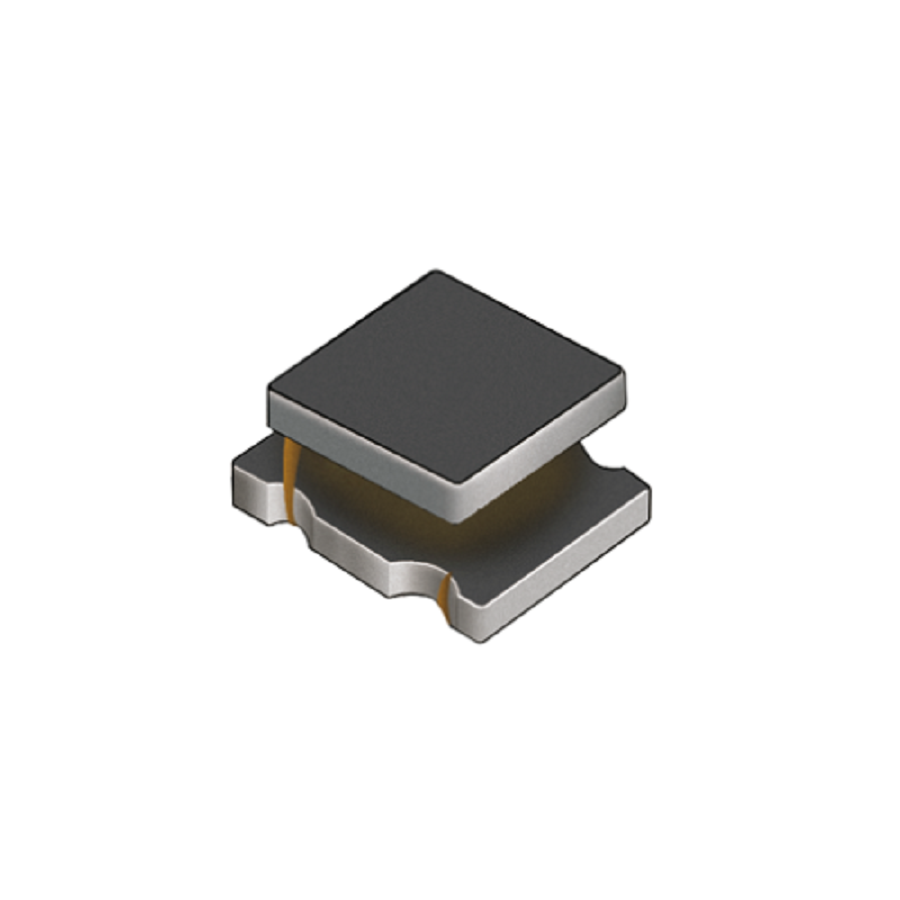

LQH43PH220M26L
Manufacturer:
Murata
Mfr.Part #:
LQH43PH220M26L
Datasheet:
Description:
Fixed Inductors 1812(4532 Metric) SMD/SMT 22 µH 20 % 700 mA 392.4 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 2.8 mm |
| Length | 4.5 mm |
| Width | 3.2 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Composition(Kit Type) | Wirewound |
| Height | 2.8 mm |
| Packaging | Reel |
| RoHS | Compliant |
| Ratings | AEC-Q200 |
| Self Resonant Frequency | 15 MHz |
| Type | Wirewound |
| Current Rating | 700 mA |
| DC Resistance (DCR) | 392.4 mΩ |
| Test Frequency | 1 MHz |
| Lifecycle Status | Production (Last Updated: 1 month ago) |
| Shielding | Shielded |
| Ambient Temperature Range High | 105 °C |
| Inductance | 22 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 780 mA |
| Series Resistance | 392.4 mΩ |
| Saturation Current | 700 mA |
| Manufacturer Lifecycle Status | IN PRODUCTION (Last Updated: 1 month ago) |
Stock: 85
Distributors
pcbx
pcbxUnit Price$0.26934
Ext.Price$0.26934
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.26934 | $0.26934 |
| 10 | $0.22274 | $2.22740 |
| 25 | $0.20869 | $5.21725 |
| 50 | $0.19553 | $9.77650 |
| 100 | $0.18320 | $18.32000 |
| 300 | $0.17279 | $51.83700 |
| 500 | $0.16297 | $81.48500 |
