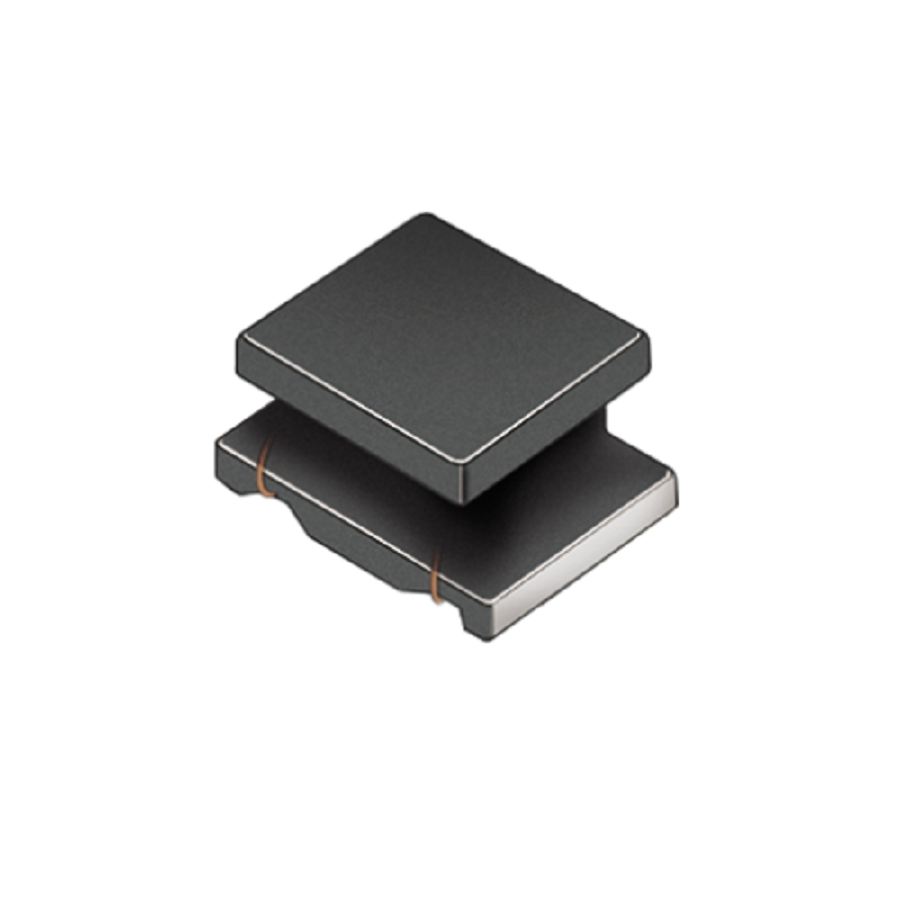

LQH43PN1R0N26L
Manufacturer:
Murata
Mfr.Part #:
LQH43PN1R0N26L
Datasheet:
Description:
Fixed Inductors 1812(4532 Metric) SMD/SMT 1 µH 30 % 3.3 A 31.2 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 30 % |
| Height - Seated (Max) | 2.8 mm |
| Length | 4.4958 mm |
| Width | 3.2004 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Case Code (Imperial) | 1812 |
| Case Code (Metric) | 4532 |
| Composition(Kit Type) | Wirewound |
| Height | 2.8 mm |
| Packaging | Reel |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Self Resonant Frequency | 100 MHz |
| Type | Wirewound |
| Current Rating | 3.3 A |
| DC Resistance (DCR) | 31.2 mΩ |
| Test Frequency | 1 MHz |
| Lifecycle Status | Production (Last Updated: 1 month ago) |
| Shielding | Shielded |
| Inductance | 1 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 3.3 A |
| inductance tolerance | 30 % |
| Max DC Current | 3.4 A |
| Series Resistance | 31.2 mΩ |
| Saturation Current | 3.4 A |
| Schedule B | 8504500000 |
| Manufacturer Lifecycle Status | IN PRODUCTION (Last Updated: 1 month ago) |
Stock: 1732
Distributors
pcbx
pcbxUnit Price$0.25050
Ext.Price$0.25050
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.25050 | $0.25050 |
| 10 | $0.20775 | $2.07750 |
| 50 | $0.18894 | $9.44700 |
| 100 | $0.17184 | $17.18400 |
| 500 | $0.15217 | $76.08500 |
| 1000 | $0.13850 | $138.50000 |
| 3000 | $0.13148 | $394.44000 |
| 5000 | $0.12482 | $624.10000 |
| 10000 | $0.11541 | $1154.10000 |
