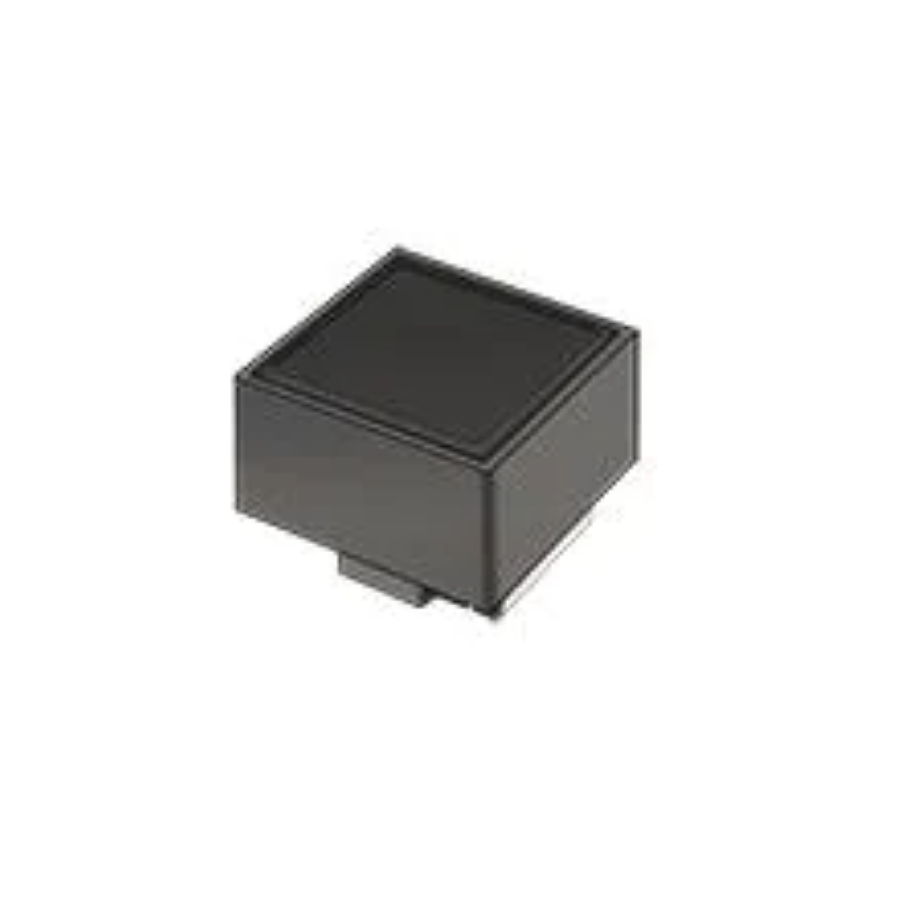

LQH66SN3R3M03L
Manufacturer:
Murata
Mfr.Part #:
LQH66SN3R3M03L
Datasheet:
Description:
Fixed Inductors 2525(6464 Metric) SMD/SMT 3.3 µH 20 % 2.6 A 22 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 5 mm |
| Length | 6.6 mm |
| Width | 6.2992 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 80 °C |
| Min Operating Temperature | -40 °C |
| Case Code (Imperial) | 2525 |
| Case Code (Metric) | 6363 |
| Number of Pins | 2 |
| Resistance | 22 MΩ |
| Composition(Kit Type) | Wirewound |
| Height | 4.7 mm |
| Packaging | Reel |
| Depth | 6.6 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Self Resonant Frequency | 40 MHz |
| Type | Wirewound |
| Current Rating | 2.6 A |
| DC Resistance (DCR) | 22 mΩ |
| Test Frequency | 1 MHz |
| Military Standard | Not |
| Lifecycle Status | Production (Last Updated: 1 month ago) |
| Shielding | Shielded |
| Inductance | 3.3 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 2.6 A |
| inductance tolerance | 20 % |
| Max DC Current | 2.6 A |
| Series Resistance | 30.8 mΩ |
| DC Current | 2.6 A |
| Manufacturer Lifecycle Status | IN PRODUCTION (Last Updated: 1 month ago) |
Stock: 112
Distributors
pcbx
pcbxUnit Price$1.01194
Ext.Price$1.01194
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.01194 | $1.01194 |
| 10 | $0.84624 | $8.46240 |
| 25 | $0.77841 | $19.46025 |
| 50 | $0.71602 | $35.80100 |
| 100 | $0.65863 | $65.86300 |
| 300 | $0.63552 | $190.65600 |
| 500 | $0.61322 | $306.61000 |
| 1000 | $0.59170 | $591.70000 |
