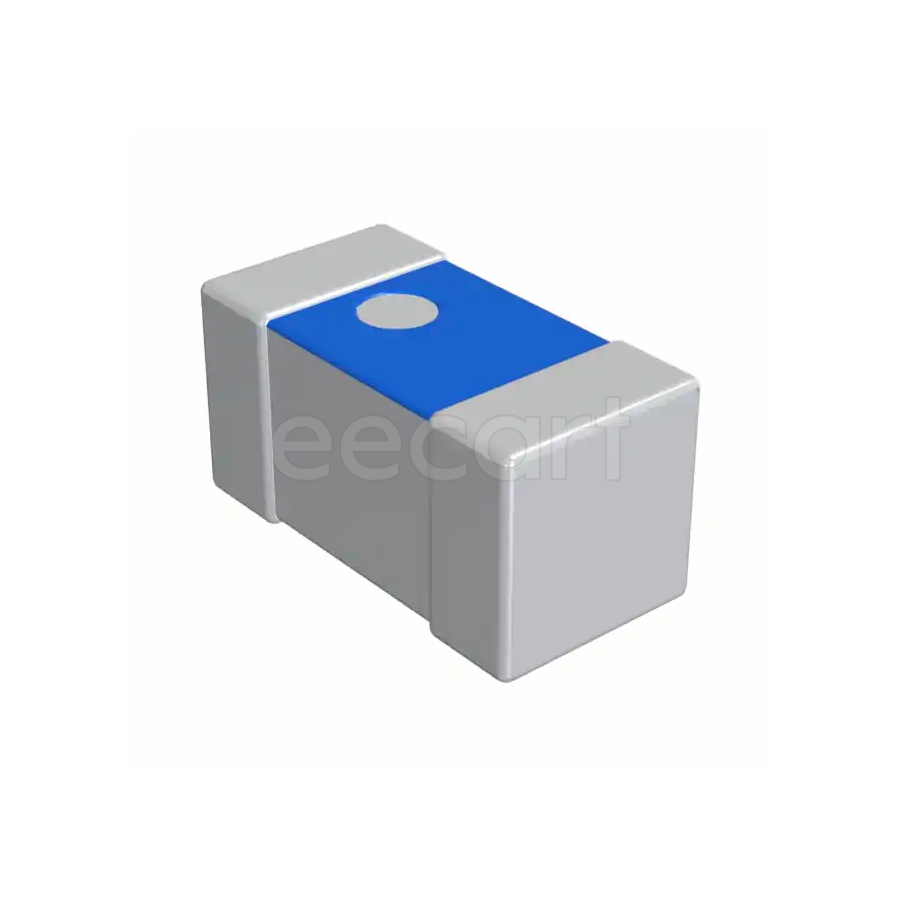

LQP02TN2N2B02D
Manufacturer:
Murata
Mfr.Part #:
LQP02TN2N2B02D
Datasheet:
Description:
Fixed Inductors 01005(0402 Metric) SMD/SMT 2.2 nH 0.1 nH 200 mA 750 mΩ
| Parameter | Value |
|---|---|
| Height - Seated (Max) | 0.23 mm |
| Length | 400 µm |
| Width | 200 µm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Case Code (Imperial) | 1005 |
| Case Code (Metric) | 0402 |
| Height | 300 µm |
| Packaging | Reel |
| RoHS | Compliant |
| Self Resonant Frequency | 6 GHz |
| Type | Thick Film |
| Q Factor | 8 |
| Current Rating | 200 mA |
| DC Resistance (DCR) | 750 mΩ |
| Test Frequency | 500 MHz |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Shielding | Unshielded |
| Inductance | 2.2 nH |
| Core Material | Non-Magnetic |
| RMS Current (Irms) | 200 mA |
| Series Resistance | 750 mΩ |
| Manufacturer Lifecycle Status | IN PRODUCTION (Last Updated: 1 week ago) |
| Tolerance | 0.1 nH |
Stock: 14228
Distributors
pcbx
pcbxUnit Price$0.06258
Ext.Price$0.06258
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.06258 | $0.06258 |
| 10 | $0.03189 | $0.31890 |
| 50 | $0.02893 | $1.44650 |
| 100 | $0.02625 | $2.62500 |
| 500 | $0.02397 | $11.98500 |
| 1000 | $0.02189 | $21.89000 |
| 3000 | $0.01992 | $59.76000 |
| 5000 | $0.01813 | $90.65000 |
| 10000 | $0.01752 | $175.20000 |
