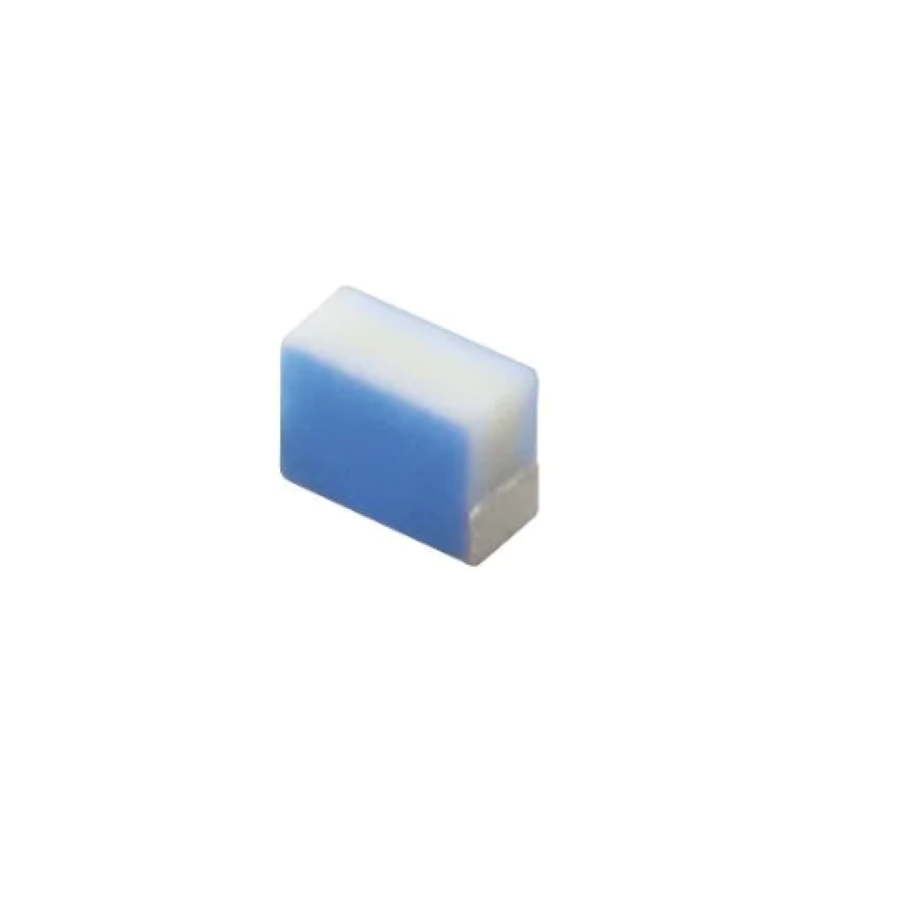

LQP02TN2N4B02D
Manufacturer:
Murata
Mfr.Part #:
LQP02TN2N4B02D
Datasheet:
Description:
Fixed Inductors 01005(0402 Metric) SMD/SMT 2.4 nH 0.1 nH 200 mA 750 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 0.1 nH |
| Height - Seated (Max) | 0.32 mm |
| Length | 406.4 µm |
| Width | 203.2 µm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Case Code (Imperial) | 01005 |
| Case Code (Metric) | 0402 |
| Height | 220 µm |
| Packaging | Reel |
| Depth | 220 µm |
| RoHS | Compliant |
| Self Resonant Frequency | 6 GHz |
| Type | Thin Film |
| Q Factor | 8 |
| Current Rating | 200 mA |
| DC Resistance (DCR) | 750 mΩ |
| Test Frequency | 500 MHz |
| Military Standard | Not |
| Lifecycle Status | Production (Last Updated: 1 month ago) |
| Shielding | Unshielded |
| Inductance | 2.4 nH |
| Core Material | Ferrite |
| RMS Current (Irms) | 200 mA |
| Series Resistance | 750 mΩ |
| DC Current | 200 mA |
| Manufacturer Lifecycle Status | IN PRODUCTION (Last Updated: 1 month ago) |
Stock: 24071
Distributors
pcbx
pcbxUnit Price$0.04568
Ext.Price$0.04568
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.04568 | $0.04568 |
| 10 | $0.02284 | $0.22840 |
| 50 | $0.01757 | $0.87850 |
| 100 | $0.01572 | $1.57200 |
| 500 | $0.01407 | $7.03500 |
| 1000 | $0.01287 | $12.87000 |
| 3000 | $0.01178 | $35.34000 |
| 5000 | $0.01078 | $53.90000 |
| 10000 | $0.00996 | $99.60000 |
| 30000 | $0.00921 | $276.30000 |
