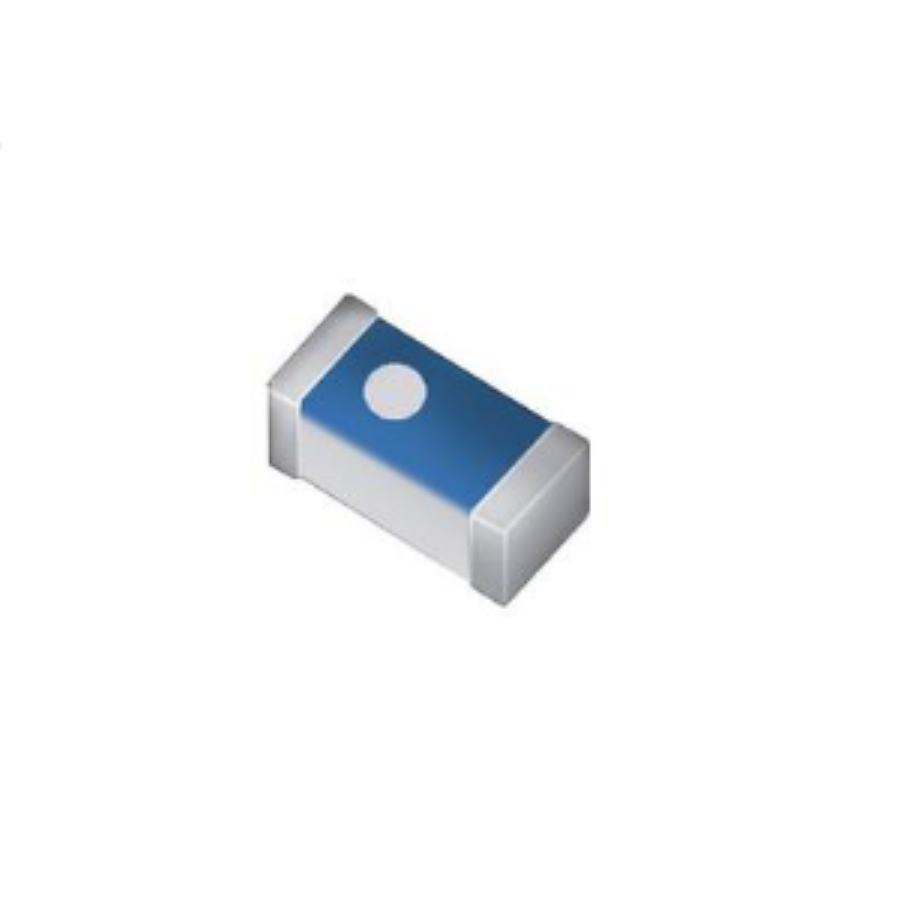

LQP03TN2N2C02D
Manufacturer:
Murata
Mfr.Part #:
LQP03TN2N2C02D
Datasheet:
Description:
Fixed Inductors 0201(0603 Metric) SMD/SMT 2.2 nH 3 % 600 mA 150 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 3 % |
| Height - Seated (Max) | 0.33 mm |
| Length | 609.6 µm |
| Width | 304.8 µm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Case Code (Imperial) | 0201 |
| Case Code (Metric) | 0603 |
| Composition(Kit Type) | Thin Film |
| Height | 300 µm |
| Packaging | Reel |
| Depth | 330 µm |
| RoHS | Compliant |
| Self Resonant Frequency | 11 GHz |
| Type | Thick Film |
| Q Factor | 14 |
| Current Rating | 600 mA |
| DC Resistance (DCR) | 150 mΩ |
| Test Frequency | 500 MHz |
| Military Standard | Not |
| Lifecycle Status | Production (Last Updated: 6 days ago) |
| Shielding | Unshielded |
| Inductance | 2.2 nH |
| Core Material | Non-Magnetic |
| RMS Current (Irms) | 600 mA |
| Max DC Current | 600 mA |
| Series Resistance | 150 mΩ |
| DC Current | 600 mA |
| Schedule B | 8504500000 |
| Manufacturer Lifecycle Status | IN PRODUCTION (Last Updated: 6 days ago) |
Stock: 18367
Distributors
pcbx
pcbxUnit Price$0.06258
Ext.Price$0.06258
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.06258 | $0.06258 |
| 10 | $0.01505 | $0.15050 |
| 50 | $0.01370 | $0.68500 |
| 100 | $0.01248 | $1.24800 |
| 500 | $0.01117 | $5.58500 |
| 1000 | $0.01000 | $10.00000 |
| 3000 | $0.00901 | $27.03000 |
| 5000 | $0.00812 | $40.60000 |
| 10000 | $0.00752 | $75.20000 |
