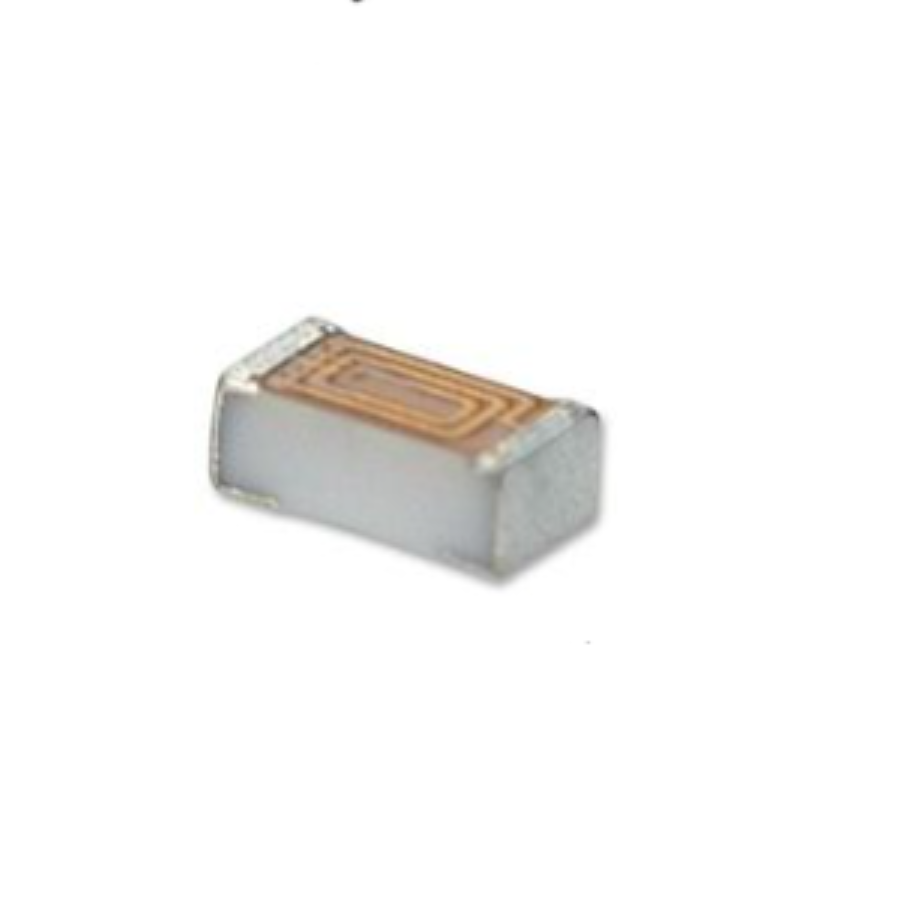

LQP18MN18NG02D
Manufacturer:
Murata
Mfr.Part #:
LQP18MN18NG02D
Datasheet:
Description:
Fixed Inductors 0603(1608 Metric) SMD/SMT 18 nH 2 % 100 mA 1.5 Ω
| Parameter | Value |
|---|---|
| Tolerance | 2 % |
| Height - Seated (Max) | 0.61 mm |
| Length | 1.6 mm |
| Width | 787.4 µm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Composition(Kit Type) | Thick Film |
| Height | 500 µm |
| Packaging | Reel |
| Depth | 950 µm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Self Resonant Frequency | 2.3 GHz |
| Q Factor | 17 |
| Current Rating | 100 mA |
| DC Resistance (DCR) | 1.5 Ω |
| Test Frequency | 500 MHz |
| Military Standard | Not |
| Lifecycle Status | NRND (Last Updated: 1 week ago) |
| Shielding | Unshielded |
| Inductance | 18 nH |
| Core Material | Ferrite, Non-Magnetic |
| Max DC Current | 100 mA |
| DC Current | 100 mA |
| Manufacturer Lifecycle Status | NRND (Last Updated: 1 week ago) |
| Type | Thin Film |
