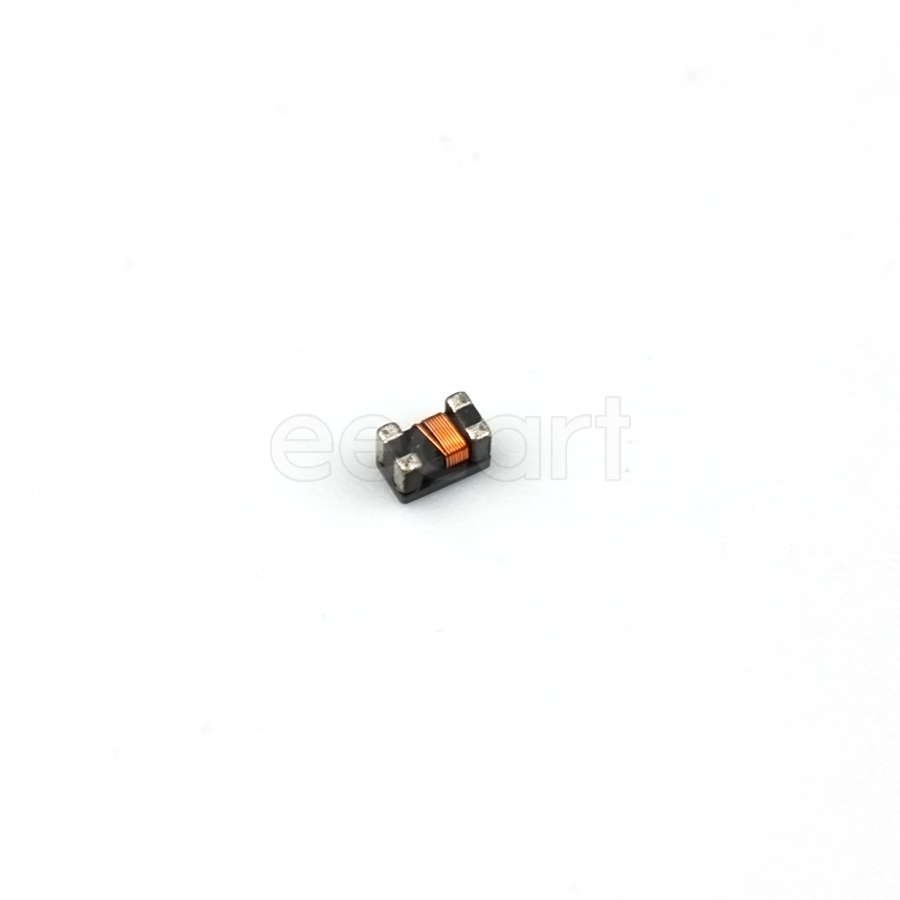

LQW2BASR33J00L
Manufacturer:
Murata
Mfr.Part #:
LQW2BASR33J00L
Datasheet:
Description:
Fixed Inductors 2.09mmL×1.53mmW×1.42mmH SMD/SMT 330 nH 5 % 310 mA 1.4 Ω
| Parameter | Value |
|---|---|
| Tolerance | 5 % |
| Height - Seated (Max) | 1.524 mm |
| Length | 2.0828 mm |
| Width | 1.5 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Case Code (Imperial) | 0806 |
| Case Code (Metric) | 2015 |
| Composition(Kit Type) | Wirewound |
| Height | 1.42 mm |
| Packaging | Reel |
| Depth | 1.73 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Weight | 14.004664 mg |
| Self Resonant Frequency | 650 MHz |
| Q Factor | 48 |
| Current Rating | 310 mA |
| DC Resistance (DCR) | 1.4 Ω |
| Test Frequency | 100 MHz |
| Military Standard | Not |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Shielding | Unshielded |
| Inductance | 330 nH |
| Core Material | Air, Non-Magnetic |
| RMS Current (Irms) | 310 mA |
| inductance tolerance | 5 % |
| Max DC Current | 310 mA |
| Series Resistance | 1.4 Ω |
| DC Current | 310 mA |
| Schedule B | 8504500000 |
| Manufacturer Lifecycle Status | IN PRODUCTION (Last Updated: 1 week ago) |
| Type | Wirewound |
Stock: 29086
Distributors
pcbx
pcbxUnit Price$0.09404
Ext.Price$0.09404
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.09404 | $0.09404 |
| 10 | $0.07763 | $0.77630 |
| 50 | $0.07074 | $3.53700 |
| 100 | $0.06446 | $6.44600 |
| 500 | $0.05683 | $28.41500 |
| 1000 | $0.05010 | $50.10000 |
| 3000 | $0.04768 | $143.04000 |
| 5000 | $0.04537 | $226.85000 |
| 10000 | $0.04318 | $431.80000 |
