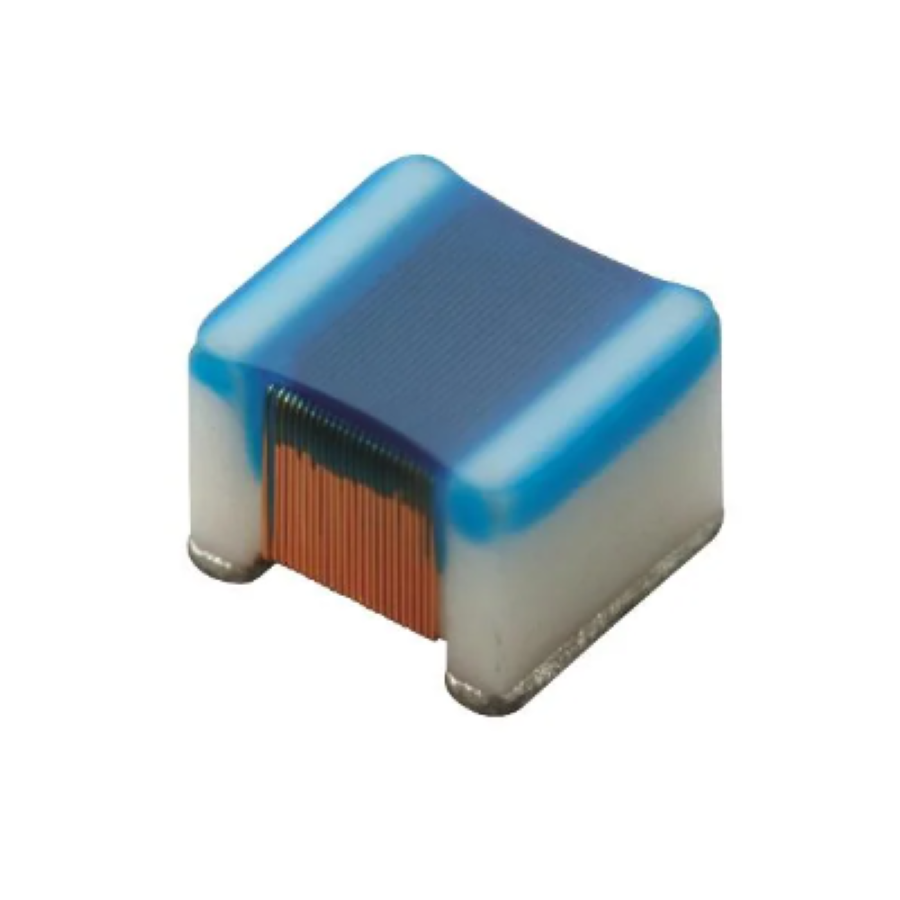

LQW2UAS22NJ00L
Manufacturer:
Murata
Mfr.Part #:
LQW2UAS22NJ00L
Datasheet:
Description:
Fixed Inductors 1008(2520 Metric) SMD/SMT 22 nH 5 % 1 A 120 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 5 % |
| Height - Seated (Max) | 2 mm |
| Length | 2.6162 mm |
| Width | 2.4 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Case Code (Imperial) | 1008 |
| Case Code (Metric) | 2520 |
| Composition(Kit Type) | Wirewound |
| Height | 1.83 mm |
| Packaging | Reel |
| Depth | 2.65 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Self Resonant Frequency | 2.4 GHz |
| Type | Wirewound |
| Q Factor | 55 |
| Current Rating | 1 A |
| DC Resistance (DCR) | 120 mΩ |
| Test Frequency | 50 MHz |
| Lifecycle Status | Production (Last Updated: 1 month ago) |
| Shielding | Unshielded |
| Inductance | 22 nH |
| Core Material | Air, Non-Magnetic |
| RMS Current (Irms) | 1 A |
| inductance tolerance | 5 % |
| Max DC Current | 1 A |
| Series Resistance | 120 mΩ |
| Schedule B | 8504500000 |
| Manufacturer Lifecycle Status | IN PRODUCTION (Last Updated: 1 month ago) |
Stock: 1462
Distributors
pcbx
pcbxUnit Price$0.11270
Ext.Price$0.11270
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.11270 | $0.11270 |
| 10 | $0.10079 | $1.00790 |
| 50 | $0.09014 | $4.50700 |
| 100 | $0.08011 | $8.01100 |
| 500 | $0.07120 | $35.60000 |
| 1000 | $0.06619 | $66.19000 |
| 3000 | $0.06154 | $184.62000 |
