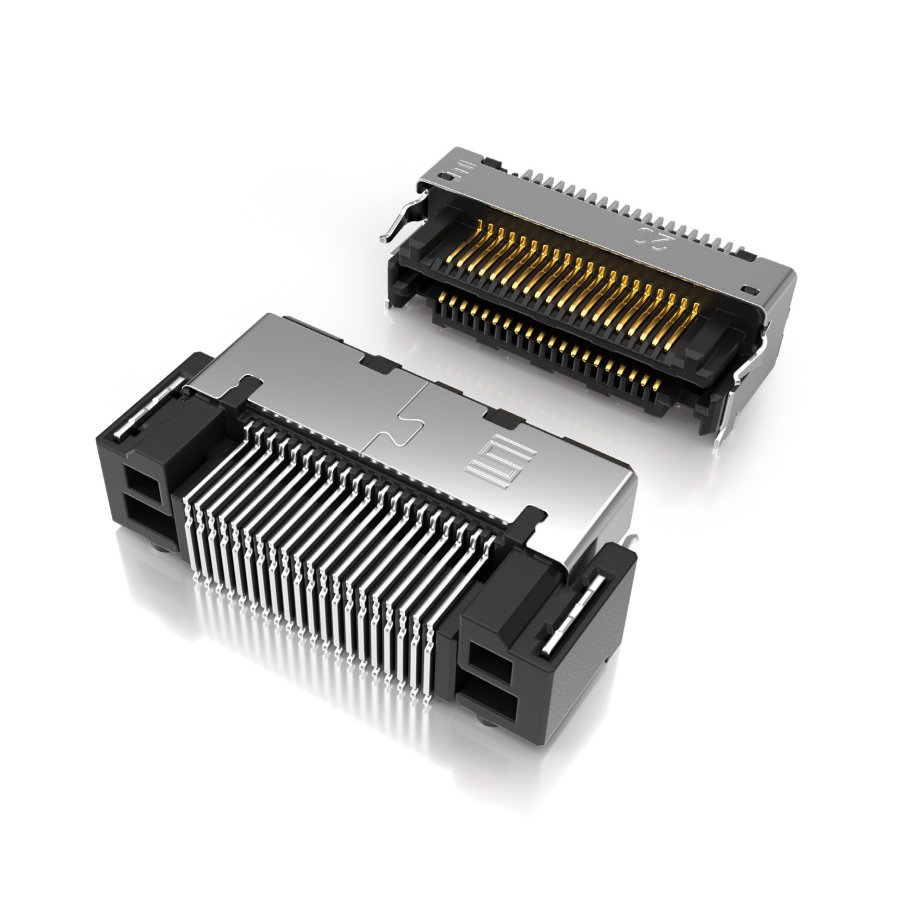

LSHM-140-02.5-L-DV-A-S-TR
Manufacturer:
Samtec
Mfr.Part #:
LSHM-140-02.5-L-DV-A-S-TR
Datasheet:
Description:
Board to Board Connectors SMD/SMT Number of Positions:80 Number of Rows:2 Pitch:500 µm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Reel |
| Voltage Rating | 160 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Phosphor Bronze |
| Pitch | 500 µm |
| Current Rating | 2 A |
| Number of Contacts | 80 |
| Number of Positions | 80 |
| Number of Rows | 2 |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Stack Height | 5 mm, 5.5 mm, 6.5 mm, 8.5 mm |
| Mounting Angle | Vertical |
Stock: 294
Distributors
pcbx
pcbxUnit Price$4.61234
Ext.Price$4.61234
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $4.61234 | $4.61234 |
| 10 | $4.41229 | $44.12290 |
| 25 | $4.26781 | $106.69525 |
| 50 | $3.93011 | $196.50550 |
| 100 | $3.50436 | $350.43600 |
| 300 | $3.23615 | $970.84500 |
| 500 | $2.98847 | $1494.23500 |
| 1000 | $2.75971 | $2759.71000 |
