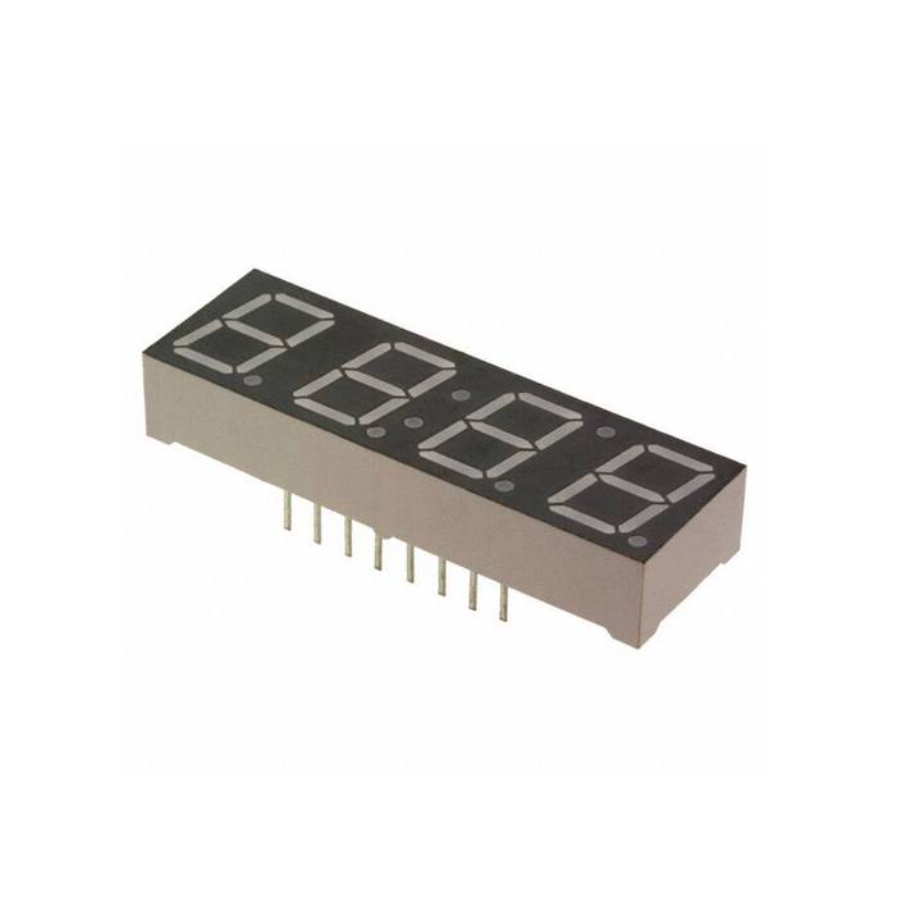

LTC-4627JR
Manufacturer:
Lite-On
Mfr.Part #:
LTC-4627JR
Datasheet:
Description:
LED Displays Through Hole 7-Segment 10 mm Number of Characters:4
| Parameter | Value |
|---|---|
| Length | 40.18 mm |
| Width | 12.7 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -35 °C |
| Number of Pins | 14 |
| Height | 7.112 mm |
| Packaging | Tube |
| Depth | 12.8 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Number of Elements | 35 |
| Forward Current | 25 mA |
| Forward Voltage | 2 V |
| Operating Supply Voltage | 2 V |
| Max Power Dissipation | 70 mW |
| Color | Orange, Red |
| Illumination Color | Red |
| Luminous Intensity | 650 µcd |
| Power Dissipation | 70 mW |
| Element Configuration | Common Anode |
| Wavelength | 631 nm |
| Display Type | 7-Segment |
| power consumption | 70 mW |
| Dominant Wavelength/CCT (K) | 631 nm |
| Reverse Voltage | 5 V |
| Test Current | 20 mA |
| Number of Characters | 4 |
| Viewing Area (height) | 10 mm |
| Schedule B | 8531200040 |
| Character Size | 10 mm |
Stock: 603
Distributors
pcbx
pcbxUnit Price$2.33403
Ext.Price$2.33403
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.33403 | $2.33403 |
| 10 | $2.13389 | $21.33890 |
| 25 | $1.95091 | $48.77275 |
| 50 | $1.78362 | $89.18100 |
| 100 | $1.63068 | $163.06800 |
| 300 | $1.49085 | $447.25500 |
| 500 | $1.36301 | $681.50500 |
| 1000 | $1.24613 | $1246.13000 |
| 3000 | $1.13928 | $3417.84000 |
| 5000 | $1.04157 | $5207.85000 |
