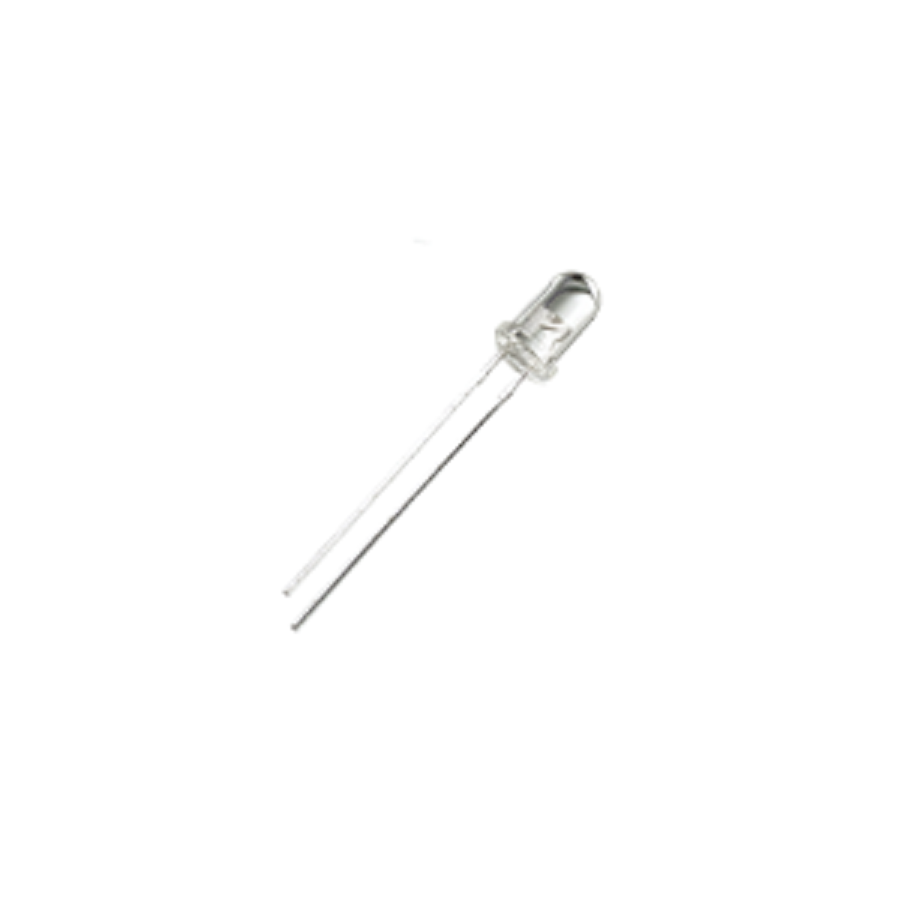

LTL-4233
Manufacturer:
Lite-On
Mfr.Part #:
LTL-4233
Datasheet:
Description:
LEDs T-1 3/4 Through Hole Green 569 nm 30 mA 2.1 V
| Parameter | Value |
|---|---|
| Capacitance | 35 pF |
| Length | 5.6 mm |
| Width | 5.6 mm |
| Diameter | 5 mm |
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Height | 8.6 mm |
| Packaging | Bulk |
| Depth | 5.6 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Number of Elements | 1 |
| Current | 3 A |
| Forward Current | 30 mA |
| Forward Voltage | 2.1 V |
| Max Power Dissipation | 100 mW |
| Color | Green |
| Illumination Color | Green |
| Lens Style | Colored, Diffused, Dome |
| Luminous Intensity | 19 mcd |
| Power Dissipation | 100 mW |
| Number of LEDs | 1 |
| Viewing Angle | 36 ° |
| Wavelength | 565 nm |
| Lens Transparency | Diffused |
| Lens Color | Green Diffused |
| Dominant Wavelength/CCT (K) | 569 nm |
| Reverse Voltage | 5 V |
| Test Current | 10 mA |
| Schedule B | 8541402000 |
Stock: 12183
Distributors
pcbx
pcbxUnit Price$0.10601
Ext.Price$0.10601
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.10601 | $0.10601 |
| 10 | $0.06822 | $0.68220 |
| 50 | $0.05694 | $2.84700 |
| 100 | $0.04753 | $4.75300 |
| 500 | $0.03822 | $19.11000 |
| 1000 | $0.03445 | $34.45000 |
| 3000 | $0.03183 | $95.49000 |
| 5000 | $0.02941 | $147.05000 |
| 10000 | $0.02625 | $262.50000 |
