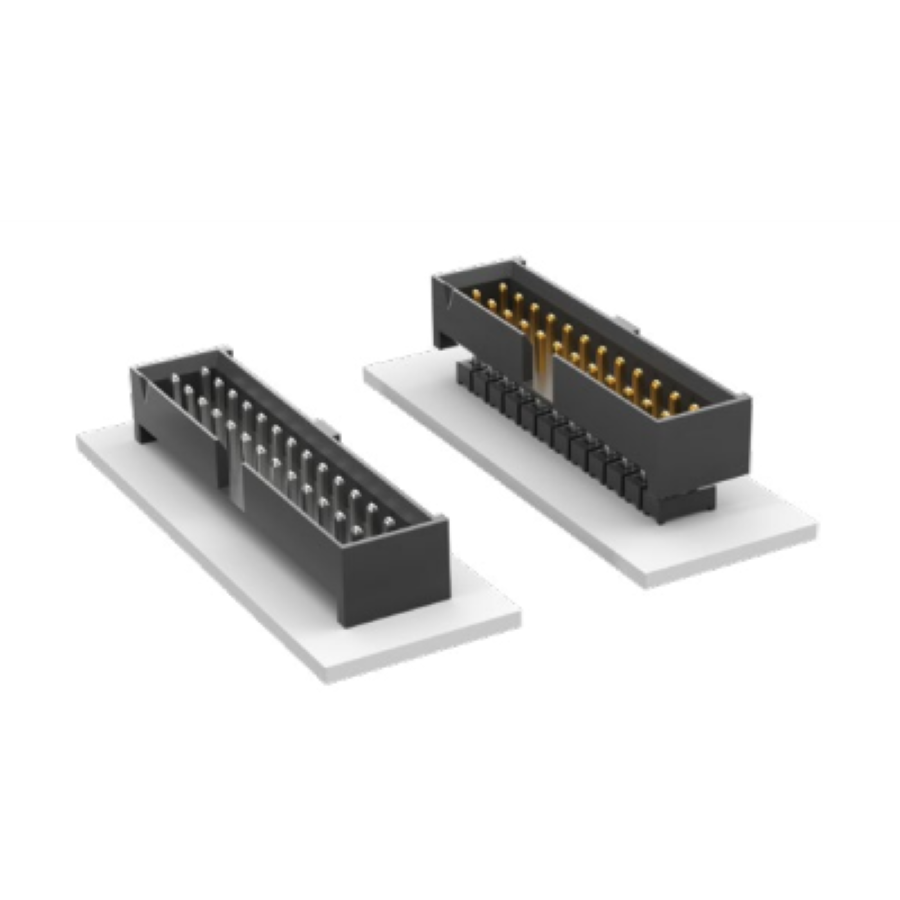

LTMM-120-02-L-D-RA
Manufacturer:
Samtec
Mfr.Part #:
LTMM-120-02-L-D-RA
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:40 Pitch:2 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tube |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2 mm |
| Orientation | Right Angle |
| Gender | Pin (Male) |
| Number of Contacts | 40 |
| Connector Type | Header |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Row Spacing | 2 mm |
| Mating Post Length | 3.05 mm |
| Termination Post Length | 2.29 mm |
Stock: 27
Distributors
pcbx
pcbxUnit Price$4.61234
Ext.Price$4.61234
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $4.61234 | $4.61234 |
| 10 | $4.26183 | $42.61830 |
| 25 | $3.58664 | $89.66600 |
| 50 | $3.01842 | $150.92100 |
| 100 | $2.54022 | $254.02200 |
| 300 | $2.13778 | $641.33400 |
| 500 | $1.79910 | $899.55000 |
| 1000 | $1.51408 | $1514.08000 |
