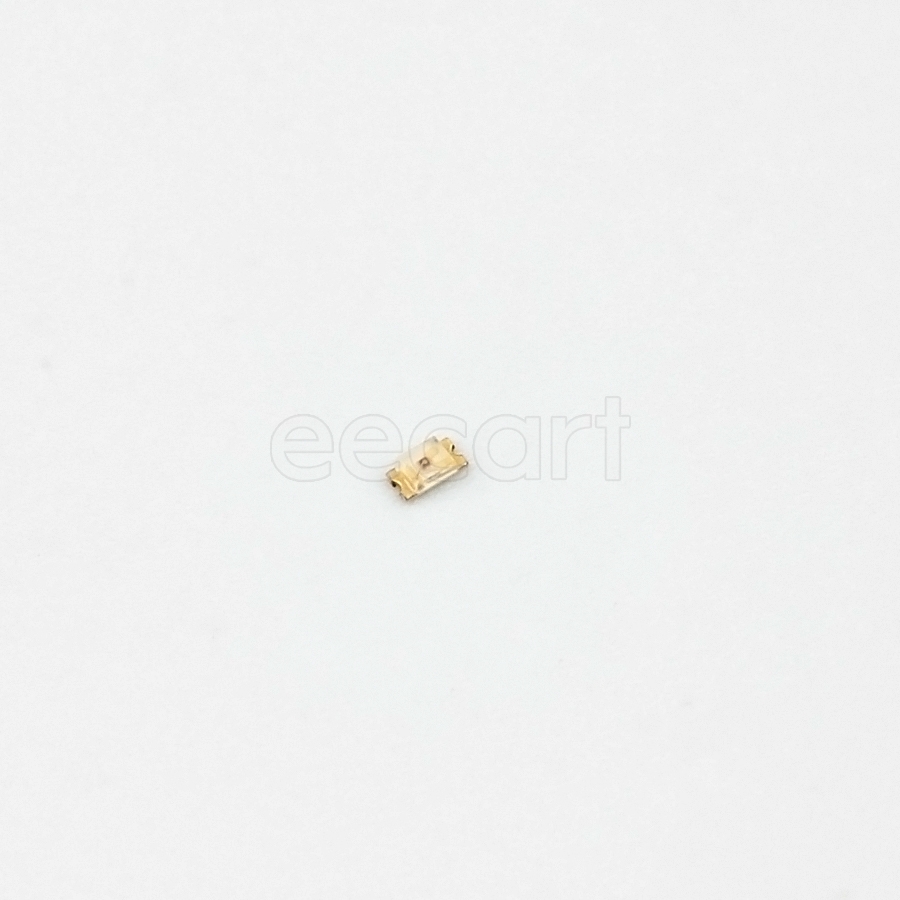

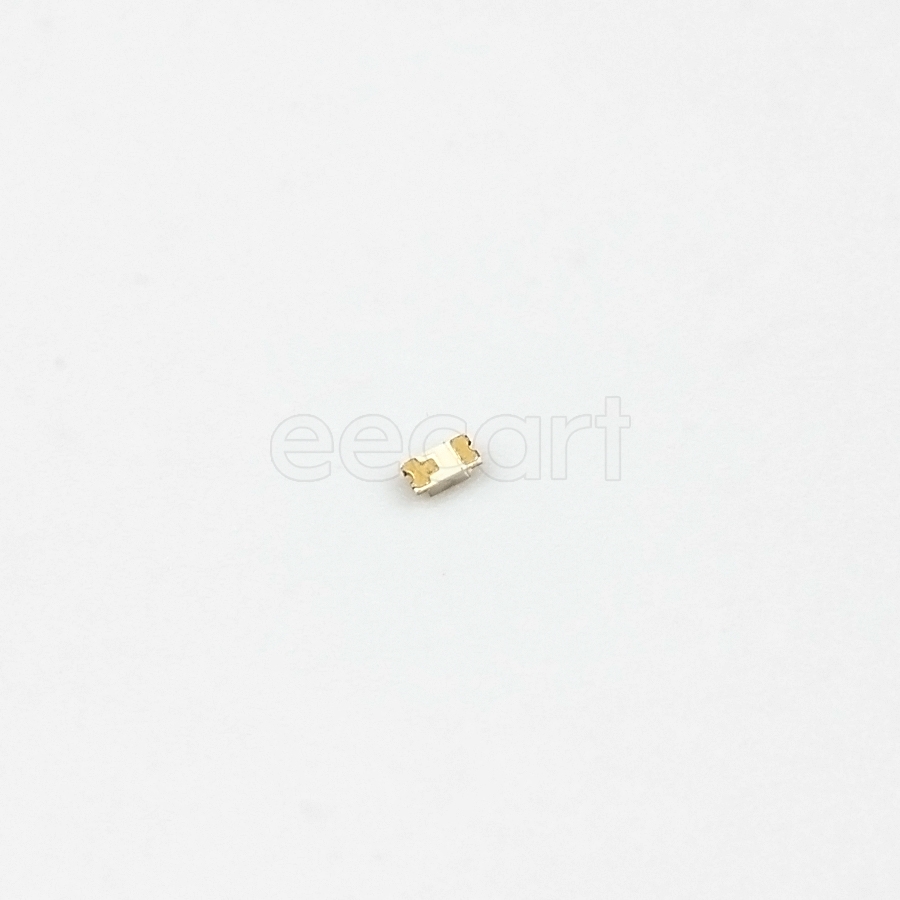

LTST-C191TGKT
Manufacturer:
Lite-On
Mfr.Part #:
LTST-C191TGKT
Datasheet:
Description:
LEDs 0603(1608 Metric) SMD/SMT Green 530 nm 20 mA 3.2 V
| Parameter | Value |
|---|---|
| Length | 1.6 mm |
| Width | 800 µm |
| Max Operating Temperature | 80 °C |
| Min Operating Temperature | -20 °C |
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Number of Pins | 2 |
| Height | 550 µm |
| Packaging | Reel |
| Depth | 800 µm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Number of Elements | 1 |
| Forward Current | 20 mA |
| Forward Voltage | 3.2 V |
| Color | Green |
| Illumination Color | Green |
| Lens Style | Clear, Colorless, Diffused, Rectangular |
| Luminous Intensity | 450 mcd |
| Power Dissipation | 76 mW |
| Number of LEDs | 1 |
| Viewing Angle | 130 ° |
| Wavelength | 530 nm |
| Lens Transparency | Water Clear |
| Lens Color | Clear, Colorless |
| Dominant Wavelength/CCT (K) | 530 nm |
| Reverse Voltage | 5 V |
| Test Current | 20 mA |
| Schedule B | 8541402000 |
Stock: 16649
Distributors
pcbx
pcbxUnit Price$0.07718
Ext.Price$0.07718
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.07718 | $0.07718 |
| 10 | $0.03859 | $0.38590 |
| 50 | $0.03571 | $1.78550 |
| 100 | $0.03304 | $3.30400 |
| 500 | $0.03057 | $15.28500 |
| 1000 | $0.02828 | $28.28000 |
| 3000 | $0.02617 | $78.51000 |
| 5000 | $0.02421 | $121.05000 |
| 10000 | $0.02185 | $218.50000 |
