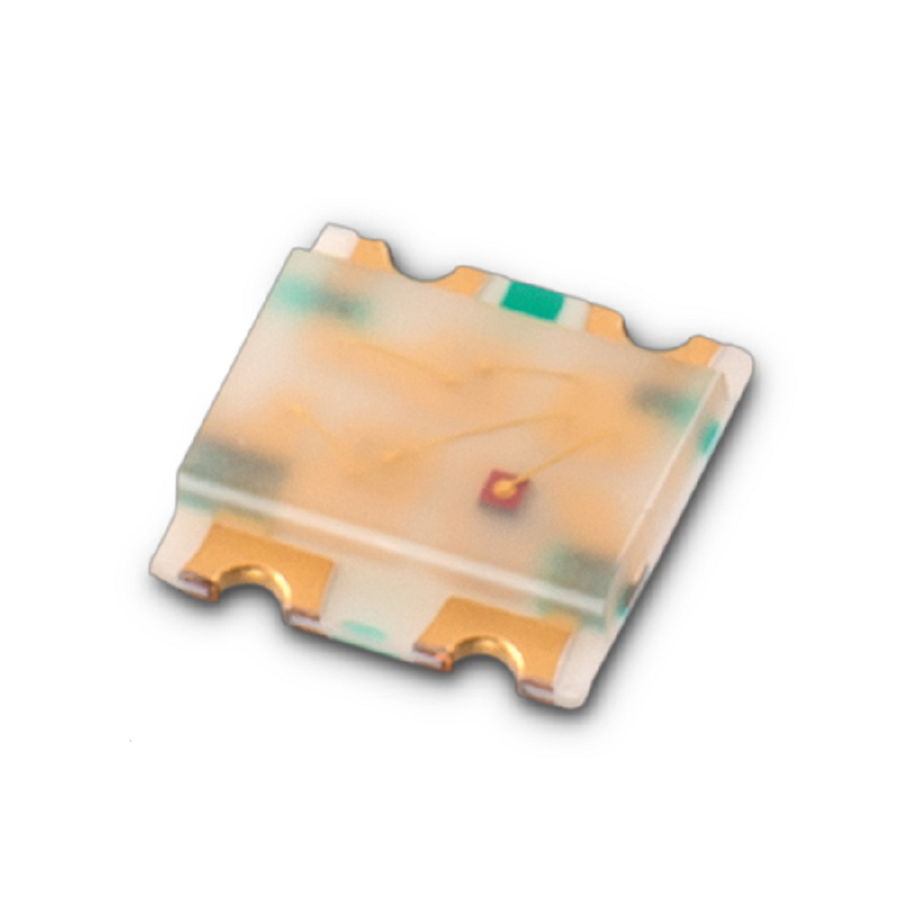

LTST-C195TGKRKT
Manufacturer:
Lite-On
Mfr.Part #:
LTST-C195TGKRKT
Datasheet:
Description:
LEDs SMD SMD/SMT Red, Green 631 nm 20 mA, 20 mA 2 V
| Parameter | Value |
|---|---|
| Length | 1.6 mm |
| Width | 1.5 mm |
| Number of Pins | 4 |
| Height | 550 µm |
| Packaging | Reel |
| RoHS | Compliant |
| Forward Voltage | 2 V |
| Color | Green, Red |
| Illumination Color | Red, Green |
| Lens Style | Colorless, Diffused, Rectangular |
| Luminous Intensity | 196 mcd |
| Number of LEDs | 2 |
| Viewing Angle | 130 ° |
| Wavelength | 631 nm, 525 nm |
| Lens Transparency | Clear |
| Lens Color | Colorless |
| Dominant Wavelength/CCT (K) | 631 nm |
| Test Current | 20 mA |
| Forward Current | 20 mA, 20 mA |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 80 °C |
Stock: 18793
Distributors
pcbx
pcbxUnit Price$0.09388
Ext.Price$0.09388
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.09388 | $0.09388 |
| 10 | $0.04694 | $0.46940 |
| 50 | $0.04257 | $2.12850 |
| 100 | $0.03861 | $3.86100 |
| 500 | $0.03451 | $17.25500 |
| 1000 | $0.03085 | $30.85000 |
| 3000 | $0.02793 | $83.79000 |
| 5000 | $0.02528 | $126.40000 |
