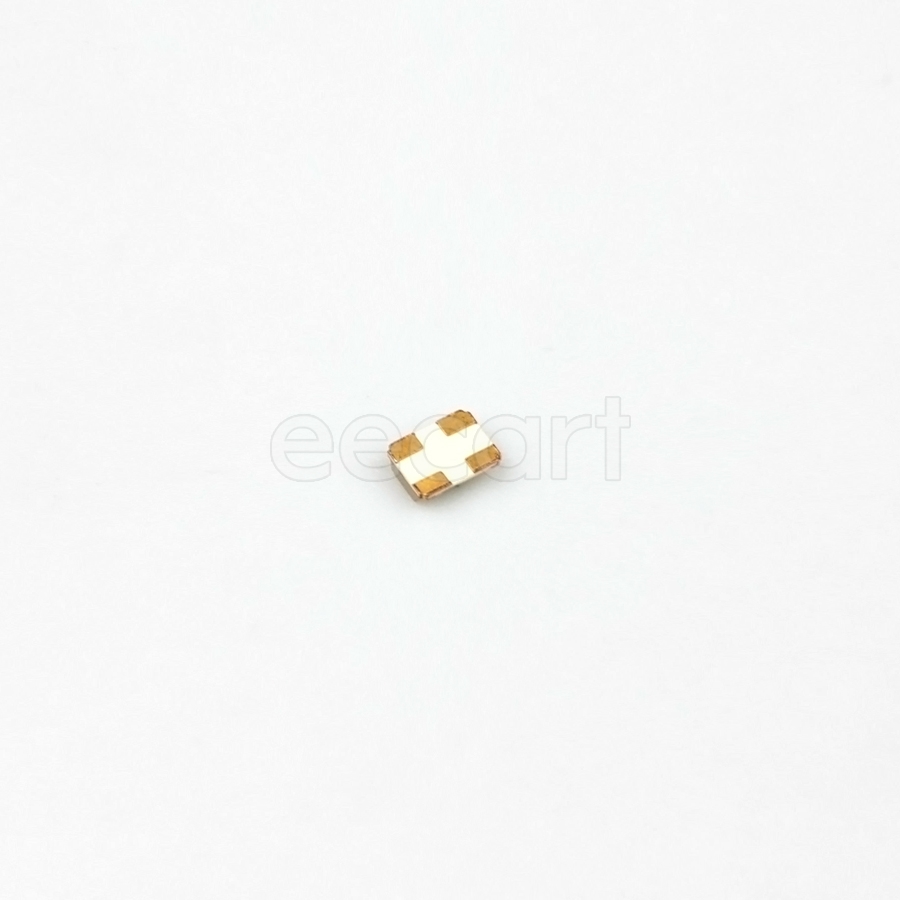

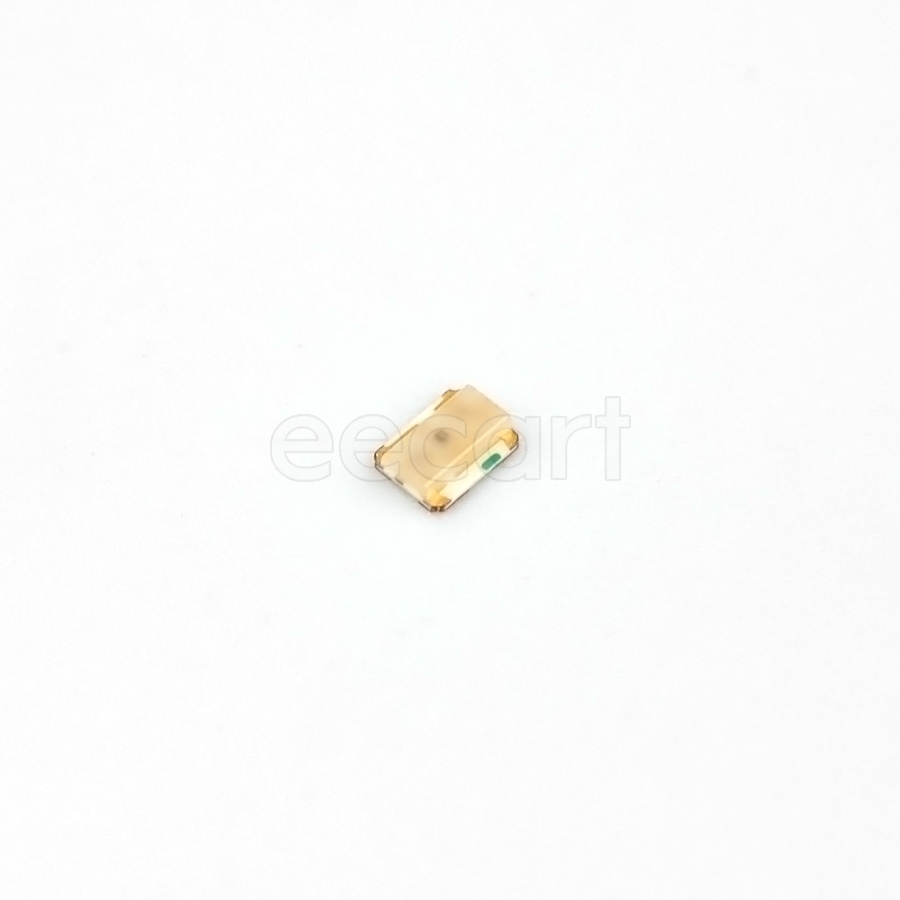

LTST-C19FD1WT
Manufacturer:
Lite-On
Mfr.Part #:
LTST-C19FD1WT
Datasheet:
Description:
LEDs SMD/SMT SMD/SMT 470 nm 20 mA 3.5 V
| Parameter | Value |
|---|---|
| Length | 2.1 mm |
| Width | 1.6 mm |
| Max Operating Temperature | 80 °C |
| Min Operating Temperature | -20 °C |
| Number of Pins | 4 |
| Height | 550 µm |
| Packaging | Reel |
| Depth | 1.6 mm |
| Radiation Hardening | No |
| Manufacturer Package Identifier | LTST-C19FD1WT |
| Number of Elements | 3 |
| Forward Current | 20 mA |
| Forward Voltage | 3.5 V |
| Color | Blue, Green |
| Lens Style | Colorless, Diffused, Rectangular |
| Luminous Intensity | 180 mcd |
| Number of LEDs | 3 |
| Viewing Angle | 130 ° |
| Wavelength | 470 nm, 525 nm, 605 nm |
| Lens Transparency | Diffused |
| Lens Color | Clear, White |
| Dominant Wavelength/CCT (K) | 470 nm |
| Reverse Voltage | 5 V |
| Test Current | 20 mA |
| RoHS | Compliant |
Stock: 2339
Distributors
pcbx
pcbxUnit Price$0.12240
Ext.Price$0.12240
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.12240 | $0.12240 |
| 10 | $0.10964 | $1.09640 |
| 50 | $0.09821 | $4.91050 |
| 100 | $0.08746 | $8.74600 |
| 500 | $0.07789 | $38.94500 |
| 1000 | $0.07454 | $74.54000 |
| 3000 | $0.07134 | $214.02000 |
| 5000 | $0.06762 | $338.10000 |
