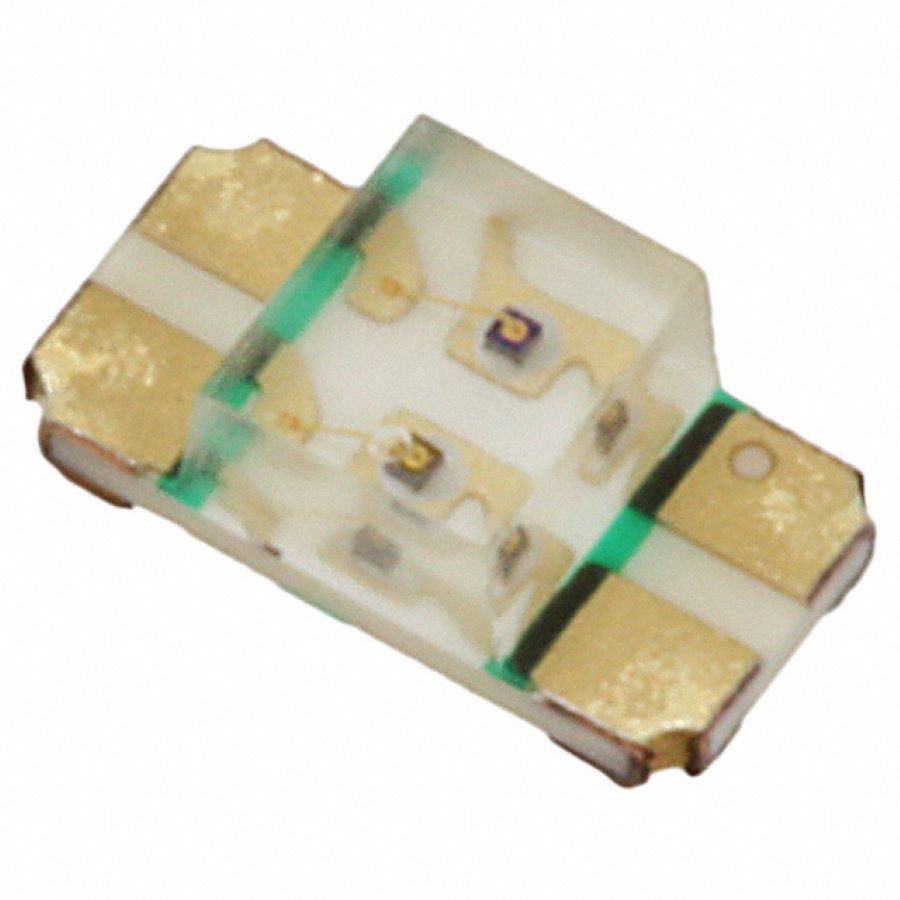

LTST-C235KGKRKT
Manufacturer:
Lite-On
Mfr.Part #:
LTST-C235KGKRKT
Datasheet:
Description:
LEDs 1206(3216 Metric) SMD/SMT Red, Green 631 nm, 571 nm 20 mA 2 V, 2 V
| Parameter | Value |
|---|---|
| Length | 3.2 mm |
| Width | 1.6 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -30 °C |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Number of Pins | 4 |
| Power Rating | 75 mW |
| Height | 1.1 mm |
| Packaging | Reel |
| Depth | 1.6 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Number of Elements | 2 |
| Forward Current | 20 mA |
| Forward Voltage | 2 V, 2 V |
| Color | Green, Red |
| Illumination Color | Red, Green |
| Lens Style | Clear, Colorless, Diffused, Rectangular |
| Luminous Intensity | 45 mcd |
| Power Dissipation | 75 mW |
| Number of LEDs | 2 |
| Viewing Angle | 130 ° |
| Lens Transparency | Water Clear |
| Lens Color | Colorless |
| Dominant Wavelength/CCT (K) | 631 nm, 571 nm |
| Reverse Voltage | 5 V |
| Test Current | 20 mA |
| Schedule B | 8541402000 |
Stock: 13998
Distributors
pcbx
pcbxUnit Price$0.13748
Ext.Price$0.13748
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.13748 | $0.13748 |
| 10 | $0.06874 | $0.68740 |
| 50 | $0.06192 | $3.09600 |
| 100 | $0.05578 | $5.57800 |
| 500 | $0.05162 | $25.81000 |
| 1000 | $0.04777 | $47.77000 |
| 3000 | $0.04420 | $132.60000 |
| 5000 | $0.03793 | $189.65000 |
