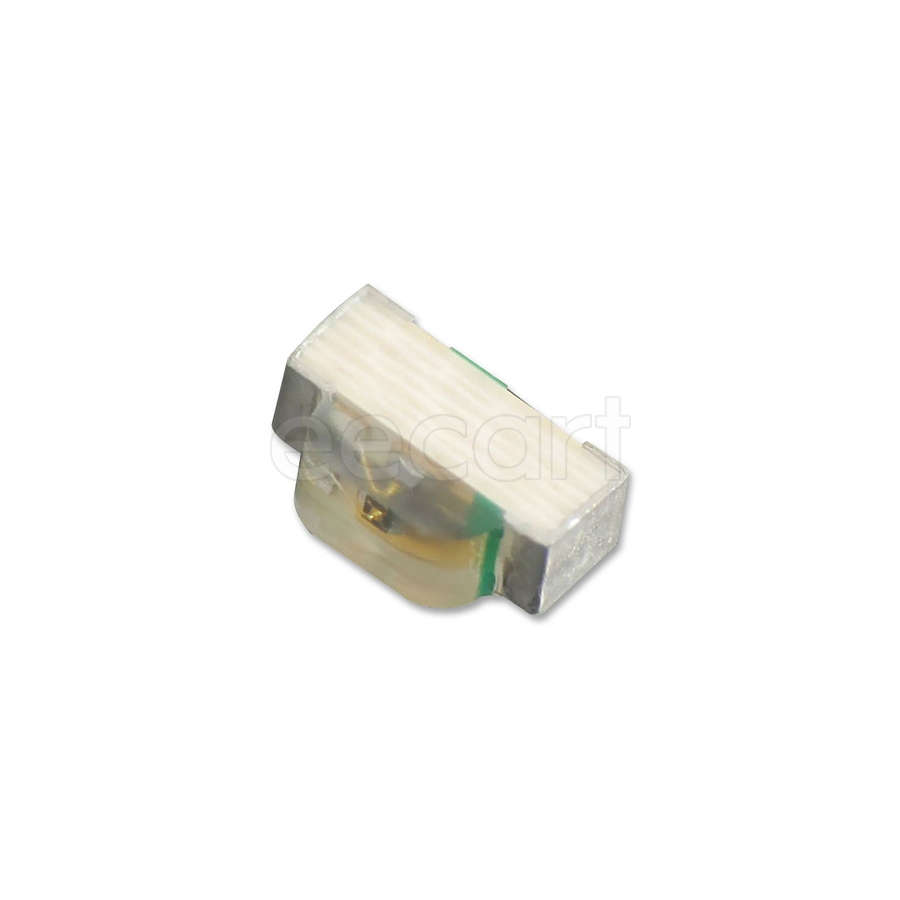

LTST-S220KGKT
Manufacturer:
Lite-On
Mfr.Part #:
LTST-S220KGKT
Datasheet:
Description:
LEDs 0805(2012 Metric) SMD/SMT Green 571 nm 30 mA 2 V
| Parameter | Value |
|---|---|
| Length | 2.1 mm |
| Width | 1 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -55 °C |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Number of Pins | 2 |
| Power Rating | 75 mW |
| Height | 600 µm |
| Packaging | Reel |
| Depth | 600 µm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Number of Elements | 1 |
| Forward Current | 30 mA |
| Forward Voltage | 2 V |
| Color | Green |
| Illumination Color | Green |
| Lens Style | Clear |
| Luminous Intensity | 35 mcd |
| Power Dissipation | 75 mW |
| Number of LEDs | 1 |
| Viewing Angle | 130 ° |
| Wavelength | 574 nm |
| Lens Transparency | Clear |
| Lens Color | Clear, Colorless |
| Dominant Wavelength/CCT (K) | 571 nm |
| Reverse Voltage | 5 V |
| Test Current | 20 mA |
| Schedule B | 8541402000 |
Stock: 6112
Distributors
pcbx
pcbxUnit Price$0.09370
Ext.Price$0.09370
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.09370 | $0.09370 |
| 10 | $0.04685 | $0.46850 |
| 50 | $0.04258 | $2.12900 |
| 100 | $0.03870 | $3.87000 |
| 500 | $0.03471 | $17.35500 |
| 1000 | $0.03114 | $31.14000 |
| 3000 | $0.02756 | $82.68000 |
| 5000 | $0.02440 | $122.00000 |
