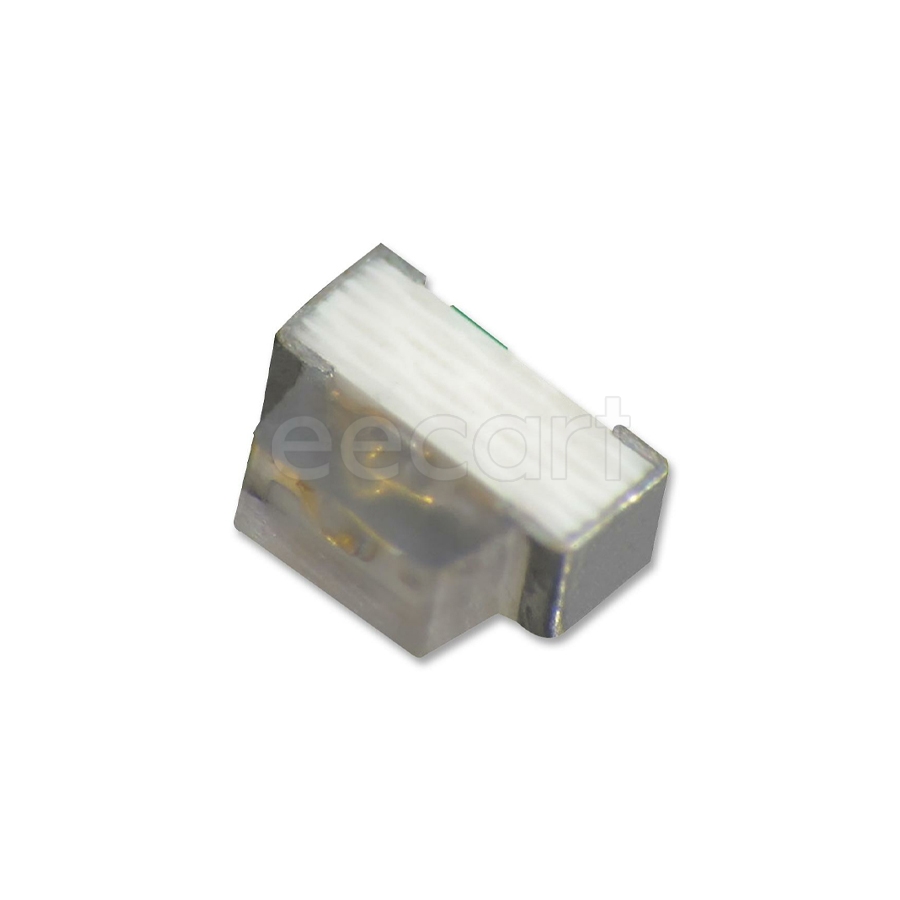

LTST-S270KGKT
Manufacturer:
Lite-On
Mfr.Part #:
LTST-S270KGKT
Datasheet:
Description:
LEDs 0603(1608 Metric) SMD/SMT Green 571 nm 20 mA 2 V
| Parameter | Value |
|---|---|
| Length | 1.6 mm |
| Width | 1.15 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -55 °C |
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Number of Pins | 2 |
| Power Rating | 75 mW |
| Height | 600 µm |
| Packaging | Reel |
| Depth | 600 µm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Number of Elements | 1 |
| Forward Current | 20 mA |
| Forward Voltage | 2 V |
| Color | Green |
| Illumination Color | Green |
| Lens Style | Clear |
| Luminous Intensity | 71 mcd |
| Power Dissipation | 75 mW |
| Number of LEDs | 1 |
| Viewing Angle | 130 ° |
| Wavelength | 574 nm |
| Lens Transparency | Water Clear |
| Lens Color | Clear, Colorless |
| Dominant Wavelength/CCT (K) | 571 nm |
| Reverse Voltage | 5 V |
| Test Current | 20 mA |
| Schedule B | 8541402000 |
Stock: 44138
Distributors
pcbx
pcbxUnit Price$0.05204
Ext.Price$0.05204
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.05204 | $0.05204 |
| 10 | $0.02602 | $0.26020 |
| 50 | $0.02350 | $1.17500 |
| 100 | $0.02122 | $2.12200 |
| 500 | $0.01916 | $9.58000 |
| 1000 | $0.01730 | $17.30000 |
| 3000 | $0.01562 | $46.86000 |
| 5000 | $0.01411 | $70.55000 |
| 10000 | $0.01274 | $127.40000 |
