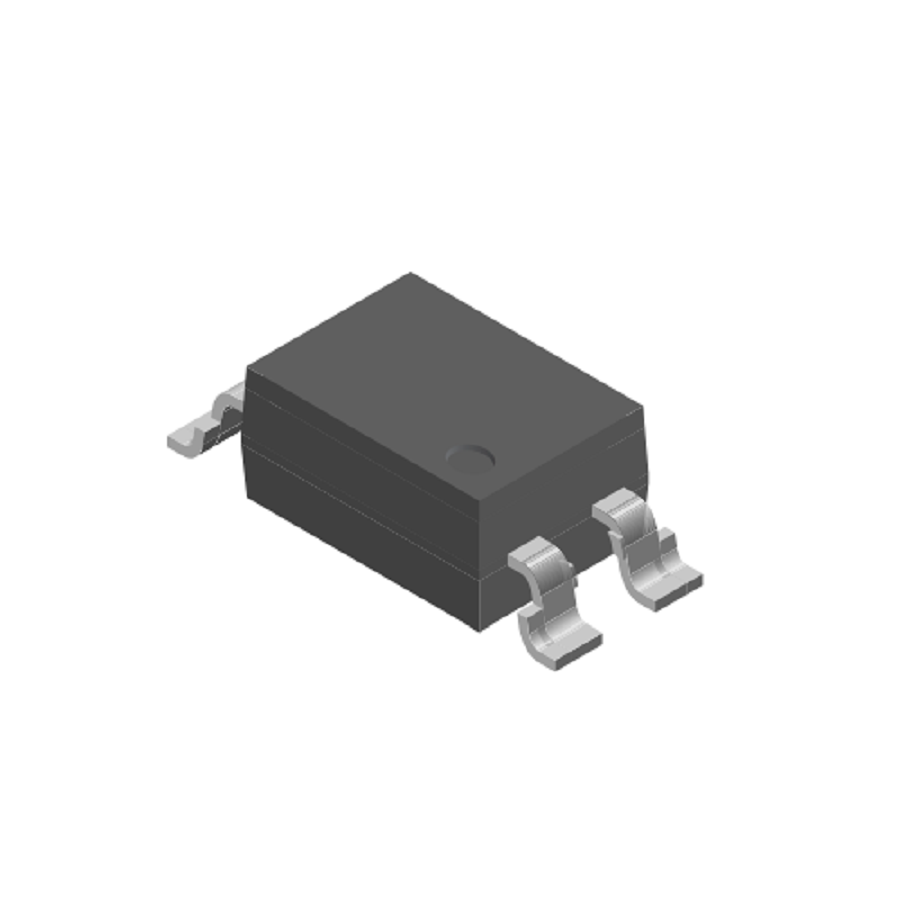

LTV-817S
Manufacturer:
Lite-On
Mfr.Part #:
LTV-817S
Datasheet:
Description:
Optocouplers SMD-4, Gull Wing SMD/SMT number of channels:1 NPN Phototransistor 20 mA 1.2 V Rise Time:18 µs Fall Time :18 µs
| Parameter | Value |
|---|---|
| Max Operating Temperature | 110 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 4 |
| Height | 4.6 mm |
| Packaging | Tube |
| Radiation Hardening | No |
| RoHS | Compliant |
| Number of Elements | 1 |
| Output Current | 50 mA |
| Output Voltage | 35 V |
| Number of Circuits | 1 |
| Forward Current | 20 mA |
| Forward Voltage | 1.2 V |
| Output Type | NPN Phototransistor |
| Max Power Dissipation | 200 mW |
| Power Dissipation | 200 mW |
| Number of Channels | 1 |
| Max Collector Current | 50 mA |
| Collector Emitter Breakdown Voltage | 35 V |
| Fall Time | 18 µs |
| Rise Time | 18 µs |
| Collector Emitter Voltage (VCEO) | 35 V |
| Isolation Voltage | 5 kV |
| Current Transfer Ratio | 600 % |
| Output Current per Channel | 50 mA |
| Reverse Breakdown Voltage | 6 V |
| Max Input Current | 50 mA |
| Max Output Voltage | 35 V |
| Reverse Voltage (DC) | 6 V |
| Collector Emitter Saturation Voltage | 100 mV |
| Schedule B | 8541408000 |
Stock: 8818
Distributors
pcbx
pcbxUnit Price$0.19407
Ext.Price$0.19407
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.19407 | $0.19407 |
| 10 | $0.12910 | $1.29100 |
| 50 | $0.11069 | $5.53450 |
| 100 | $0.09490 | $9.49000 |
| 500 | $0.07883 | $39.41500 |
| 1000 | $0.06882 | $68.82000 |
| 3000 | $0.06594 | $197.82000 |
| 5000 | $0.06318 | $315.90000 |
| 10000 | $0.05942 | $594.20000 |
