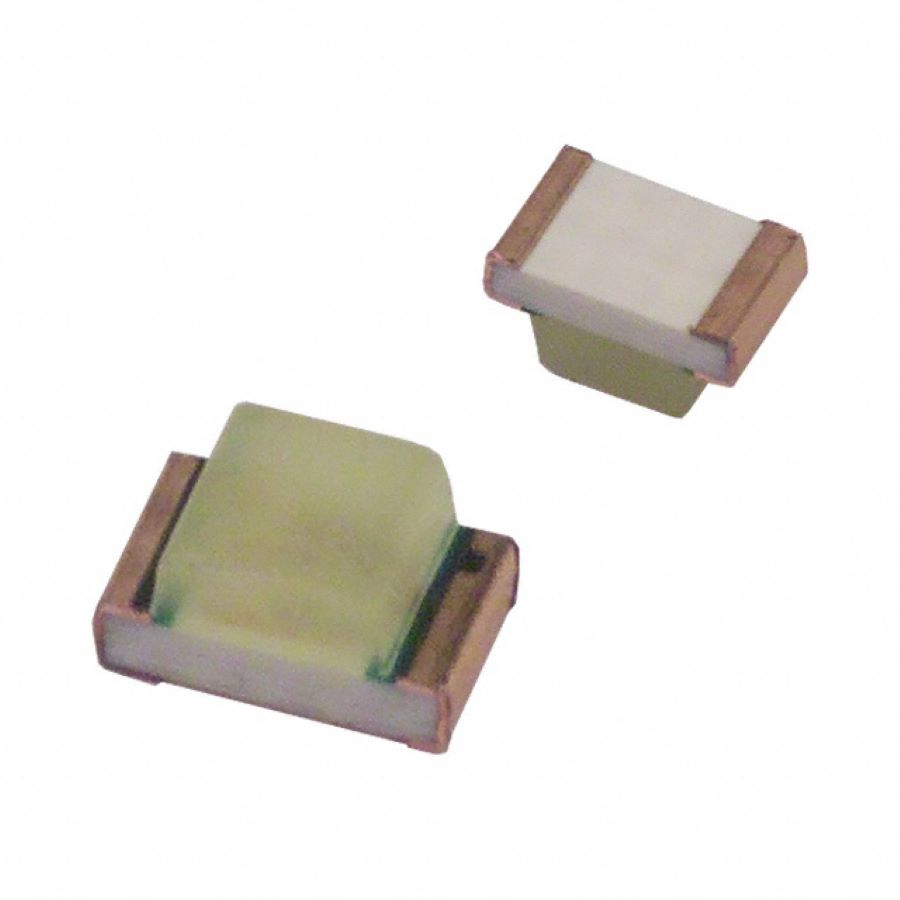

LTW-170TK
Manufacturer:
Lite-On
Mfr.Part #:
LTW-170TK
Datasheet:
Description:
LEDs 0805(2012 Metric) SMD/SMT White 20 mA 3.8 V
| Parameter | Value |
|---|---|
| Length | 2 mm |
| Width | 1.25 mm |
| Max Operating Temperature | 80 °C |
| Min Operating Temperature | -20 °C |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Number of Pins | 2 |
| Power Rating | 70 mW |
| Height | 1.1 mm |
| Packaging | Reel |
| Depth | 1.25 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Number of Elements | 1 |
| Forward Current | 20 mA |
| Forward Voltage | 3.8 V |
| Color | White |
| Illumination Color | White |
| Lens Style | Diffused |
| Luminous Intensity | 450 mcd |
| Power Dissipation | 70 mW |
| Number of LEDs | 1 |
| Viewing Angle | 130 ° |
| Wavelength | 468 nm |
| Lens Transparency | Non-Diffused |
| Lens Color | Clear |
| Reverse Voltage | 5 V |
| Test Current | 20 mA |
| Schedule B | 8541402000 |
Stock: 17613
Distributors
pcbx
pcbxUnit Price$0.10580
Ext.Price$0.10580
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.10580 | $0.10580 |
| 10 | $0.05290 | $0.52900 |
| 50 | $0.04757 | $2.37850 |
| 100 | $0.04278 | $4.27800 |
| 500 | $0.03955 | $19.77500 |
| 1000 | $0.03657 | $36.57000 |
| 3000 | $0.03381 | $101.43000 |
| 5000 | $0.02901 | $145.05000 |
