LTW-2S3D8
Manufacturer:
Lite-On
Mfr.Part #:
LTW-2S3D8
Datasheet:
Description:

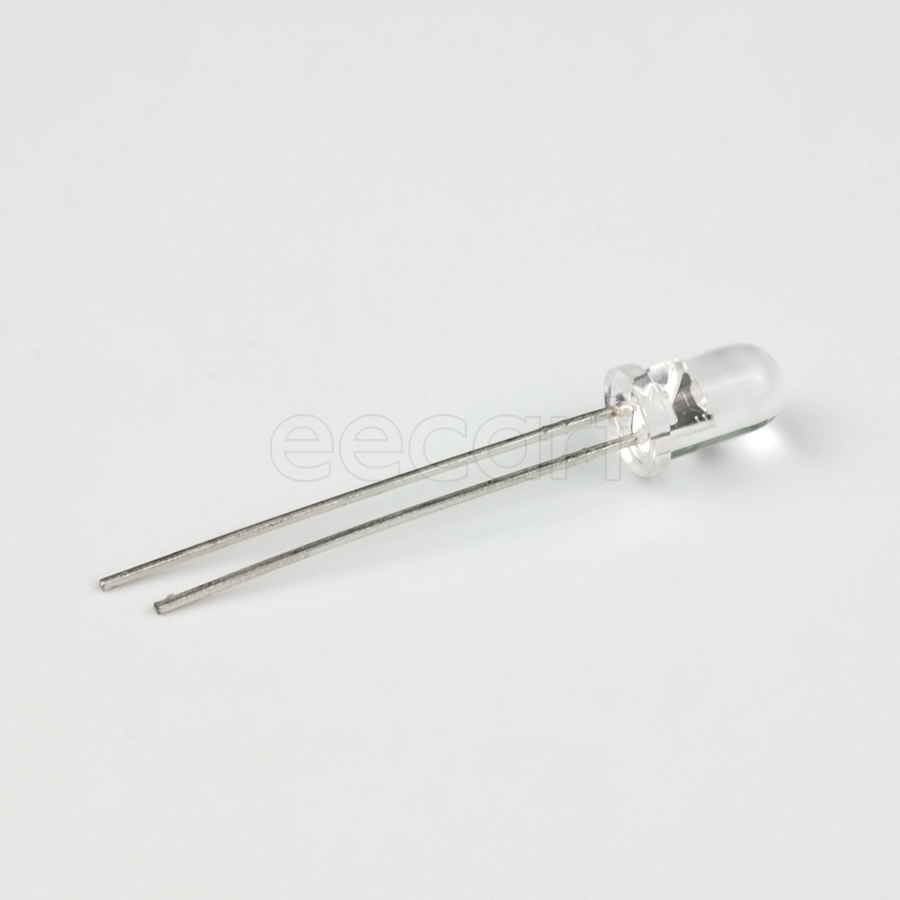

LEDs 8.7mmL×5.00mmH Through Hole White 30 mA 3.3 V
| Parameter | Value |
|---|---|
| Length | 5.9 mm |
| Max Operating Temperature | 80 °C |
| Min Operating Temperature | -30 °C |
| Number of Pins | 2 |
| Height | 8.7 mm |
| Depth | 5.9 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Number of Elements | 1 |
| Forward Current | 30 mA |
| Forward Voltage | 3.3 V |
| Color | White |
| Illumination Color | White |
| Lens Style | Circular, Colorless, Diffused, Dome, Round |
| Luminous Intensity | 17 cd |
| Power Dissipation | 120 mW |
| Number of LEDs | 1 |
| Viewing Angle | 15 ° |
| Lens Transparency | Clear |
| Lens Color | Clear, Colorless |
| Reverse Voltage | 5 V |
| Test Current | 20 mA |
| Packaging | Bulk |
Stock: 48414
Distributors
pcbx
pcbxUnit Price$0.32533
Ext.Price$0.32533
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.32533 | $0.32533 |
| 10 | $0.22213 | $2.22130 |
| 50 | $0.18837 | $9.41850 |
| 100 | $0.15974 | $15.97400 |
| 500 | $0.13154 | $65.77000 |
| 1000 | $0.12227 | $122.27000 |
| 3000 | $0.11372 | $341.16000 |
| 5000 | $0.10576 | $528.80000 |
| 10000 | $0.10037 | $1003.70000 |
