LTW-C191TS5
Manufacturer:
Lite-On
Mfr.Part #:
LTW-C191TS5
Datasheet:
Description:

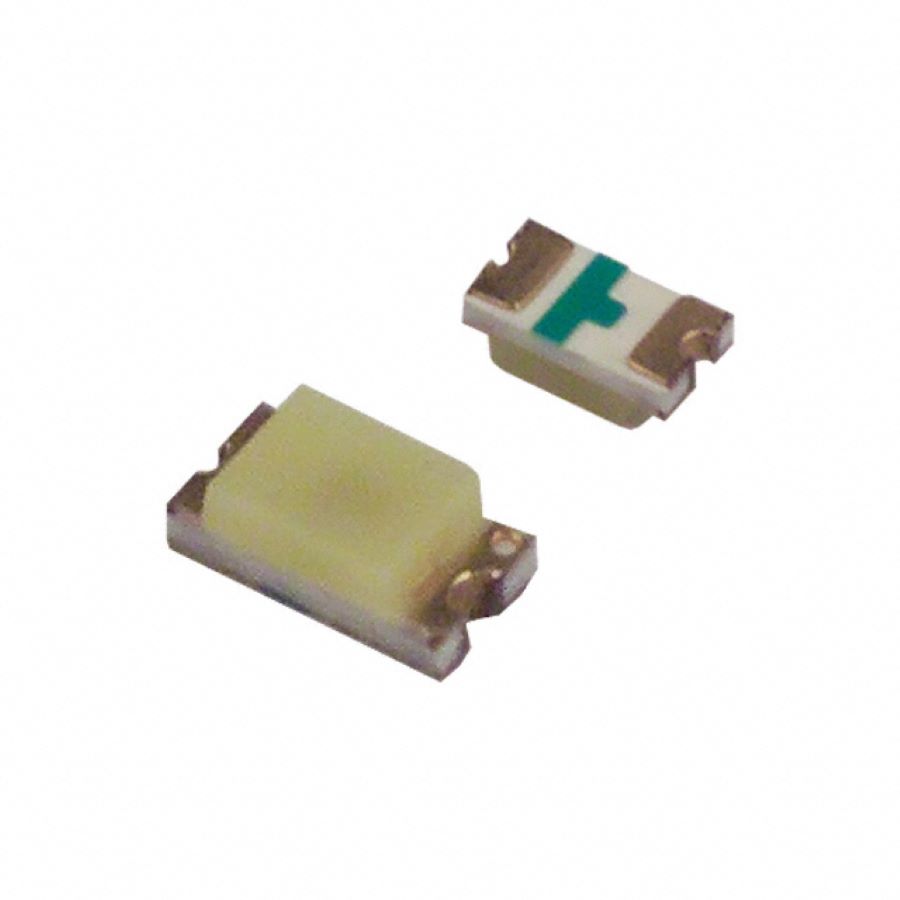

LEDs 0603(1608 Metric) SMD/SMT White 20 mA 3.15 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 50 V |
| Tolerance | 1 % |
| Length | 1.6 mm |
| Width | 800 µm |
| Max Operating Temperature | 80 °C |
| Min Operating Temperature | -20 °C |
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Number of Pins | 2 |
| Resistance | 12 Ω |
| Power Rating | 70 mW |
| Height | 450 µm |
| Packaging | Reel |
| Voltage Rating | 50 V |
| Depth | 800 µm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Number of Elements | 1 |
| Forward Current | 20 mA |
| Forward Voltage | 3.15 V |
| Color | White |
| Illumination Color | White |
| Lens Style | Diffused |
| Luminous Intensity | 112 mcd |
| Power Dissipation | 70 mW |
| Number of LEDs | 1 |
| Viewing Angle | 130 ° |
| Lens Color | Clear |
| Reverse Voltage | 5 V |
| Test Current | 5 mA |
| Schedule B | 8541402000 |
Stock: 7849
Distributors
pcbx
pcbxUnit Price$0.05856
Ext.Price$0.05856
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.05856 | $0.05856 |
| 10 | $0.02928 | $0.29280 |
| 50 | $0.02701 | $1.35050 |
| 100 | $0.02491 | $2.49100 |
| 500 | $0.02298 | $11.49000 |
| 1000 | $0.02120 | $21.20000 |
| 3000 | $0.01955 | $58.65000 |
| 5000 | $0.01803 | $90.15000 |
| 10000 | $0.01627 | $162.70000 |
