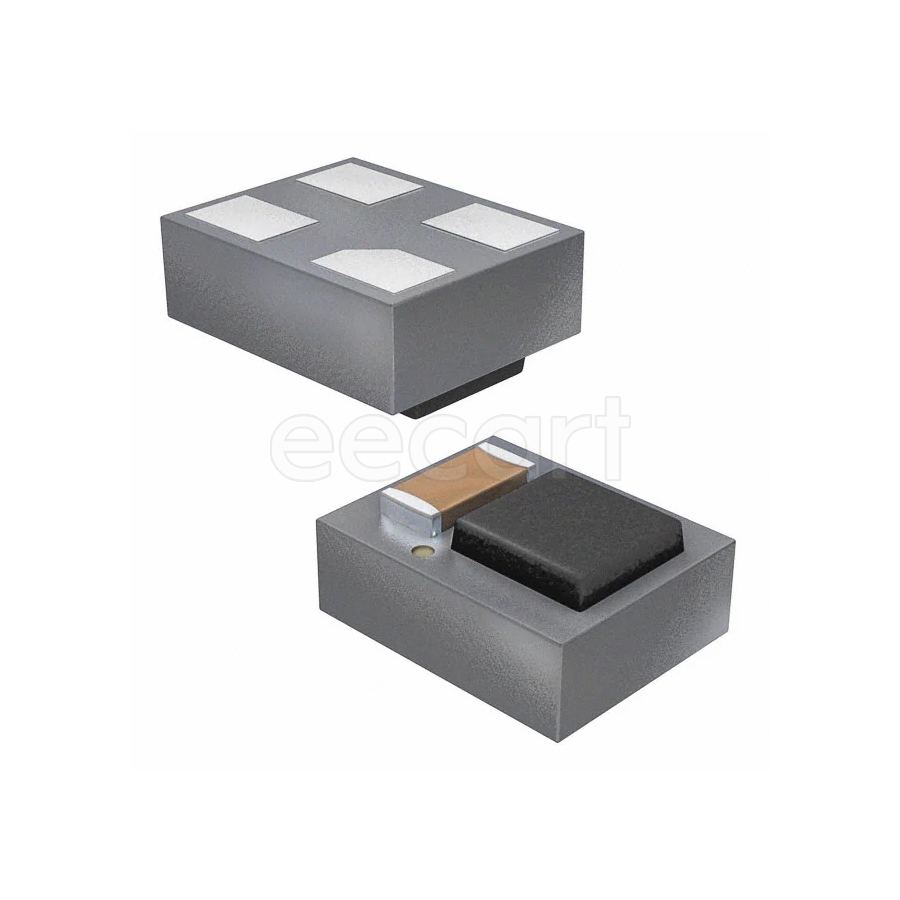

LXDC2HL33A-055
Manufacturer:
Murata
Mfr.Part #:
LXDC2HL33A-055
Datasheet:
Description:
DC to DC Converters SMD-4 Module SMD/SMT Nominal Input Voltage:3.6 V Min Input Voltage:2.3 V Max Input Voltage:5.5 V 88 %
| Parameter | Value |
|---|---|
| Length | 2.5 mm |
| Width | 2 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 4 |
| Height | 1.1 mm |
| Packaging | Reel |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Features | OCP, UVLO |
| Min Input Voltage | 2.3 V |
| Output Current | 600 mA |
| Output Voltage | 3.3 V |
| Output Type | Fixed |
| Max Power Dissipation | 1 W |
| Max Output Current | 300 mA |
| Switching Frequency | 3.5 MHz |
| Max Input Voltage | 5.5 V |
| Number of Outputs | 1 |
| Current - Output 1 | 300 mA |
| Efficiency | 88 % |
| Voltage - Output 1 | 3.3 V |
| Nominal Input Voltage | 3.6 V |
| Output Current-Channel 1 | 300 mA |
| Output Voltage-Channel 1 | 3.3 V |
