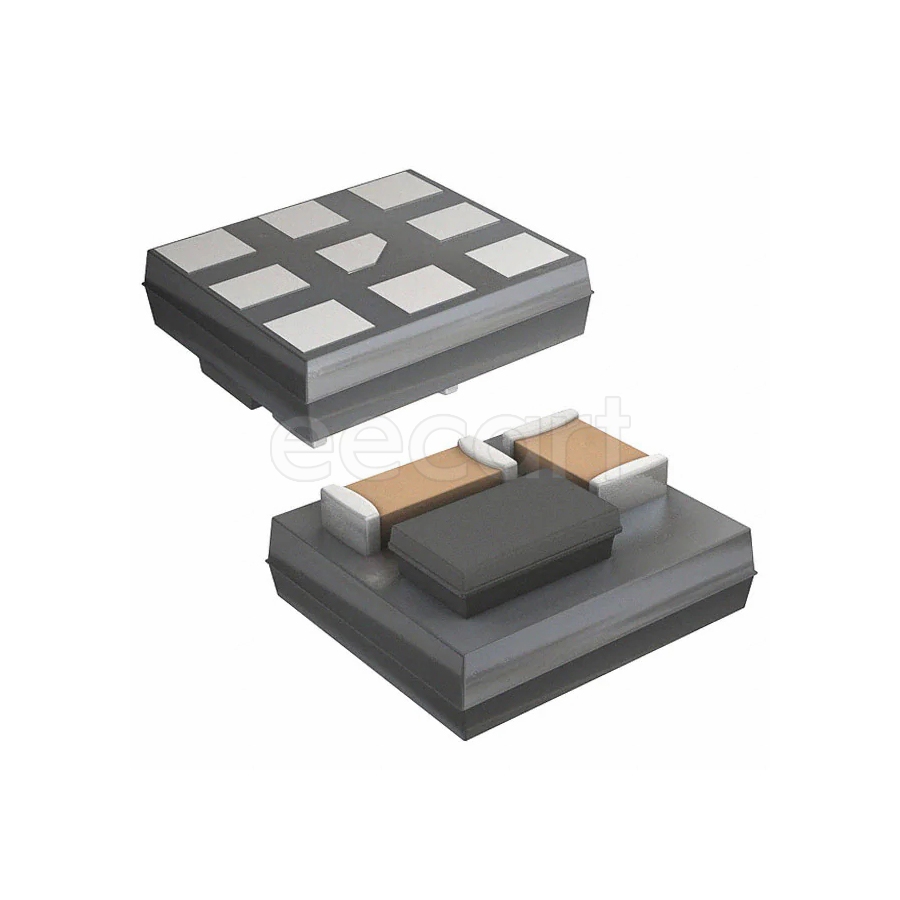

LXDC2UR33A-122
Manufacturer:
Murata
Mfr.Part #:
LXDC2UR33A-122
Datasheet:
Description:
DC to DC Converters SMD-9 SMD/SMT Nominal Input Voltage:2.7 V to 5.5 V Min Input Voltage:3.6 V Max Input Voltage:5.5 V 90 %
| Parameter | Value |
|---|---|
| Length | 2.5 mm |
| Width | 2.3 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 9 |
| Height | 1.3 mm |
| Packaging | Reel |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Features | UVLO |
| Min Input Voltage | 3.6 V |
| Output Voltage | 3.3 V |
| Operating Supply Voltage | 5.5 V |
| Max Power Dissipation | 2 W |
| Max Output Current | 600 mA |
| Switching Frequency | 7 MHz |
| Max Input Voltage | 5.5 V |
| Number of Outputs | 1 |
| Output Power | 1.98 W |
| Current - Output 1 | 600 mA |
| Efficiency | 90 % |
| Voltage - Output 1 | 3.3 V |
| Nominal Input Voltage | 2.7 V to 5.5 V |
| Output Current-Channel 1 | 600 mA |
| Output Voltage-Channel 1 | 3.3 V |
