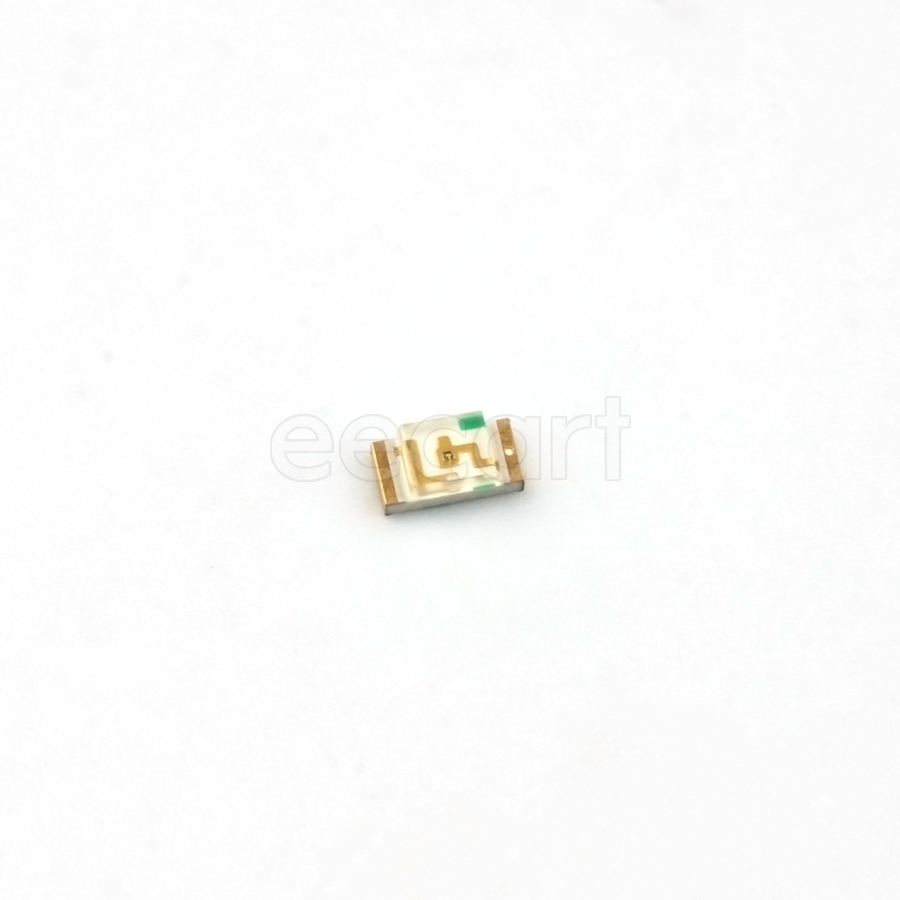

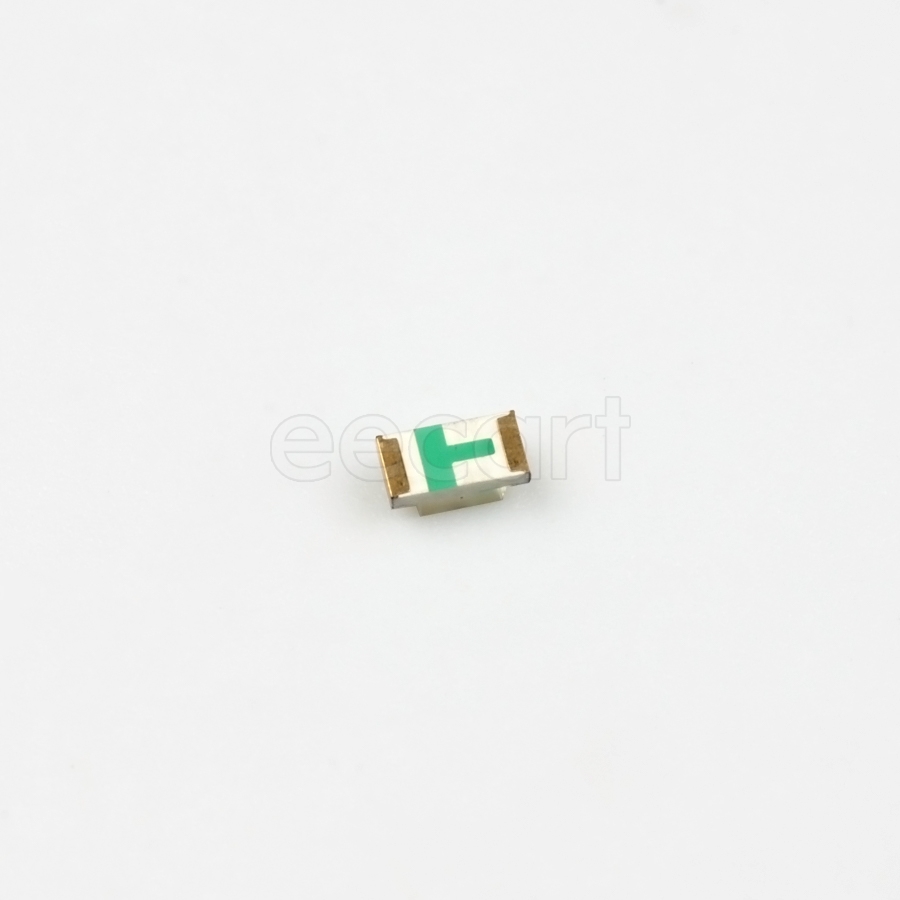

LTST-C170EKT
Manufacturer:
Lite-On
Mfr.Part #:
LTST-C170EKT
Datasheet:
Description:
LEDs 0805(2012 Metric) SMD/SMT Red 621 nm 30 mA 2 V
| Parameter | Value |
|---|---|
| Length | 2 mm |
| Width | 1.25 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -55 °C |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Number of Pins | 2 |
| Power Rating | 100 mW |
| Height | 1.1 mm |
| Packaging | Reel |
| Depth | 1.25 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Voltage | 5 V |
| Number of Elements | 1 |
| Current | 4 A |
| Forward Current | 30 mA |
| Forward Voltage | 2 V |
| Color | Red |
| Illumination Color | Red |
| Lens Style | Clear |
| Luminous Intensity | 2 mcd |
| Power Dissipation | 100 mW |
| Number of LEDs | 1 |
| Viewing Angle | 130 ° |
| Wavelength | 630 nm |
| Lens Transparency | Clear |
| Lens Color | Clear, Colorless |
| Dominant Wavelength/CCT (K) | 621 nm |
| Reverse Voltage | 5 V |
| Test Current | 10 mA |
| Schedule B | 8541402000 |
Stock: 1506
Distributors
pcbx
pcbxUnit Price$0.11883
Ext.Price$0.11883
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.11883 | $0.11883 |
| 10 | $0.07763 | $0.77630 |
| 50 | $0.06537 | $3.26850 |
| 100 | $0.05505 | $5.50500 |
| 500 | $0.04377 | $21.88500 |
| 1000 | $0.04001 | $40.01000 |
| 3000 | $0.03565 | $106.95000 |
| 5000 | $0.02988 | $149.40000 |
| 10000 | $0.02505 | $250.50000 |
