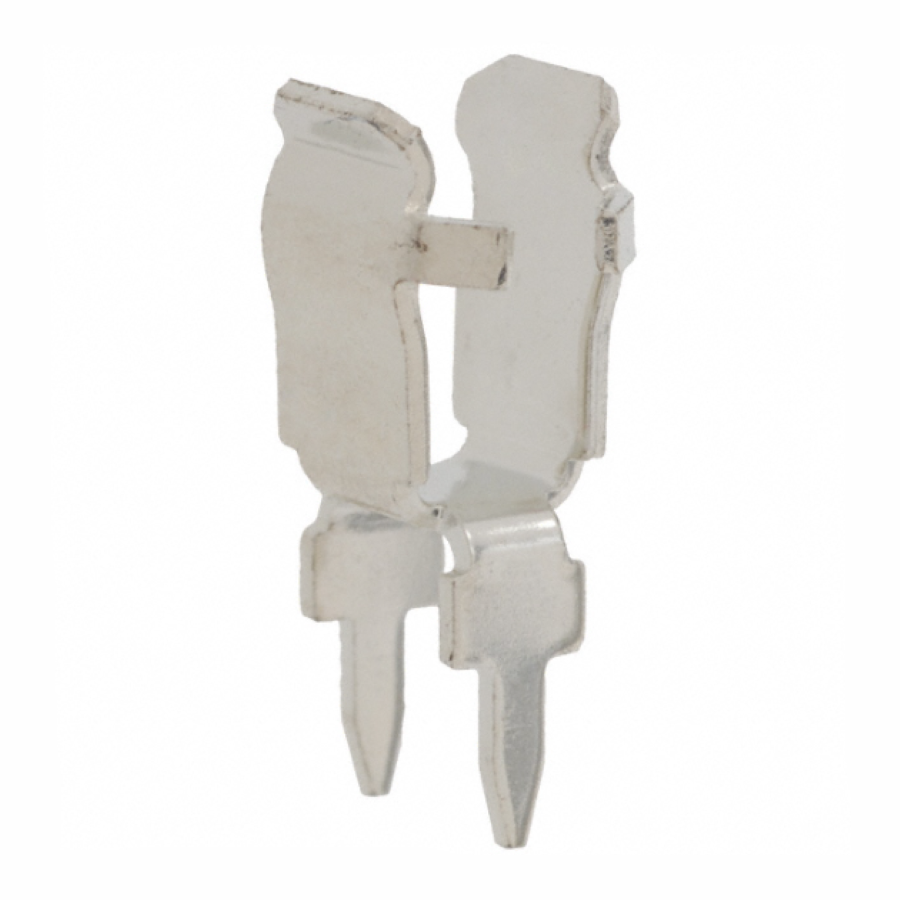

01000056Z
Manufacturer:
Littelfuse
Mfr.Part #:
01000056Z
Datasheet:
Description:
Fuse Holders PCB, Panel 10 A 250 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 4.1 mm |
| Width | 5.9 mm |
| Termination | PC Pin |
| Voltage Rating (AC) | 250 V |
| Height | 10.6 mm |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Depth | 5.9 mm |
| RoHS | Compliant |
| Voltage | 250 V |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Type | Cartridge |
| Current Rating | 10 A |
| Number of Circuits | 1 |
| Orientation | Horizontal |
| Body Material | Brass |
| Fuse Current | 10 A |
| Size | 0.197" Dia (5 mm) |
| For Use With | 5mm Dia Fuses |
Stock: 1956
Distributors
pcbx
pcbxUnit Price$0.14208
Ext.Price$0.14208
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.14208 | $0.14208 |
| 10 | $0.12611 | $1.26110 |
| 50 | $0.11194 | $5.59700 |
| 100 | $0.09680 | $9.68000 |
| 500 | $0.08371 | $41.85500 |
| 1000 | $0.07807 | $78.07000 |
| 3000 | $0.07281 | $218.43000 |
