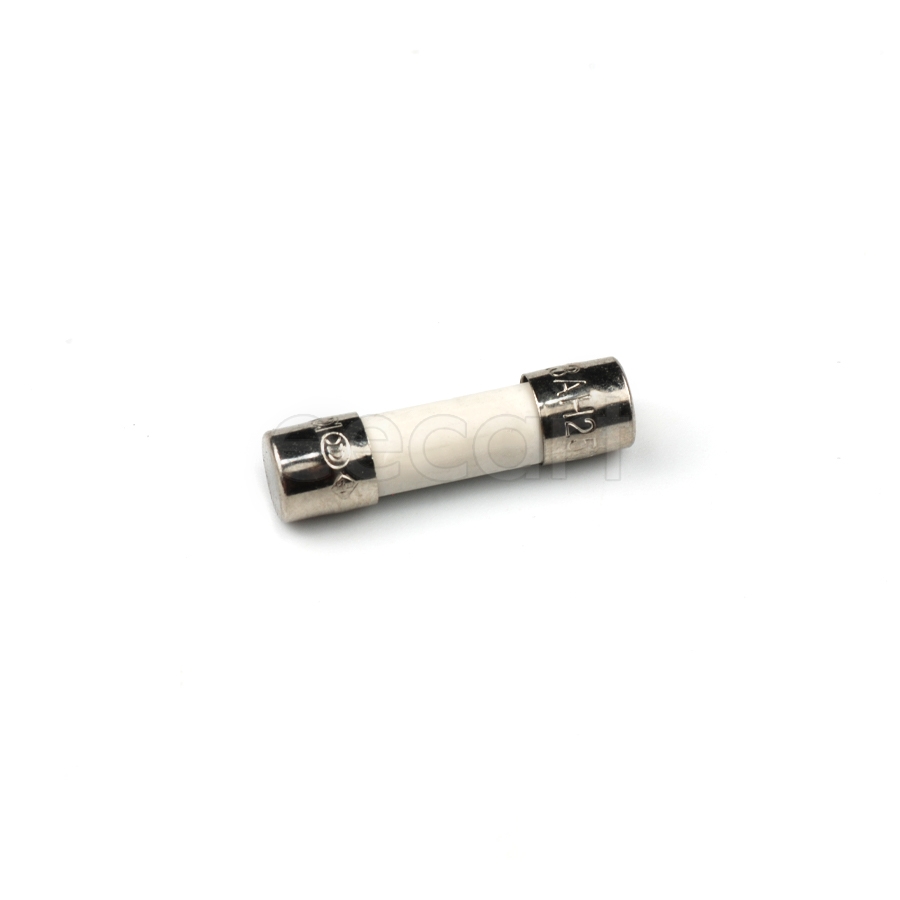

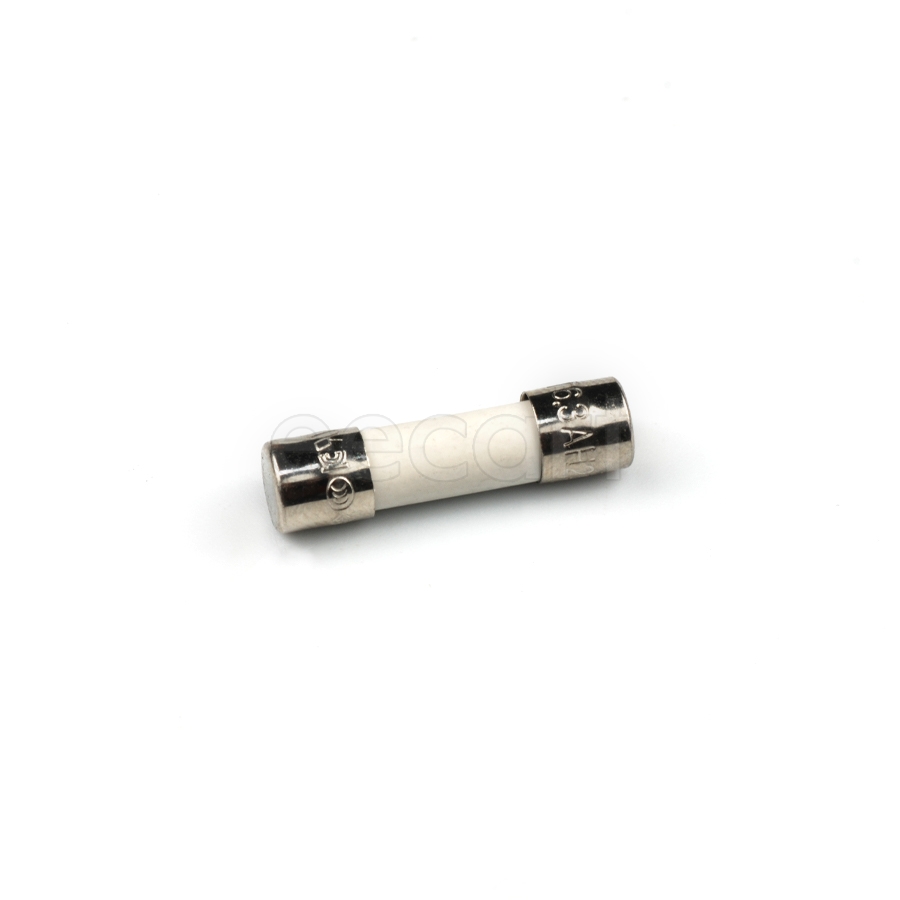

021506.3MXP
Manufacturer:
Littelfuse
Mfr.Part #:
021506.3MXP
Datasheet:
Description:
Fuses Holder / Clip Cartridge, Ceramic Cylindrical 6.3 A Voltage Rating (AC):250 V Voltage Rating (DC):250 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 20 mm |
| Termination | Clip |
| Diameter | 5 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 2 |
| Resistance | 10.8 mΩ |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Nickel |
| Contact Material(Contact Finish) | Brass |
| Type | Cartridge, Ceramic |
| Current Rating | 6.3 A |
| Working Voltage | 250 V |
| Approvals | CCC, CE, CSA, KC, PSE, SEMKO, UL, VDE |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Power Dissipation | 4 W |
| Body Material | Ceramic |
| Housing Material | Ceramic |
| Fuse Current | 6.3 A |
| Size | 5 mm x 20 mm |
| Body Style | Cylindrical |
Stock: 1026
Distributors
pcbx
pcbxUnit Price$0.12125
Ext.Price$0.12125
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.12125 | $0.12125 |
| 10 | $0.10869 | $1.08690 |
| 50 | $0.09744 | $4.87200 |
| 100 | $0.08690 | $8.69000 |
| 500 | $0.07750 | $38.75000 |
| 1000 | $0.07398 | $73.98000 |
| 3000 | $0.07062 | $211.86000 |
| 5000 | $0.06742 | $337.10000 |
