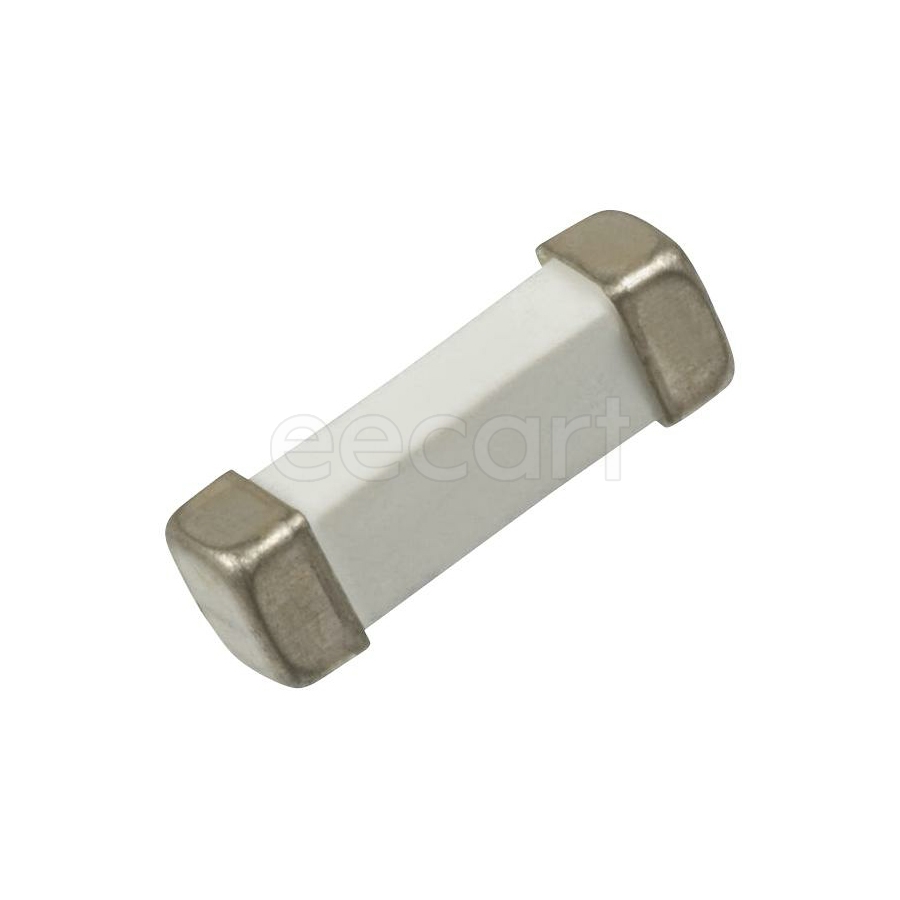

0451015.MRL
Manufacturer:
Littelfuse
Mfr.Part #:
0451015.MRL
Datasheet:
Description:
Fuses SMD/SMT Board Mount (Cartridge Style Excluded) 1.5 A Voltage Rating (AC):125 V Voltage Rating (DC):125 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 125 V |
| Length | 6.1 mm |
| Width | 2.69 mm |
| Termination | SMD/SMT |
| Diameter | 2.69 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 125 V |
| Number of Pins | 2 |
| Resistance | 63 mΩ |
| Height | 2.69 mm |
| Packaging | Reel |
| Voltage Rating | 65 V |
| Depth | 2.69 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Silver |
| Type | Board Mount (Cartridge Style Excluded) |
| Current Rating | 1.5 A |
| Working Voltage | 65 V |
| Approvals | CSA, PSE, UL |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Body Material | Ceramic |
| Terminal Material | Gold |
| Housing Material | Ceramic |
| Fuse Current | 1.5 A |
| Size | 0.240" L x 0.106" W x 0.106" H (6.10 mm x 2.69 mm x 2.69 mm) |
Stock: 24139
Distributors
pcbx
pcbxUnit Price$0.11558
Ext.Price$0.11558
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.11558 | $0.11558 |
| 10 | $0.10294 | $1.02940 |
| 50 | $0.09168 | $4.58400 |
| 100 | $0.08354 | $8.35400 |
| 500 | $0.07612 | $38.06000 |
| 1000 | $0.06936 | $69.36000 |
| 3000 | $0.06402 | $192.06000 |
| 5000 | $0.05909 | $295.45000 |
