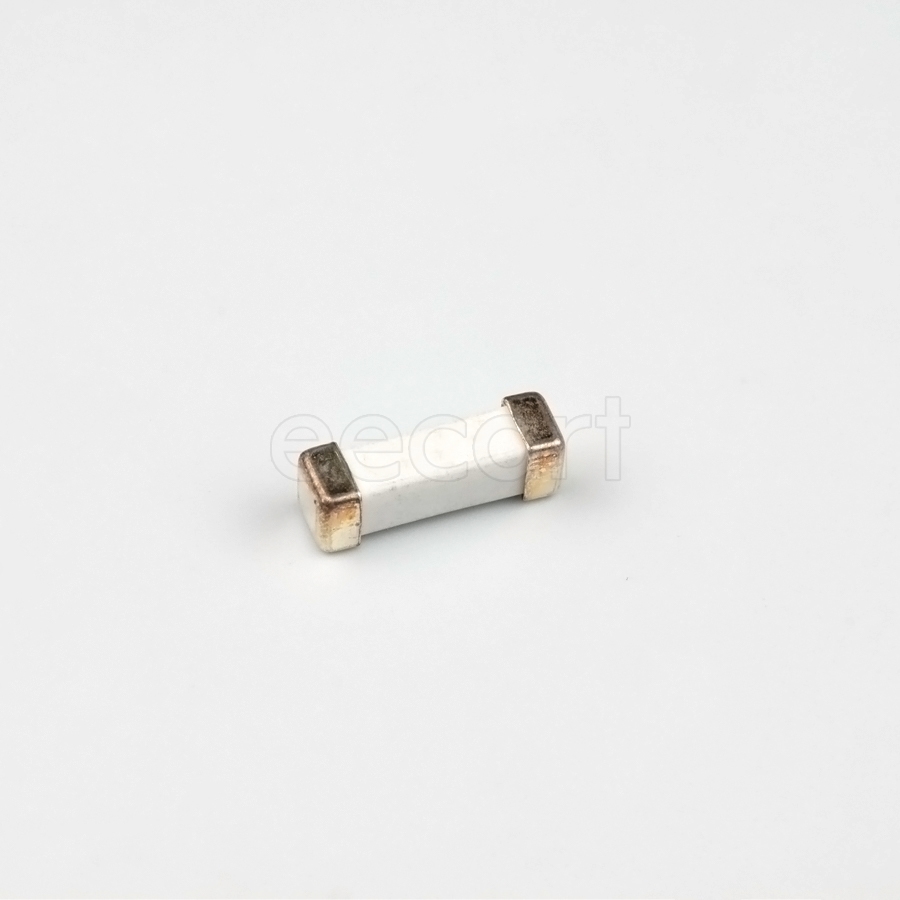

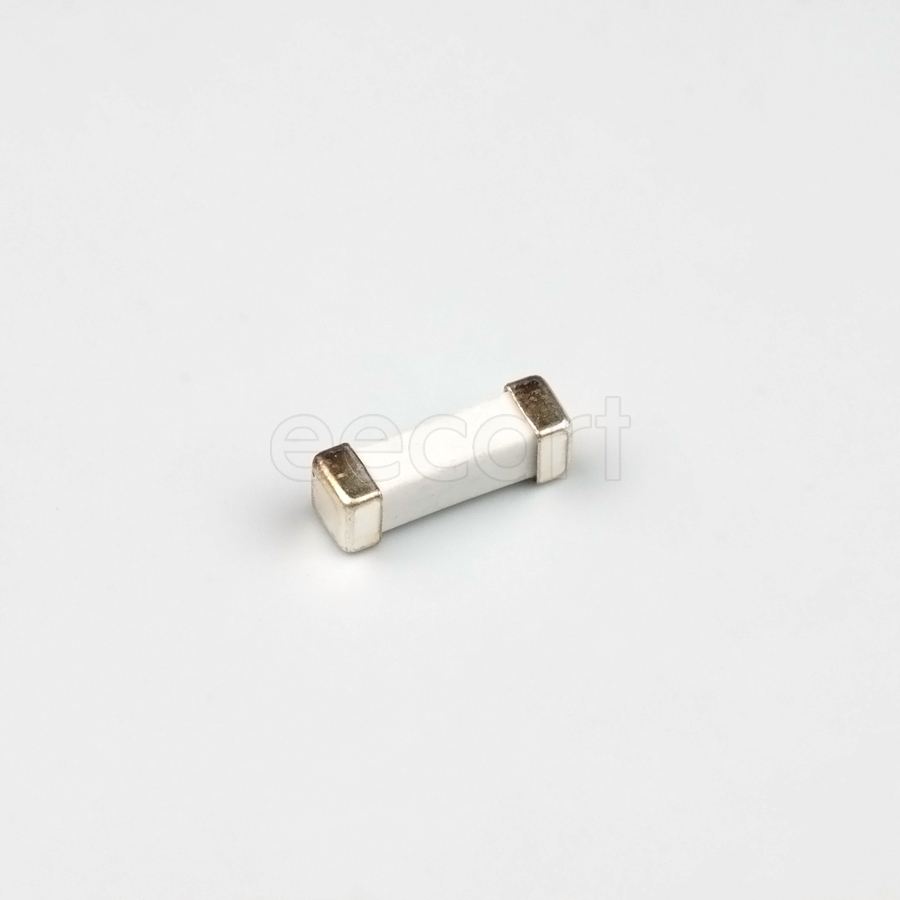

0452004.MRL
Manufacturer:
Littelfuse
Mfr.Part #:
0452004.MRL
Datasheet:
Description:
Fuses SMD/SMT Time Delay / Slow Blow 4 A Voltage Rating (AC):125 V Voltage Rating (DC):125 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 125 V |
| Length | 6.1 mm |
| Width | 2.69 mm |
| Termination | SMD/SMT |
| Diameter | 2.69 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 125 V |
| Number of Pins | 2 |
| Resistance | 18.6 mΩ |
| Height | 2.69 mm |
| Voltage Rating | 125 V |
| Depth | 2.69 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Current Rating | 4 A |
| Working Voltage | 125 V |
| Approvals | CSA, PSE, UL, UR |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Body Material | Ceramic |
| Terminal Material | Gold |
| Housing Material | Ceramic |
| Fuse Current | 4 A |
| Size | 0.240" L x 0.106" W x 0.106" H (6.10 mm x 2.69 mm x 2.69 mm) |
| Packaging | Reel |
| Type | Time Delay / Slow Blow |
Stock: 516
Distributors
pcbx
pcbxUnit Price$0.14237
Ext.Price$0.14237
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.14237 | $0.14237 |
| 10 | $0.12537 | $1.25370 |
| 50 | $0.11040 | $5.52000 |
| 100 | $0.09933 | $9.93300 |
| 500 | $0.08937 | $44.68500 |
| 1000 | $0.08041 | $80.41000 |
| 3000 | $0.07438 | $223.14000 |
| 5000 | $0.06880 | $344.00000 |
