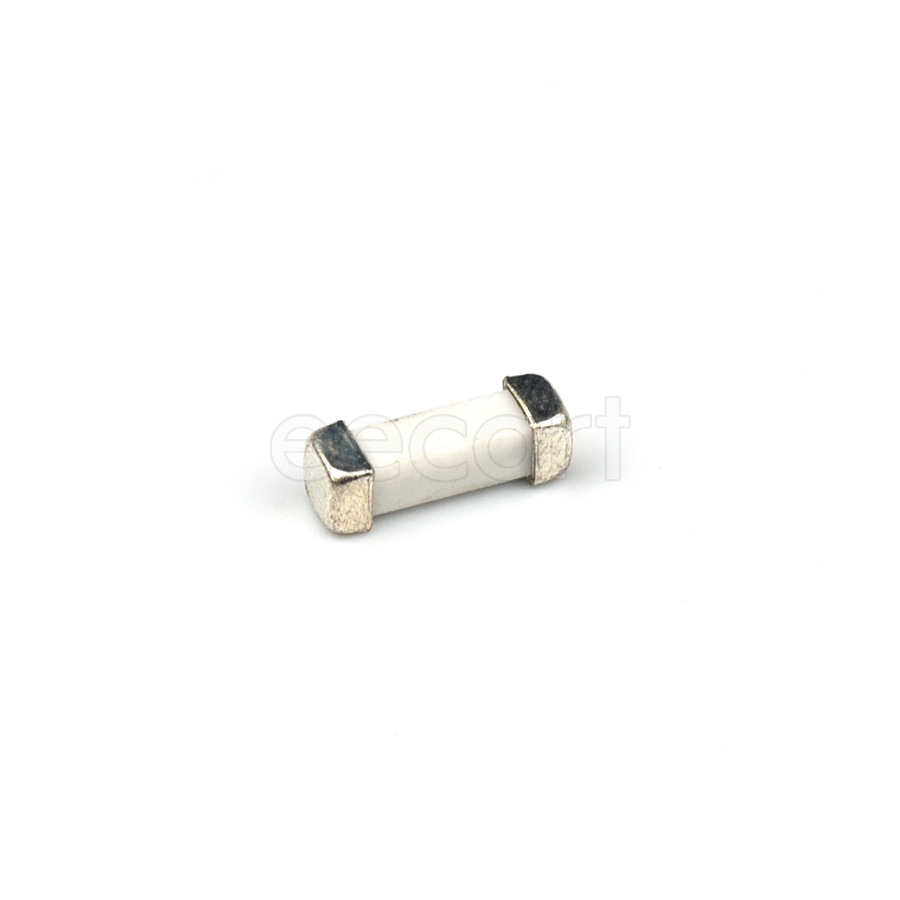

0461.500ER
Manufacturer:
Littelfuse
Mfr.Part #:
0461.500ER
Datasheet:
Description:
Fuses SMD/SMT Electrical 500 mA Voltage Rating (AC):600 V Voltage Rating (DC):80 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 80 V |
| Length | 10.1 mm |
| Width | 3.12 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 600 V |
| Number of Pins | 2 |
| Resistance | 560 mΩ |
| Height | 3.1242 mm |
| Voltage Rating | 600 V |
| Depth | 3.12 mm |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Type | Electrical |
| Current Rating | 500 mA |
| Approvals | CSA, UR |
| Body Material | Ceramic |
| Terminal Material | Silver |
| Housing Material | Ceramic |
| Fuse Current | 500 mA |
| Size | 0.398" L x 0.123" W x 0.123" H (10.10mm x 3.12mm x 3.12mm) |
| Packaging | Reel |
| RoHS | Compliant |
Stock: 1089
Distributors
pcbx
pcbxUnit Price$0.37805
Ext.Price$0.37805
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.37805 | $0.37805 |
| 10 | $0.30010 | $3.00100 |
| 25 | $0.27362 | $6.84050 |
| 50 | $0.24948 | $12.47400 |
| 100 | $0.22747 | $22.74700 |
| 300 | $0.21836 | $65.50800 |
| 500 | $0.20962 | $104.81000 |
| 1000 | $0.19769 | $197.69000 |
