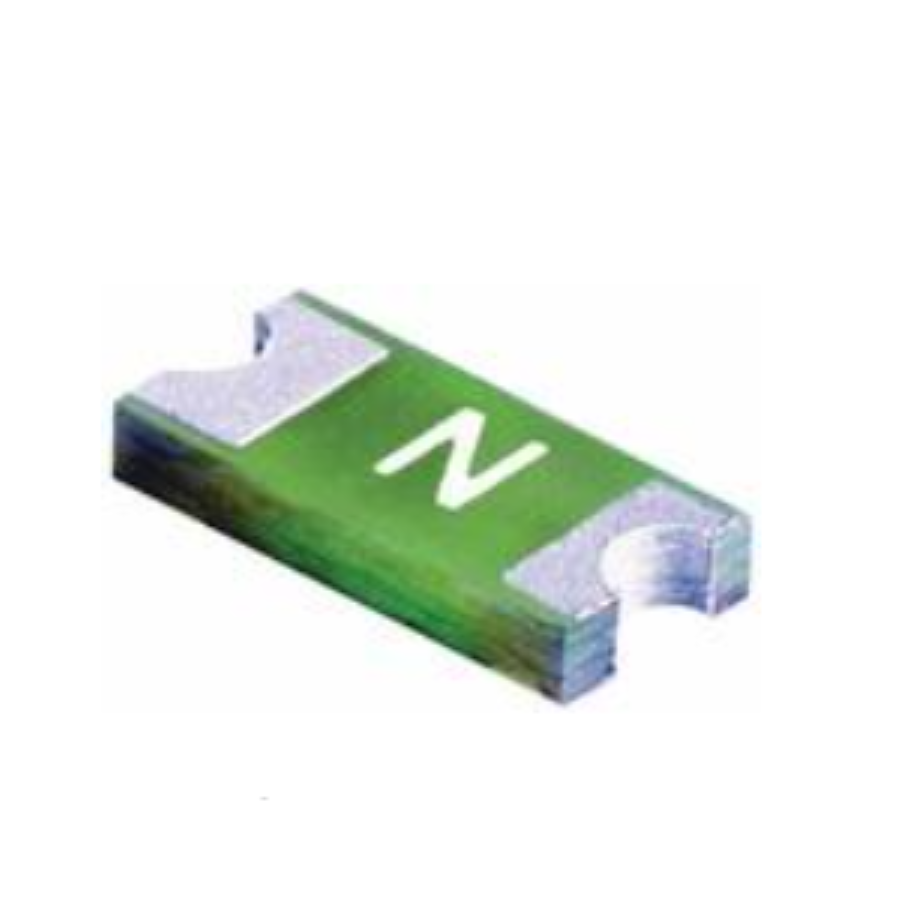

046602.5NRHF
Manufacturer:
Littelfuse
Mfr.Part #:
046602.5NRHF
Datasheet:
Description:
Fuses SMD/SMT Board Mount (Cartridge Style Excluded) 2.5 A Voltage Rating (AC):32 V Voltage Rating (DC):32 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 32 V |
| Length | 3.18 mm |
| Width | 1.524 mm |
| Max Operating Temperature | 90 °C |
| Min Operating Temperature | -55 °C |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Voltage Rating (AC) | 32 V |
| Resistance | 23 mΩ |
| Height | 584.2 µm |
| Voltage Rating | 32 V |
| Depth | 1.52 mm |
| Current Rating | 2.5 A |
| Working Voltage | 32 V |
| Approvals | CSA, UL, UR |
| Power Dissipation | 192.5 mW |
| Housing Material | Ceramic |
| Fuse Current | 2.5 A |
| Size | 0.125" L x 0.060" W x 0.023" H (3.18 mm x 1.52 mm x 0.58 mm) |
| Type | Board Mount (Cartridge Style Excluded) |
| RoHS | Compliant |
| Packaging | Reel |
Stock: 2898
Distributors
pcbx
pcbxUnit Price$0.12422
Ext.Price$0.12422
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.12422 | $0.12422 |
| 10 | $0.06211 | $0.62110 |
| 50 | $0.05516 | $2.75800 |
| 100 | $0.04899 | $4.89900 |
| 500 | $0.04260 | $21.30000 |
| 1000 | $0.03705 | $37.05000 |
| 3000 | $0.03508 | $105.24000 |
| 5000 | $0.03322 | $166.10000 |
| 10000 | $0.03116 | $311.60000 |
