2N6075AG
Manufacturer:
Littelfuse
Mfr.Part #:
2N6075AG
Datasheet:
Description:

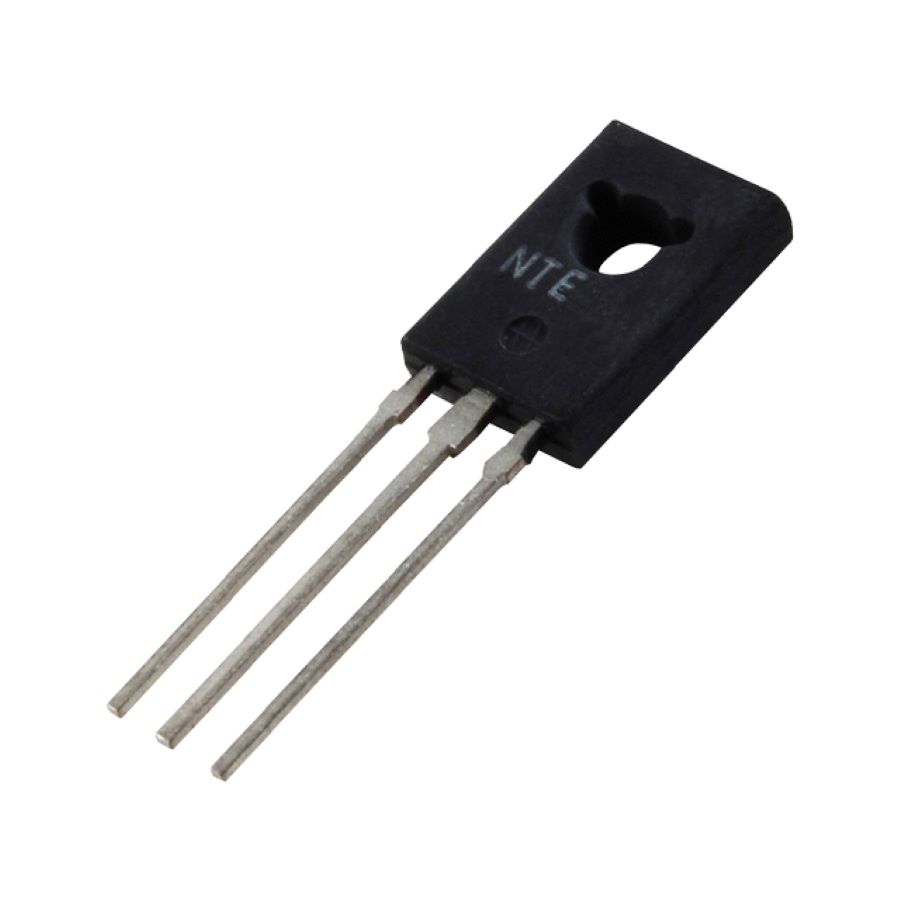

TRIACs TO-225AA Through Hole On-State Current:4 A On-State Voltage:2 V Peak Non-Repetitive Surge Current:30 A Rated Repetitive Off-State Voltage VDRM:600 V Hold Current:15 mA
| Parameter | Value |
|---|---|
| Max Operating Temperature | 110 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| RoHS | Compliant |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Hold Current | 15 mA |
| RMS Current (Irms) | 4 A |
| Current - Gate Trigger (Igt) (Max) | 5 mA |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5 V |
| Peak Non-Repetitive Surge Current | 30 A |
| Schedule B | 8541300080 |
| Rated Repetitive Off-State Voltage VDRM | 600 V |
| On-State Voltage | 2 V |
| Off-State Leakage Current @ VDRM IDRM | 10 µA |
| On-State Current | 4 A |
Stock: 2785
Distributors
pcbx
pcbxUnit Price$0.98203
Ext.Price$0.98203
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.98203 | $0.98203 |
| 10 | $0.62130 | $6.21300 |
| 25 | $0.54267 | $13.56675 |
| 50 | $0.47399 | $23.69950 |
| 100 | $0.41400 | $41.40000 |
| 300 | $0.36690 | $110.07000 |
| 500 | $0.32516 | $162.58000 |
| 1000 | $0.29655 | $296.55000 |
| 3000 | $0.27034 | $811.02000 |
| 5000 | $0.24645 | $1232.25000 |
| 10000 | $0.23181 | $2318.10000 |
