37200400431
Manufacturer:
Littelfuse
Mfr.Part #:
37200400431
Datasheet:
Description:

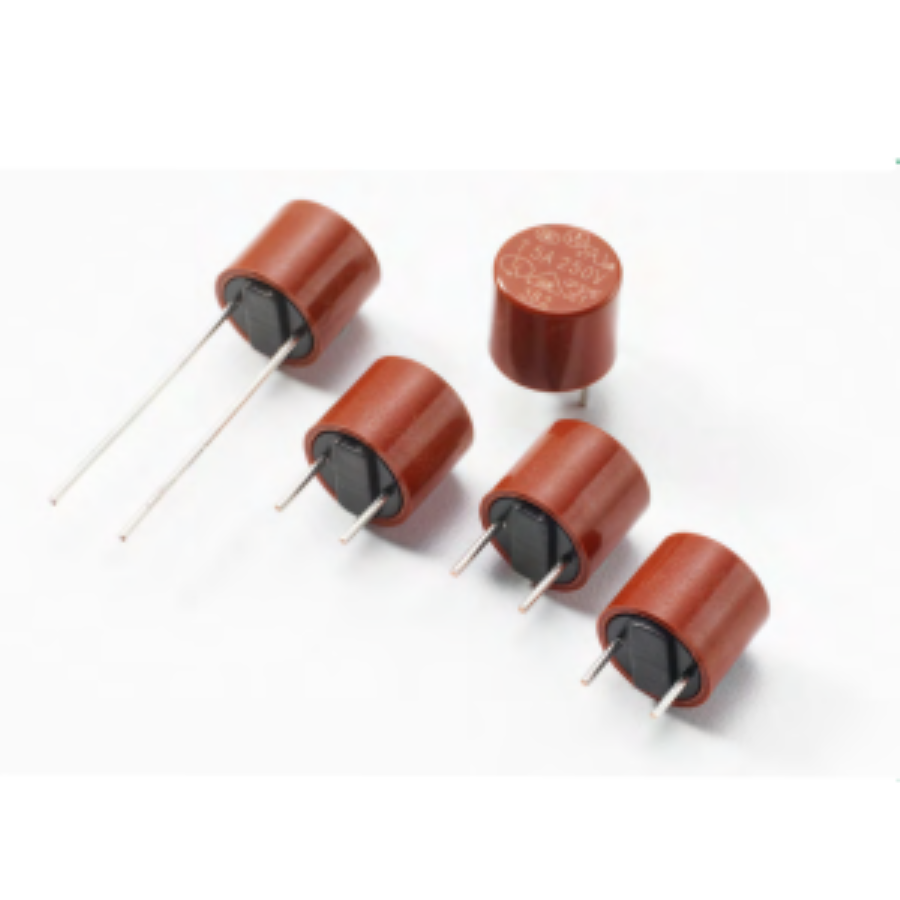

Fuses Through Hole Time Delay / Slow Blow Leaded Fuses 40 mA Voltage Rating (AC):250 V
| Parameter | Value |
|---|---|
| Length | 8.001 mm |
| Termination | Radial |
| Diameter | 8.5 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Resistance | 10.165 Ω |
| Height | 8.001 mm |
| Packaging | Bulk |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lead Pitch | 5.08 mm |
| REACH SVHC | No SVHC |
| Lead Length | 4.3 mm |
| Type | Time Delay / Slow Blow |
| Current | 40 mA |
| Current Rating | 40 mA |
| Working Voltage | 250 V |
| Flammability Rating | UL94V-0 |
| Approvals | CCC, UR, cULus |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Power Dissipation | 90 mW |
| Body Material | Polyamide, Thermoplastic |
| Fuse Current | 40 mA |
| Size | 8.50 mm x 8.00 mm |
| Body Style | Leaded Fuses |
Stock: 494
Distributors
pcbx
pcbxUnit Price$0.92931
Ext.Price$0.92931
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.92931 | $0.92931 |
| 10 | $0.71387 | $7.13870 |
| 25 | $0.64799 | $16.19975 |
| 50 | $0.58819 | $29.40950 |
| 100 | $0.50099 | $50.09900 |
| 300 | $0.46547 | $139.64100 |
| 500 | $0.43247 | $216.23500 |
| 1000 | $0.40182 | $401.82000 |
