DST10100S-A
Manufacturer:
Littelfuse
Mfr.Part #:
DST10100S-A
Datasheet:
Description:

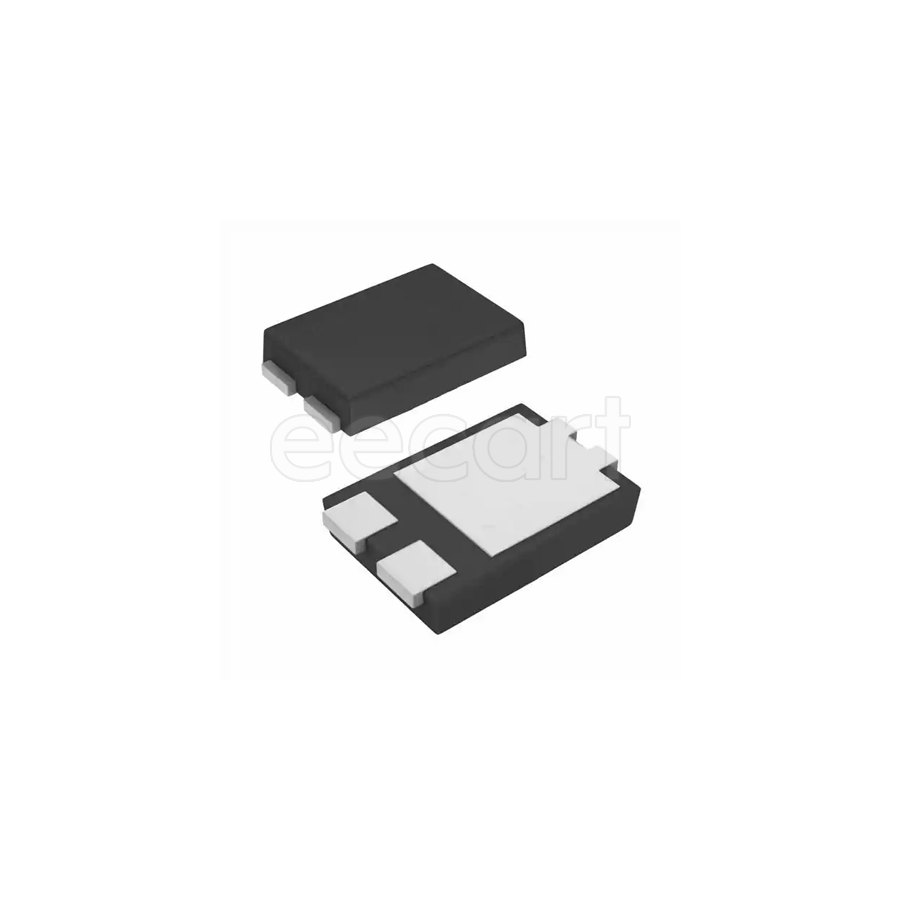

Schottky Diodes TO-277B SMD/SMT Single Forward Current:10 A Forward Voltage:700 mV Max Repetitive Reverse Voltage (Vrrm):100 V Max Forward Surge Current (Ifsm):150 A
| Parameter | Value |
|---|---|
| Packaging | Reel |
| RoHS | Compliant |
| Forward Current | 10 A |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Forward Surge Current (Ifsm) | 150 A |
| Schedule B | 8541100080 |
| Max Repetitive Reverse Voltage (Vrrm) | 100 V |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Reverse Current | 250 µA |
| Forward Voltage | 700 mV |
| Element Configuration | Single |
Stock: 10711
Distributors
pcbx
pcbxUnit Price$0.98488
Ext.Price$0.98488
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.98488 | $0.98488 |
| 10 | $0.67112 | $6.71120 |
| 25 | $0.61395 | $15.34875 |
| 50 | $0.56165 | $28.08250 |
| 100 | $0.51381 | $51.38100 |
| 300 | $0.45775 | $137.32500 |
| 500 | $0.40780 | $203.90000 |
| 1000 | $0.34368 | $343.68000 |
| 3000 | $0.32478 | $974.34000 |
| 5000 | $0.30692 | $1534.60000 |
| 10000 | $0.30692 | $3069.20000 |
