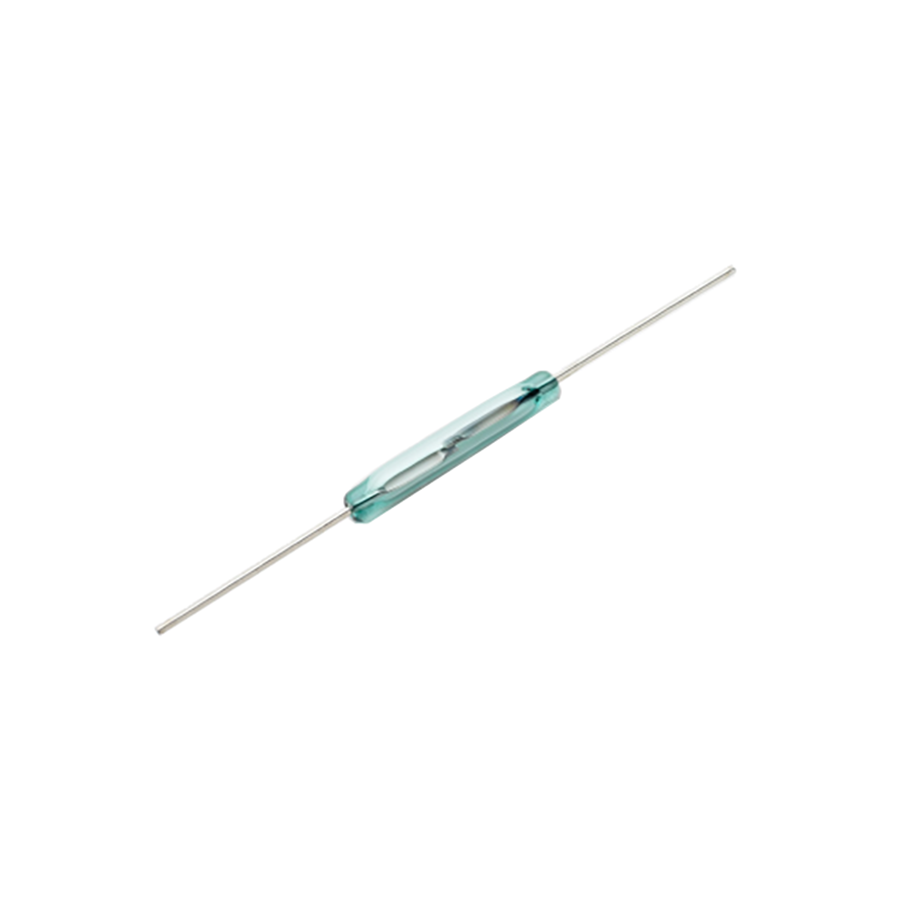

MDCG-4-27-33
Manufacturer:
Littelfuse
Mfr.Part #:
MDCG-4-27-33
Datasheet:
Description:
Switches PCB Voltage Rating (AC):140 V
| Parameter | Value |
|---|---|
| Capacitance | 200 fF |
| Length | 40.38 mm |
| Termination | Axial |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 140 V |
| Power Rating | 10 W |
| Packaging | Bulk |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Max Current Rating | 500 mA |
| Max Voltage Rating (DC) | 200 V |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Throw Configuration | SPST |
| Contact Resistance | 100 mΩ |
| Illumination Type | Non-Illuminated |
| Operate Time | 600 µs |
| Release Time | 200 µs |
| Termination Style | Axial |
Stock: 213
Distributors
pcbx
pcbxUnit Price$0.96406
Ext.Price$0.96406
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.96406 | $0.96406 |
| 10 | $0.94242 | $9.42420 |
| 25 | $0.85724 | $21.43100 |
| 50 | $0.83696 | $41.84800 |
| 100 | $0.82382 | $82.38200 |
| 300 | $0.81350 | $244.05000 |
| 500 | $0.80332 | $401.66000 |
| 1000 | $0.78146 | $781.46000 |
