S6016NRP
Manufacturer:
Littelfuse
Mfr.Part #:
S6016NRP
Datasheet:
Description:

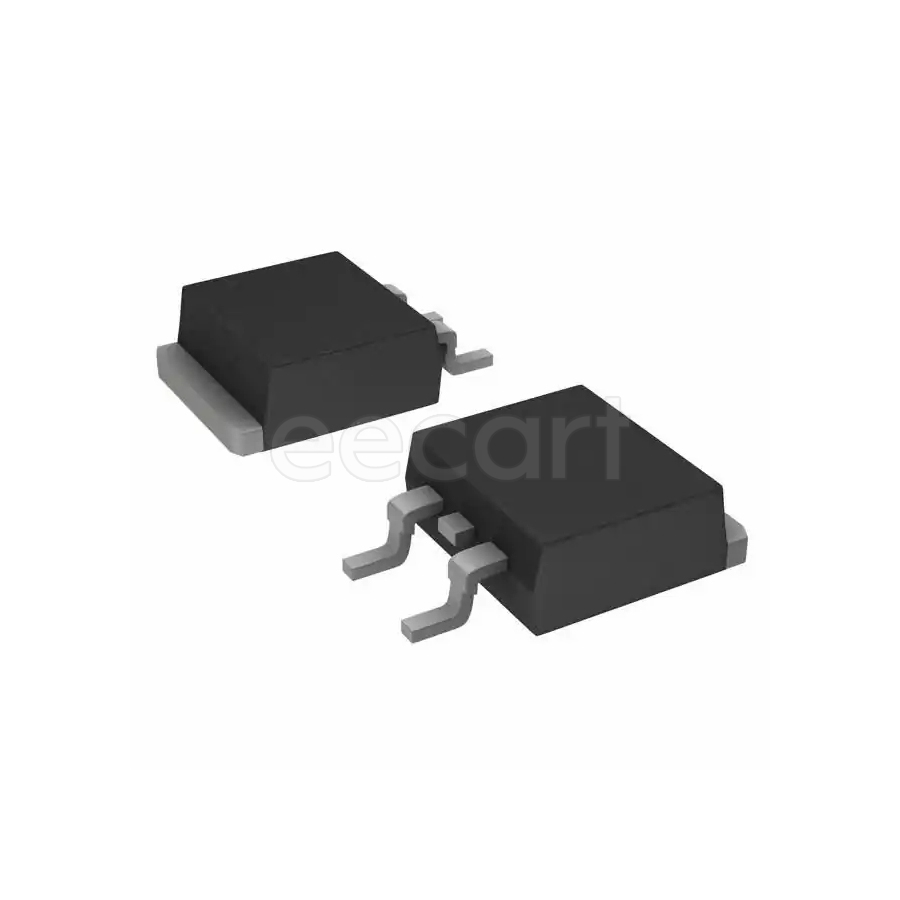

SCRs TO-263-3 SMD/SMT Breakover Current IBO Max:225 A Rated Repetitive Off-State Voltage VDRM:600 V Off-State Leakage Current @ VDRM IDRM:10 µA Hold Current:40 mA Forward Voltage:1.6 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 600 V |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 3 |
| Current Rating | 10 A |
| Number of Contacts | 2 |
| Hold Current | 40 mA |
| RMS Current (Irms) | 16 A |
| Rated Repetitive Off-State Voltage VDRM | 600 V |
| Breakover Current IBO Max | 225 A |
| Off-State Leakage Current @ VDRM IDRM | 10 µA |
| On-State RMS Current - It RMS | 16 A |
| Gate Trigger Current - Igt | 30 mA |
| Forward Voltage | 1.6 V |
| Packaging | Reel |
| RoHS | Compliant |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V |
Stock: 760
Distributors
pcbx
pcbxUnit Price$2.15271
Ext.Price$2.15271
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.15271 | $2.15271 |
| 10 | $1.40807 | $14.08070 |
| 25 | $1.24882 | $31.22050 |
| 50 | $1.10758 | $55.37900 |
| 100 | $0.98231 | $98.23100 |
| 300 | $0.87994 | $263.98200 |
| 500 | $0.78824 | $394.12000 |
| 1000 | $0.78226 | $782.26000 |
