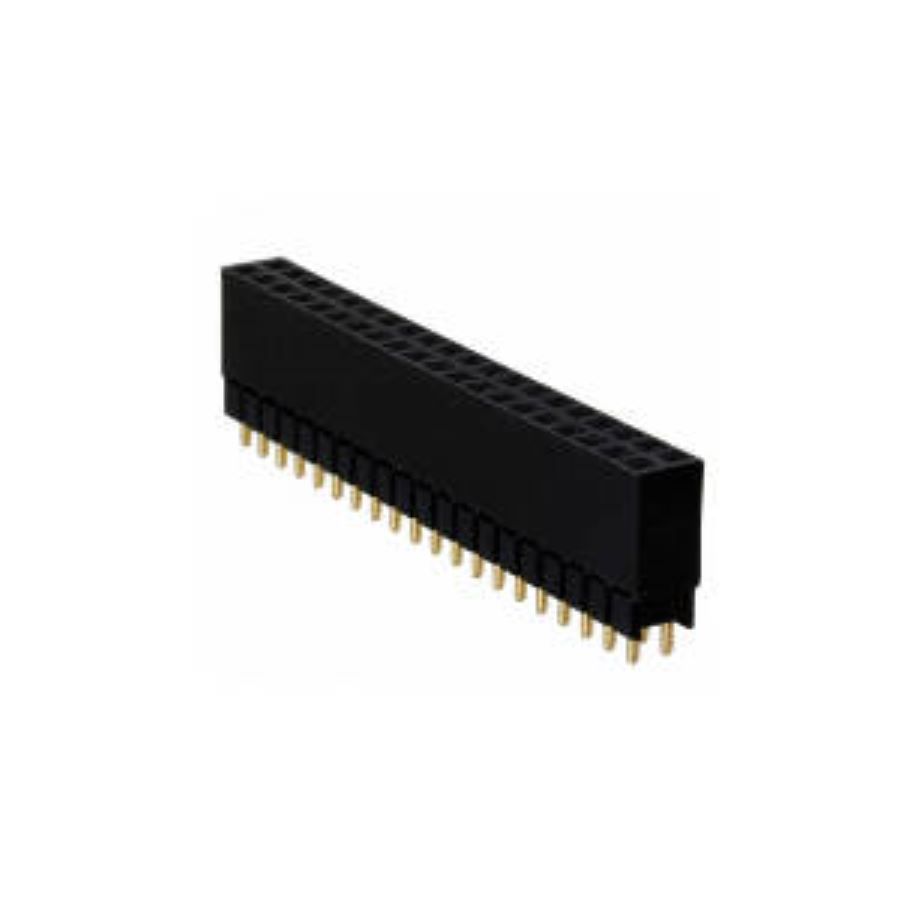

M20-6112045
Manufacturer:
Harwin
Mfr.Part #:
M20-6112045
Datasheet:
Description:
Backplane Connectors Through Hole Number of Positions:40 Number of Rows:2 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 51.46 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tube |
| Depth | 5.25 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 5 GΩ |
| REACH SVHC | No SVHC |
| Weight | 4.894007 g |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | Black |
| Gender | Receptacle |
| Number of Contacts | 40 |
| Connector Type | Non-Stackthrough, (PC/104) |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Housing Material | Nylon |
| Contact Resistance | 30 mΩ |
| Housing Color | Black |
Stock: 122
Distributors
pcbx
pcbxUnit Price$3.09143
Ext.Price$3.09143
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.09143 | $3.09143 |
| 10 | $2.86496 | $28.64960 |
| 25 | $2.65508 | $66.37700 |
| 50 | $2.46057 | $123.02850 |
| 100 | $2.28031 | $228.03100 |
| 300 | $2.11326 | $633.97800 |
| 500 | $1.95844 | $979.22000 |
| 1000 | $1.81501 | $1815.01000 |
