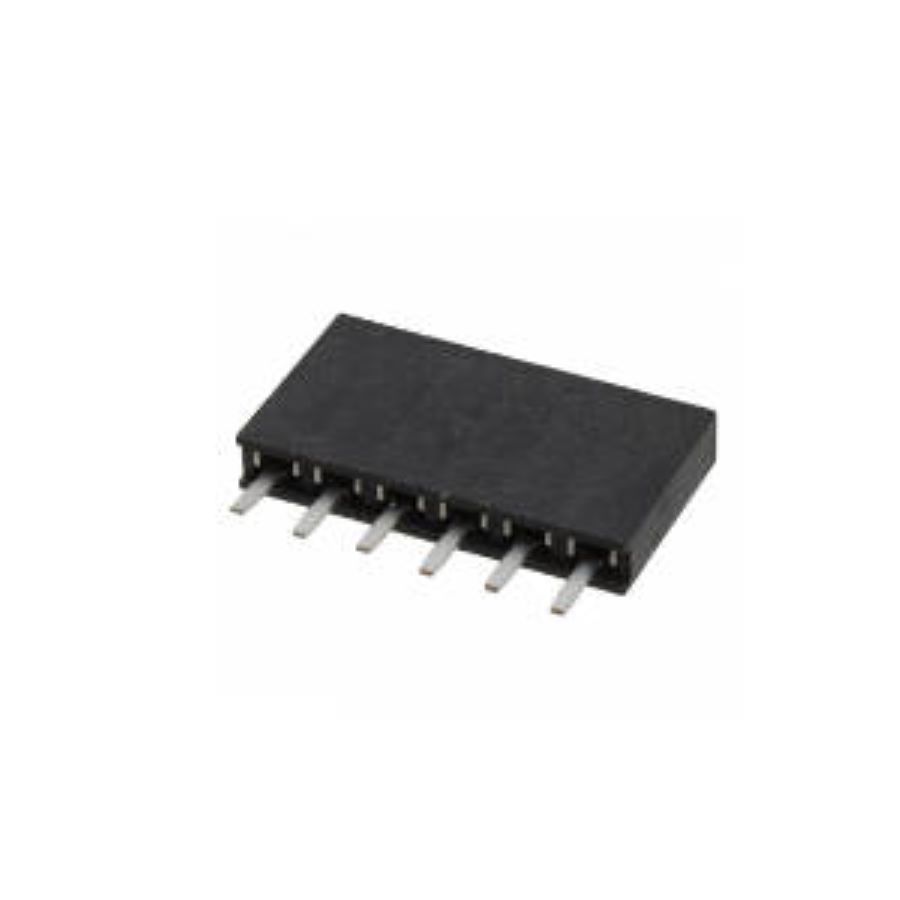

M20-7820646
Manufacturer:
Harwin
Mfr.Part #:
M20-7820646
Datasheet:
Description:
Headers and Wire Housings Through Hole Receptacle Number of Positions:6 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 15.64 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Tube |
| Depth | 2.5 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Max Current Rating | 3 A |
| Orientation | Straight |
| Color | Black |
| Gender | Female |
| Number of Contacts | 6 |
| Connector Type | Receptacle |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Housing Color | Black |
| Contact Gender | Female |
Stock: 3477
Distributors
pcbx
pcbxUnit Price$0.69506
Ext.Price$0.69506
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.69506 | $0.69506 |
| 10 | $0.66343 | $6.63430 |
| 25 | $0.54117 | $13.52925 |
| 50 | $0.51640 | $25.82000 |
| 100 | $0.49276 | $49.27600 |
| 300 | $0.47020 | $141.06000 |
| 500 | $0.44868 | $224.34000 |
| 1000 | $0.42814 | $428.14000 |
| 3000 | $0.40854 | $1225.62000 |
| 5000 | $0.38985 | $1949.25000 |
