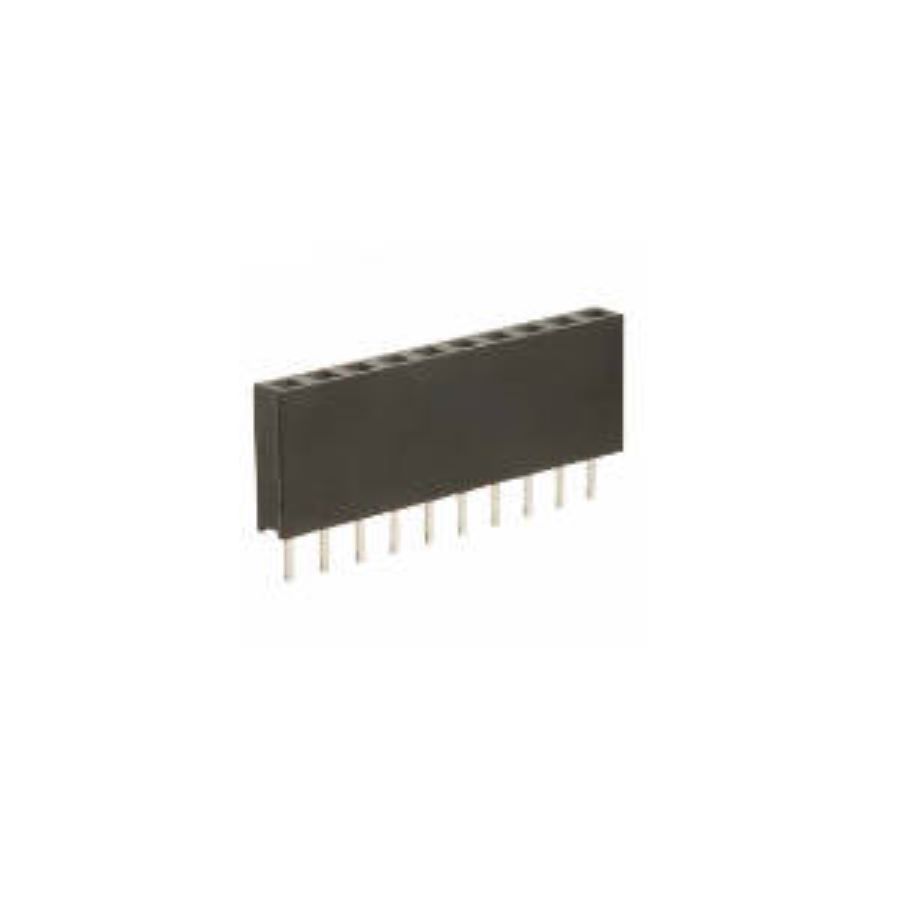

M20-7821446
Manufacturer:
Harwin
Mfr.Part #:
M20-7821446
Datasheet:
Description:
Headers and Wire Housings Through Hole Receptacle Number of Positions:14 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 35.96 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Tube |
| Depth | 2.5 mm |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Max Current Rating | 3 A |
| Orientation | Straight |
| Color | Black |
| Gender | Female |
| Connector Type | Receptacle |
| Number of Positions | 14 |
| Number of Rows | 1 |
| Housing Material | Polyamide |
| Contact Resistance | 20 mΩ |
| Housing Color | Black |
| Contact Gender | Female |
Stock: 787
Distributors
pcbx
pcbxUnit Price$1.06980
Ext.Price$1.06980
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.06980 | $1.06980 |
| 10 | $1.00249 | $10.02490 |
| 25 | $0.93942 | $23.48550 |
| 50 | $0.88032 | $44.01600 |
| 100 | $0.82493 | $82.49300 |
| 300 | $0.77303 | $231.90900 |
| 500 | $0.72439 | $362.19500 |
| 1000 | $0.67881 | $678.81000 |
| 3000 | $0.63610 | $1908.30000 |
| 5000 | $0.59608 | $2980.40000 |
| 10000 | $0.55856 | $5585.60000 |
