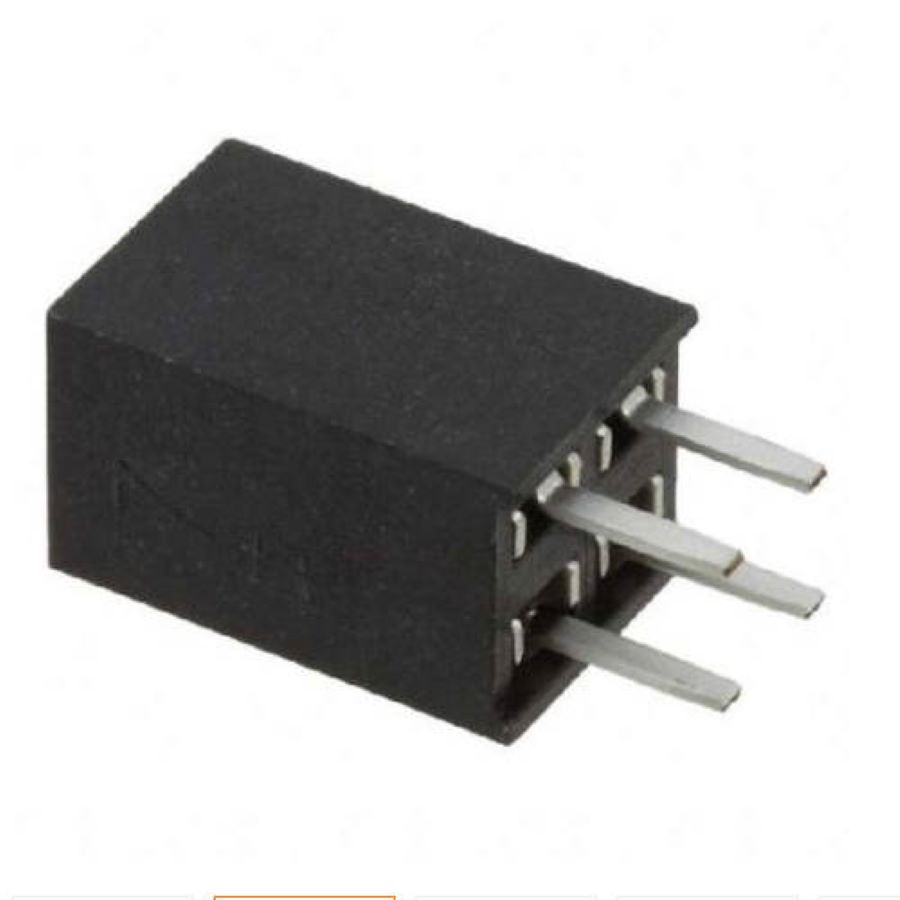

M20-7830246
Manufacturer:
Harwin
Mfr.Part #:
M20-7830246
Datasheet:
Description:
Headers and Wire Housings Through Hole Receptacle Number of Positions:4 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 5.48 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Tube |
| Depth | 5.04 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 1 MΩ |
| REACH SVHC | No SVHC |
| Weight | 0.381 g |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Orientation | Straight |
| Color | Black |
| Gender | Receptacle |
| Number of Contacts | 4 |
| Hole Diameter | 800 µm |
| Connector Type | Receptacle |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polyamide |
| Contact Resistance | 20 mΩ |
| Housing Color | Black |
| Contact Gender | Female |
Stock: 973
Distributors
pcbx
pcbxUnit Price$0.67625
Ext.Price$0.67625
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.67625 | $0.67625 |
| 10 | $0.57110 | $5.71100 |
| 25 | $0.53067 | $13.26675 |
| 50 | $0.49311 | $24.65550 |
| 100 | $0.45820 | $45.82000 |
| 300 | $0.42577 | $127.73100 |
| 500 | $0.39563 | $197.81500 |
| 1000 | $0.36762 | $367.62000 |
