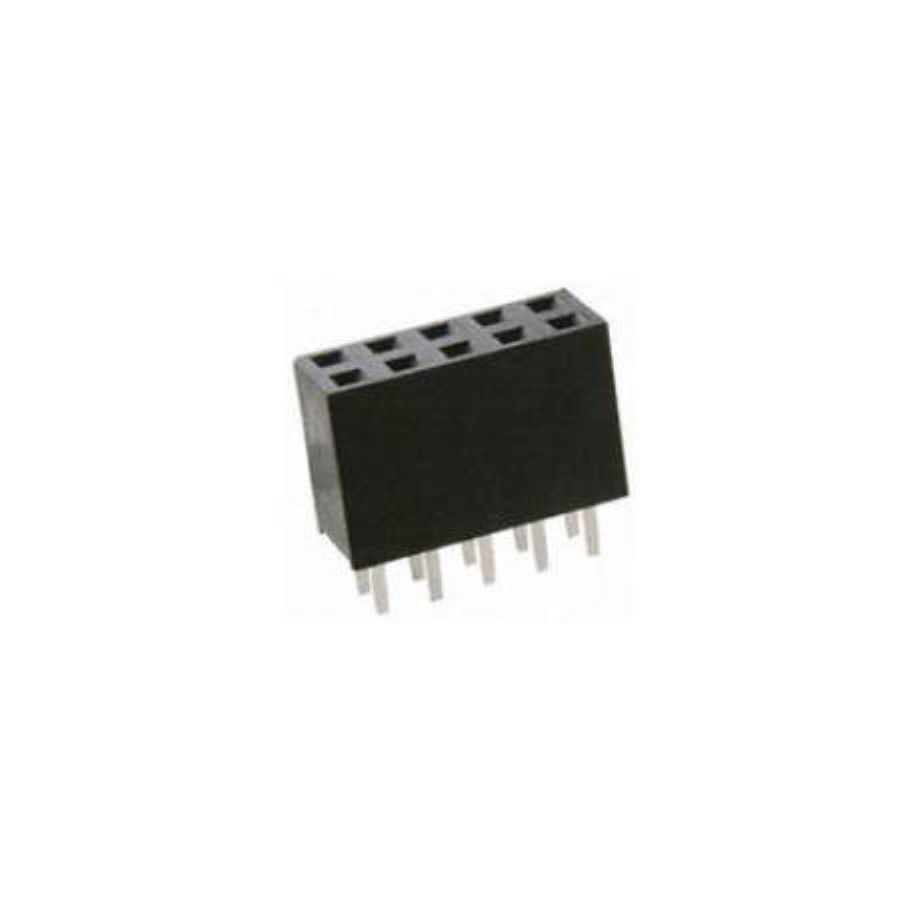

M20-7830346
Manufacturer:
Harwin
Mfr.Part #:
M20-7830346
Datasheet:
Description:
Headers and Wire Housings Through Hole Receptacle Number of Positions:6 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 8.02 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Tube |
| Depth | 5 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 1 MΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Orientation | Straight |
| Color | Black |
| Gender | Receptacle |
| Number of Contacts | 6 |
| Hole Diameter | 800 µm |
| Connector Type | Receptacle |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Housing Color | Black |
| Contact Gender | Female |
Stock: 6288
Distributors
pcbx
pcbxUnit Price$0.80727
Ext.Price$0.80727
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.80727 | $0.80727 |
| 10 | $0.75650 | $7.56500 |
| 25 | $0.70892 | $17.72300 |
| 50 | $0.66434 | $33.21700 |
| 100 | $0.62256 | $62.25600 |
| 300 | $0.58341 | $175.02300 |
| 500 | $0.54672 | $273.36000 |
| 1000 | $0.51234 | $512.34000 |
| 3000 | $0.48012 | $1440.36000 |
| 5000 | $0.44993 | $2249.65000 |
| 10000 | $0.42162 | $4216.20000 |
