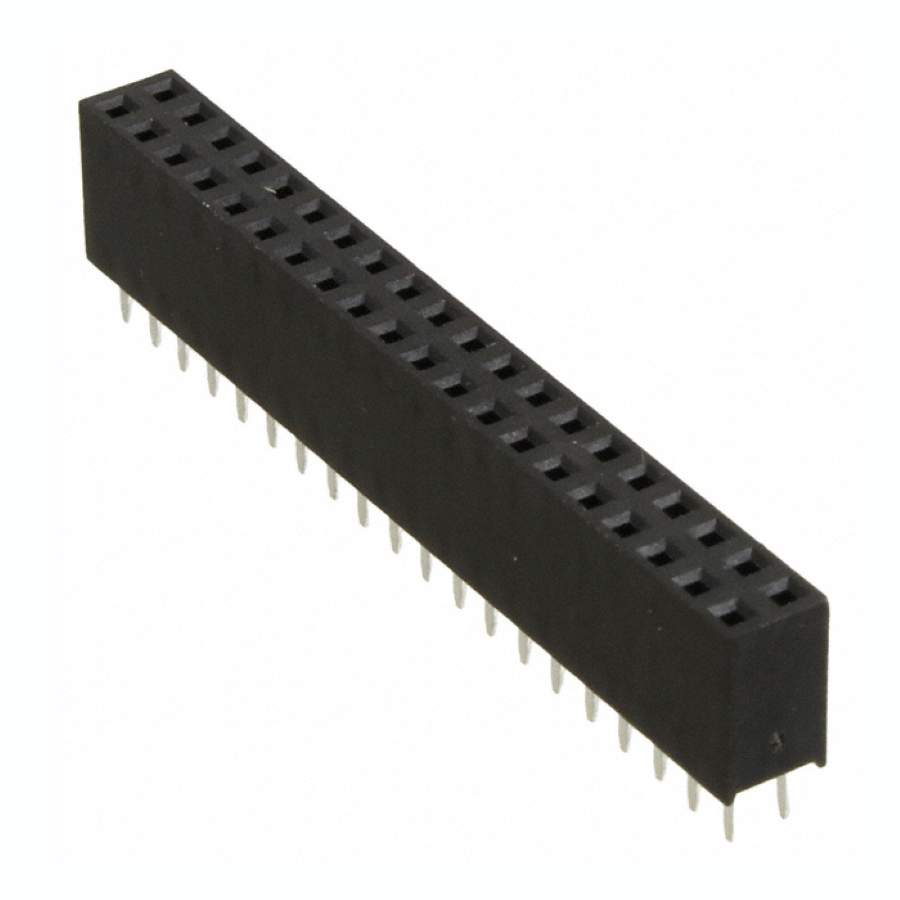

M20-7832046
Manufacturer:
Harwin
Mfr.Part #:
M20-7832046
Datasheet:
Description:
Headers and Wire Housings Through Hole Receptacle Number of Positions:40 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 51.2 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Material | Glass, Polyester |
| Packaging | Tube |
| Depth | 5.04 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 1 MΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Orientation | Straight |
| Color | Black |
| Gender | Receptacle |
| Number of Contacts | 40 |
| Hole Diameter | 800 µm |
| Connector Type | Receptacle |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polyamide |
| Contact Resistance | 20 mΩ |
| Housing Color | Black |
| Contact Gender | Female |
Stock: 199
Distributors
pcbx
pcbxUnit Price$2.30318
Ext.Price$2.30318
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.30318 | $2.30318 |
| 10 | $2.14683 | $21.46830 |
| 25 | $2.00109 | $50.02725 |
| 50 | $1.86524 | $93.26200 |
| 100 | $1.73862 | $173.86200 |
| 300 | $1.62059 | $486.17700 |
| 500 | $1.51057 | $755.28500 |
| 1000 | $1.40807 | $1408.07000 |
